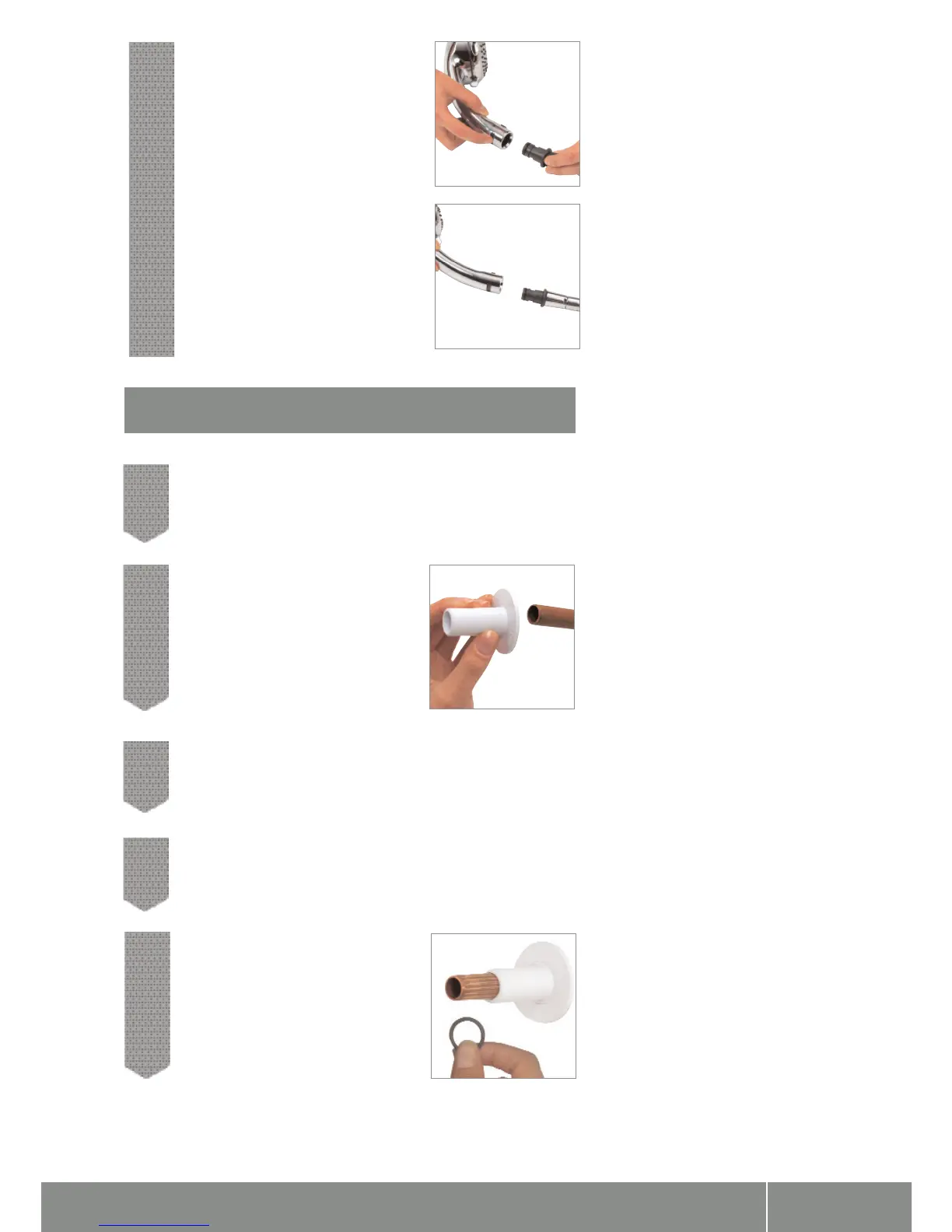

Visage Digital concealed installation instuctions page 13
Cut the outlet pipe to the finished length (55mm – 150mm measured from
the finished wall surface) using a rotary type cutter.
1
Ensure the pipe is clean and free of dust and
slide the fixing bush onto the pipe flush with
the finished wall surface.
2
Slide the fixed head arm over the fixing bush flush with the finished wall
surface and mark the four fixing points.
3
Carefully remove the fixed head arm and drill and prepare the fixings using
the fixings provided, if suitable.
4
Ensuring the fixing bush is clean and free
of dust, fit the 15mm O ring against the end
of the fixing bush. Lubricate the O ring using
a suitable silicone based lubricant.
5
Disengage the pivot clip and remove the
pivot from the bottom of the handset.
Ensure the hose washer is in the correct
position and screw the pivot into the hose,
using a suitable hexagonal key to tighten,
taking care not to over-tighten.
Reinsert the pivot into the handset and
engaged the pivot clip prior to placing the
handset into the handset holder.
15
Fixed head
