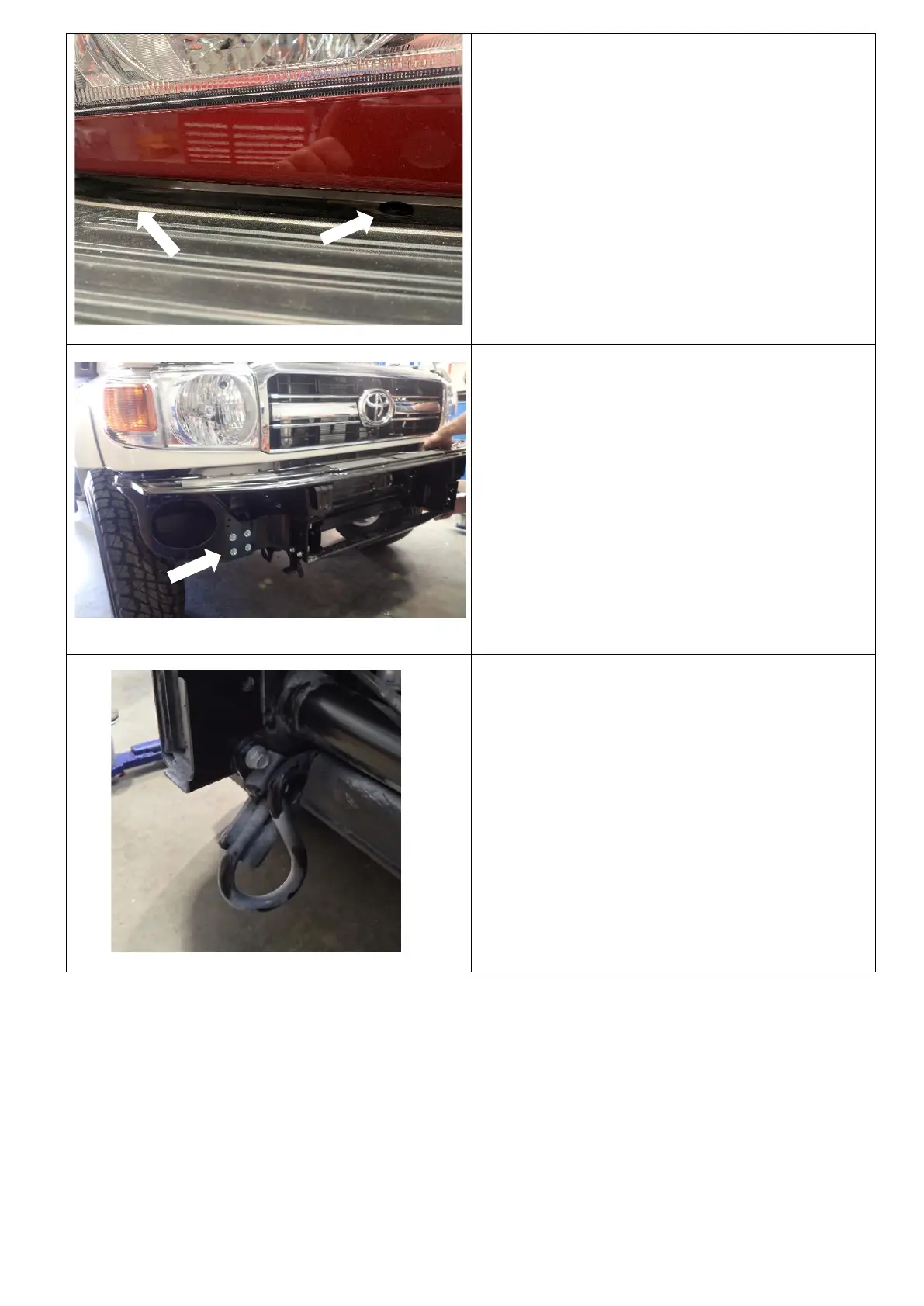

4. Remove five plastic clips on the top
face of the bumper cover and remove
bumper.
5. If vehicle is fitted with factory fog
lights remove loom and lights before
discarding bumper.
6. Remove four hex bolts from the top of
the steel bumper structure over each
chassis rail.
7. Remove four M10 hex bolts on each
side of the bumper bar and remove
the steel support structure.
8. Remove M12 chassis bolts and
remove chassis crush cans
9. Remove four hex bolts holding the
plastic stone shield. Retain the stone
shield and the retaining bolts.
10. Remove bolt on tow hook. Retain the
tow hook and bolts.
