Revision Date – 22/12/2014 page 31

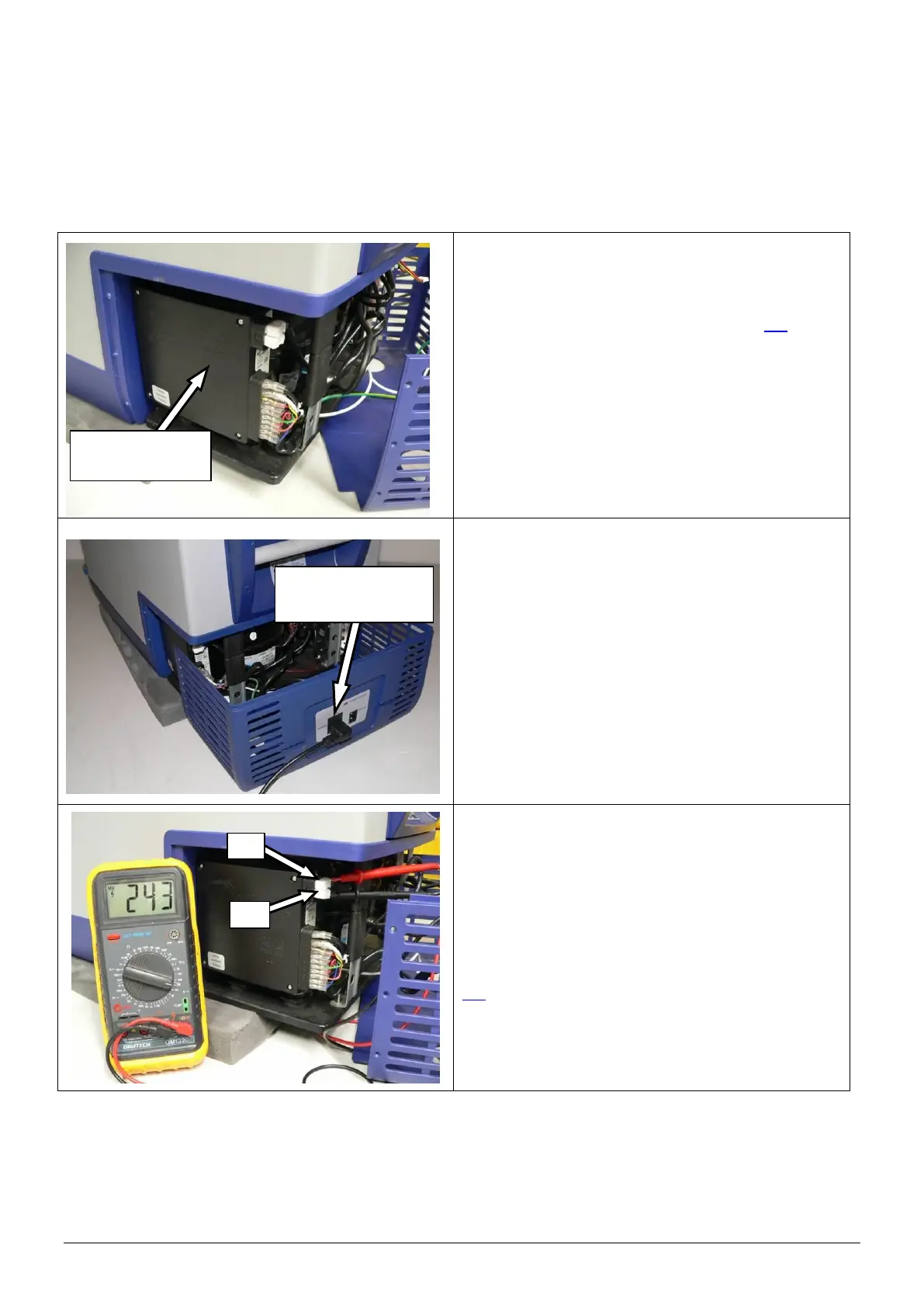

8.4 Test compressor control unit – 100-240V AC
WARNING: This test should only be performed by a licensed electrician.
Purpose: To verify the correct operation of the AC power section of the compressor control unit.
Procedure: See below.
Disconnect all power leads from the back of the
fridge.
Remove the rear cover (refer to section 9.2).
Identify the compressor control unit.
Apply 100-240V AC power to the fridge via the
power socket in the back of the fridge.
Using an AC voltmeter, check that 100-240V AC
power is measured between the live “L” and
neutral “N” terminals on the compressor control
unit.
If no AC power is detected between terminals “L”
and “N” check the device fuse, the AC power
supply and the main circuit board (refer to section
8.3).
NOTE: There may be small variation above or
below 100-240V AC depending on the
AC supply voltage.
Connection to
100-240V AC
To Next Page
