ARB 47L - Cabinet hinge assembly- Service

Revision Date – 22/12/2014 page 67

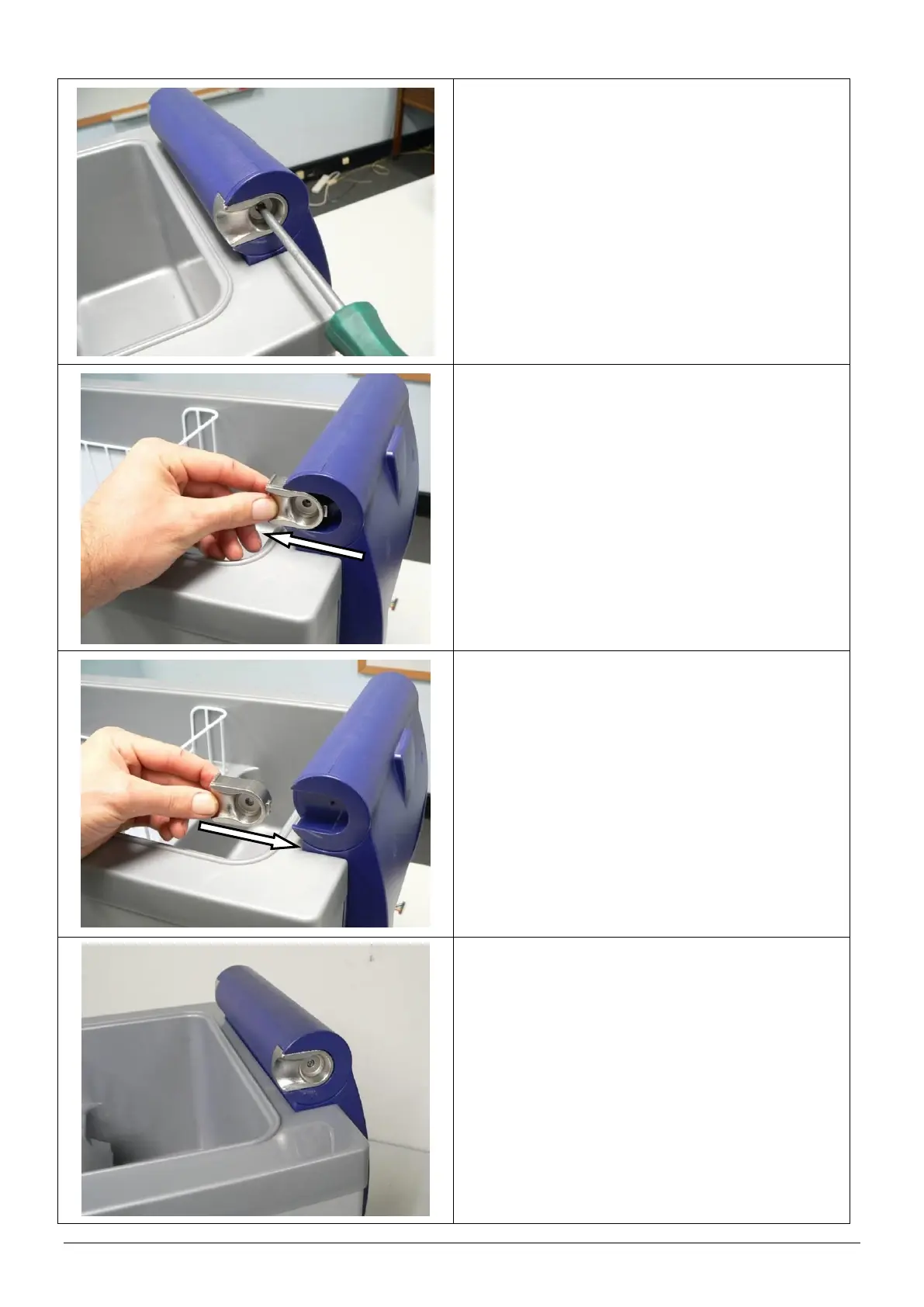

9.21 Cabinet hinge assembly- Service
Remove one screw from the centre of the hinge
socket as shown.
Remove the hinge socket by sliding it towards the
front of the fridge as shown.
Insert the new hinge socket into the rear handle
assembly as shown.
Fasten the hinge socket to the handle assembly
using the original screw.
