9.12 Plug fuse (12/24V DC)- Replace

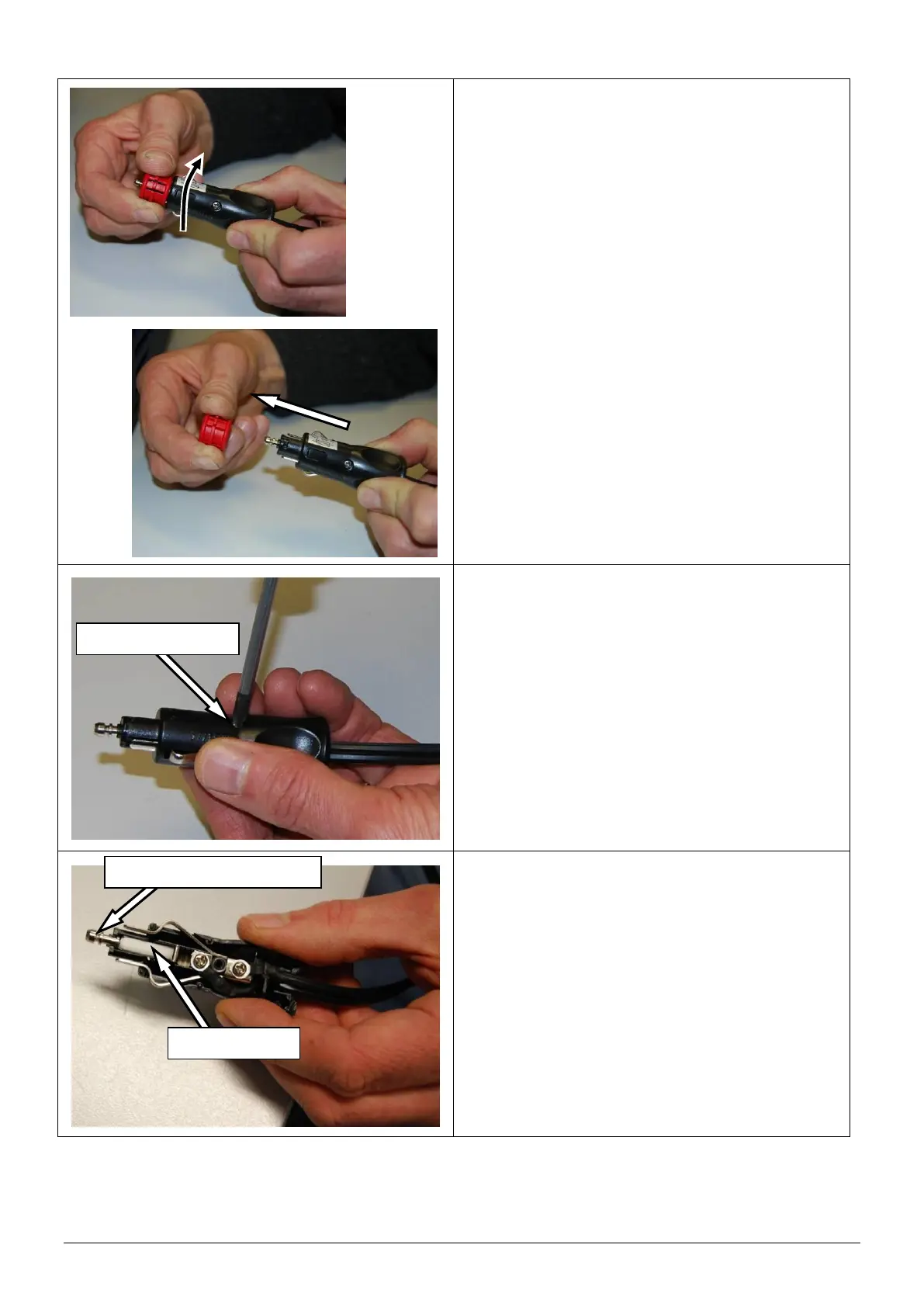

Disconnect the 12/24V DC power lead from the all
power supplies.
If fitted, remove the plastic adaptor collar from the
end of the plug To do this, twist the collar and
then pull it from the plug.
Remove the single screw that fastest the plug
together.
Separate and remove the top housing from the
body of the plug.
Remove the contact pin from the end of the plug.
Replace the device fuse with a new fuse of the
same rating. The correct rating is T 8 Amp 32V.
Reassemble the plug and test its continuity.
