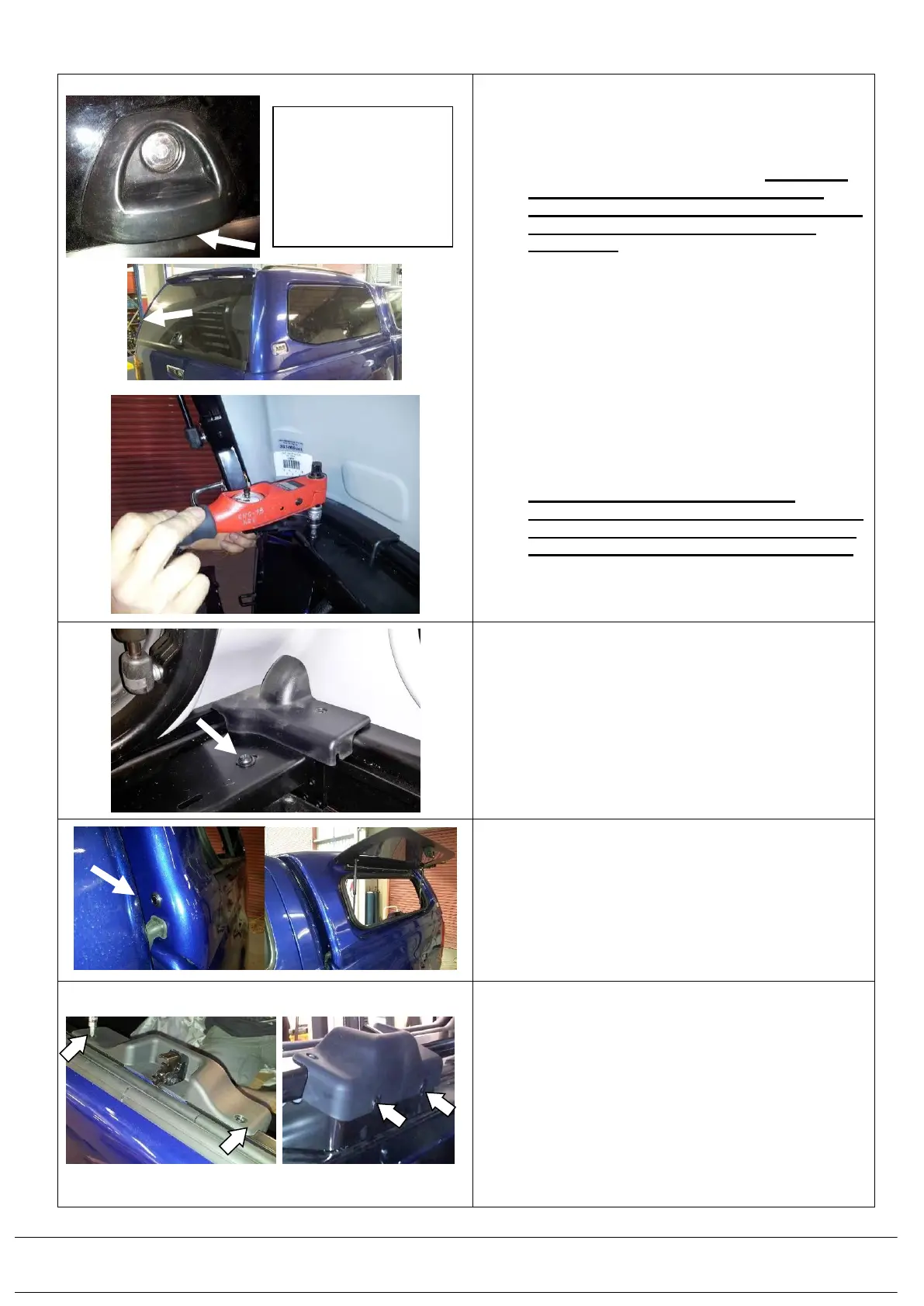

4.18) It may be necessary now to adjust the canopy
aft to reduce the pressure on the lower door
edge seal and therefore the door actuator
mechanism to allow the door to open
properly and evenly both sides. In doing so
please ensure the best seal between the
tailgate sash seal on the canopy’s lower door
edge and the vehicle tub at the sides is
maintained. 2 people will be required for this to
re-adjust the door glass gap at the sides if the
canopy has to be moved.
4.19) Once satisfied with door operation and the
canopy is even and set to the gaps required as
mentioned above, do up the M8 Torx screws to
22Nm.
If there are issues with the rear door
operation being uneven on each side, refer to
the section entitled “Operational checks and
adjustment options for doors and windows”
4.20) Using M8x25 Torx pan head screw and
M8x19mm (smaller) washer screw the canopy
down at the front tightly through the canopy
mount rail holes to the front corner tub mounting
brackets with an M8 nylock nut and M8x25mm
(larger) washer on the underside.
Do up to 22Nm.
Repeat on the opposite side.
4.21) Locate the push button switch, (if a lift up window
is fitted on the canopy), that is between the front
of the canopy and the vehicle’s tub.
Open the window.
Repeat on the opposite side if a double lift
window canopy is optioned.
4.22) Remove the 2 screws in the cover over the latch
mechanism using a Philips screw driver and
remove the 2 scrivets with a flat blade screw
driver. Retain all hardware. Lift the cover off.
Uncoil the loom inside to gain access to the
mounting hole slot (shown on next page)
Repeat this on the opposite side if a double
lift window canopy is optioned.
Press the button
underneath to check
the door releases on
the actuator and the
pressure is not too
high to stop it
unlatching.
To Next Page
