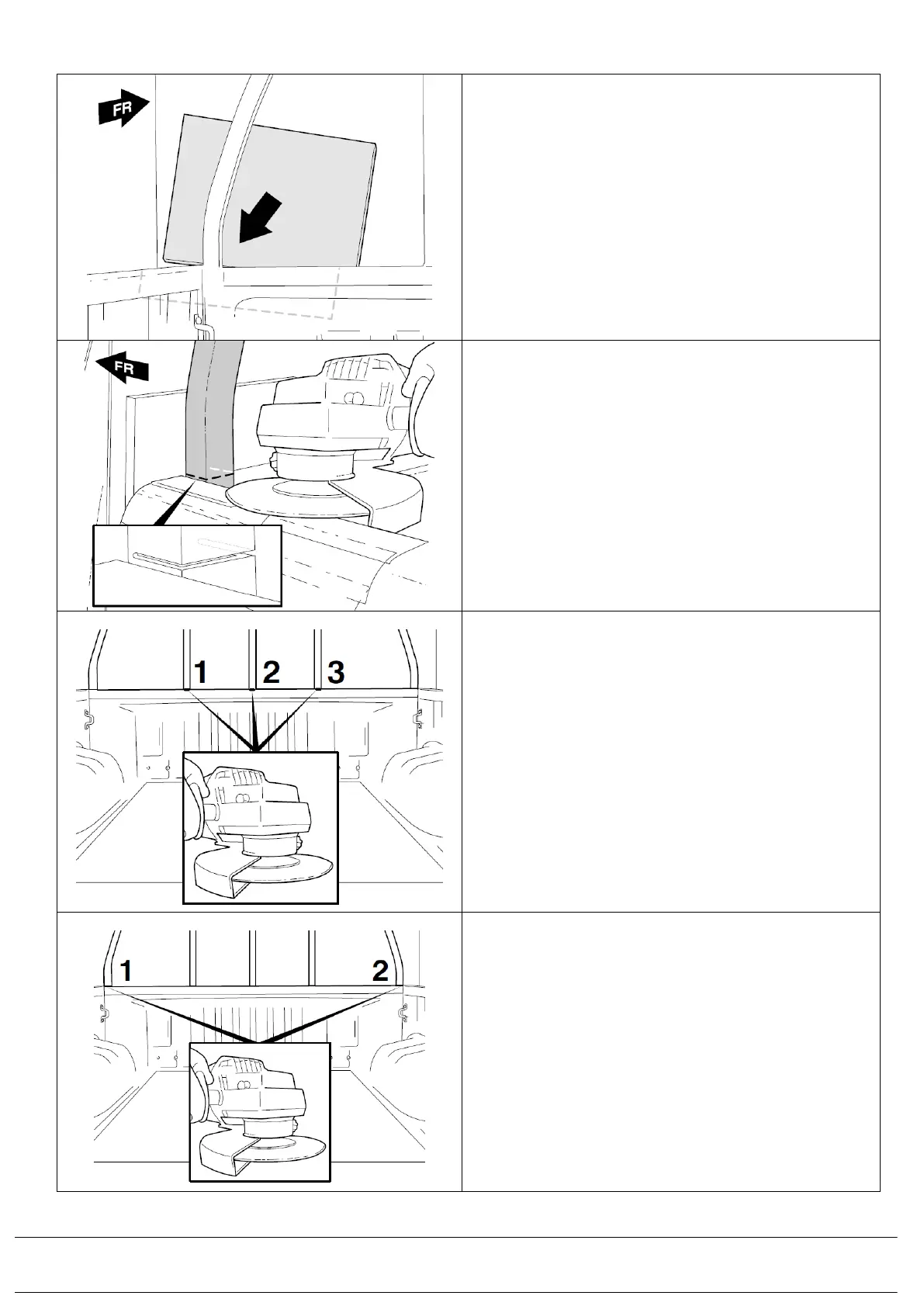

1.9) Insert a suitable protective wooden board of
adequate thickness between the cardboard and
the cabin guard main brace as shown.
1.10) Using a medium sized angle grinder, partially cut
through the rear and side faces of the cabin guard
main support legs.
1.11) Completely cut through the inner ladder rack bars
(if fitted) at the base, flush to the tray panel, as
shown. Move the protective board from Step 1.9
to each bar before cutting.
1.12) Cut completely through the remaining rear faces
of the LH & RH cabin guard main side legs, flush
to the grinding plates in step 1.8.
1.13) Remove the cabin guard from the vehicle and
discard it.
