ARB AIRLOCKER RD208 - Parts List; Exploded Assembly Diagram; Specifications

7 Parts List
35

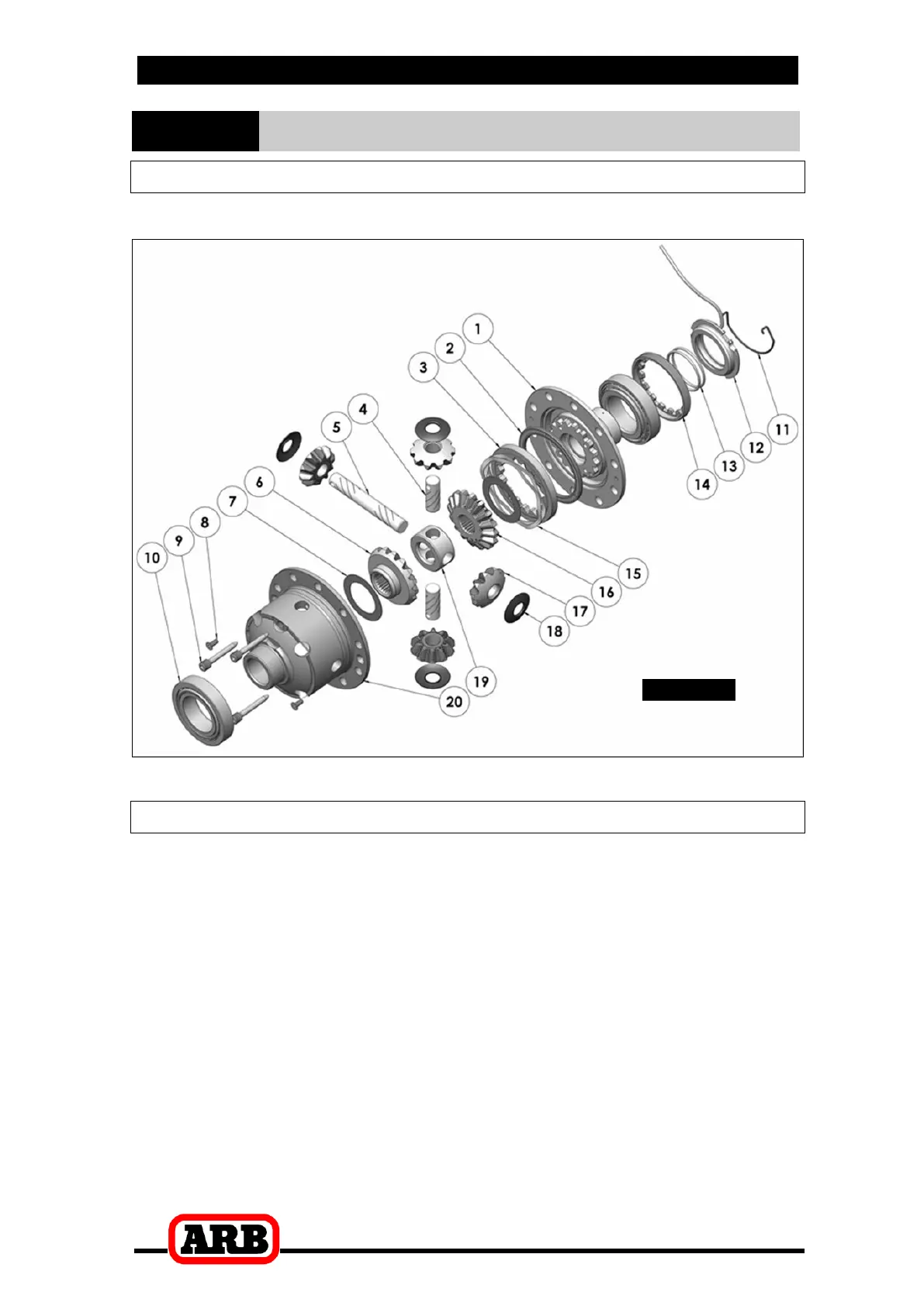

7.1 Exploded Assembly Diagram
(See itemized parts list overleaf)
Figure
25.
7.2 Specifications
RD208
Suzuki,26 SPL,10 bolt RG
Axle Spline
26 tooth, Ø27.4mm [1.08”]
Ratio Supported
All
Ring Gear ID
108.0mm [4.25”]
Ring Gear Bolts
10 bolts on Ø130mm [5.12”]
Ring Gear Torque
95Nm [70 ft-lb]
Backlash
0.13-0.18mm [0.005-0.007”]
Bearing Cap Torque
60Nm [44 ft-lb]
