Arbortech AS170 - Page 103

poLSkI 6
P
O
L

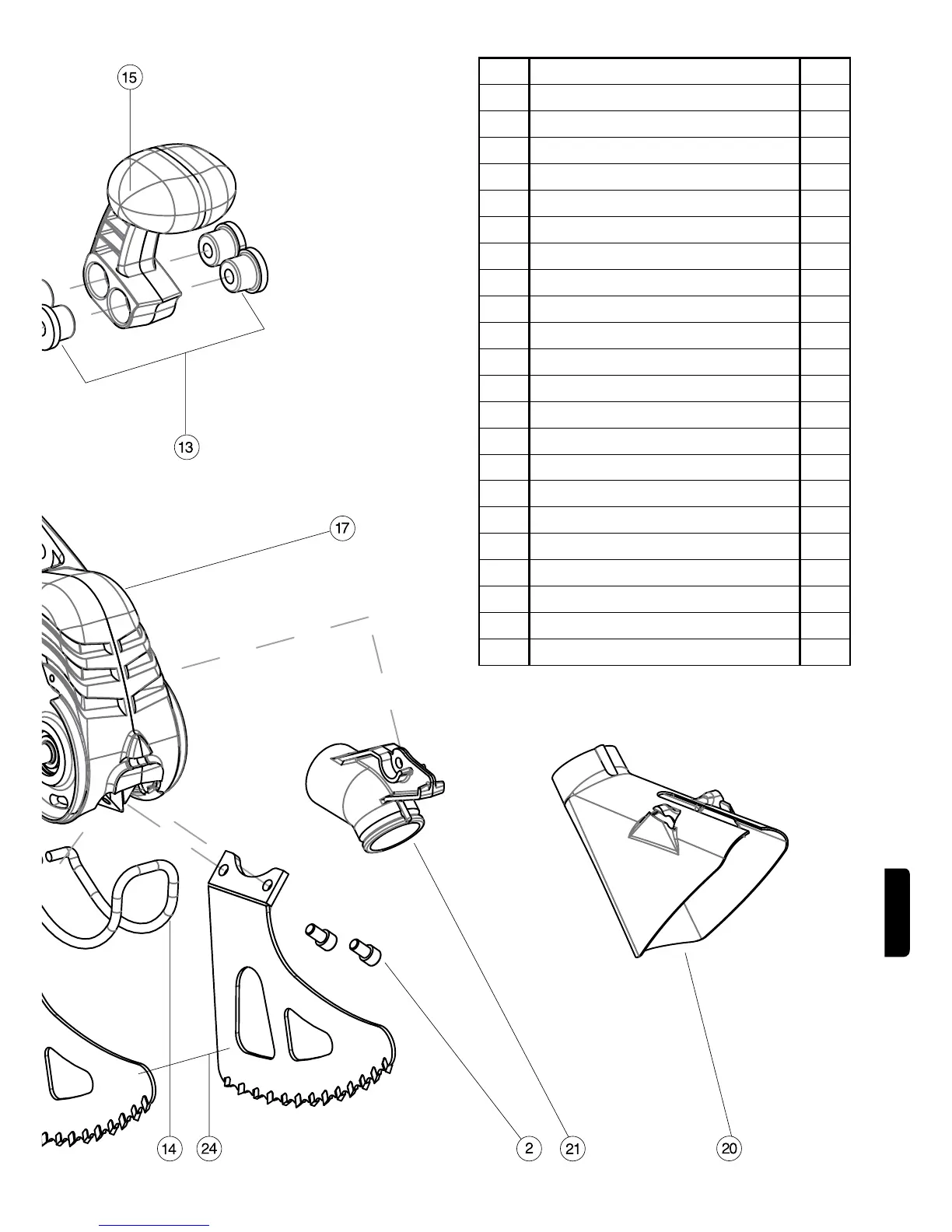

PARTS
KEY NO.
DESCRIPTION QUANTITY
1 Screw - Belt Cover , M4 X 12 4
2 Screw - Blade , M6 X 10 4
3 Brush - Cover 2
4 Washer - Step 1
5 Nut - Nyloc M6 1
6 Brush - Carbon 2
7 Clip - Internal 2
8 Pin 2
9 Pulley - Tension including Bearing - 696 1
10 Pulley - Power 1
11 Pulley - Drive 1
12 Belt 1
13 Bush 4
14 Guard 1
15 Handle - Top 1
16 Cover - Belt 1
17 Housing 1
18 Motor - (Regional) 1
29 ELECTRICAL PLUG (REGIONAL) 1
20 Boot - Dust Extraction Funnel 1
21 Bracket - Dust Extraction Fitting 1
22 Switch - (Regional) 1
23 Cover - Vent 1
24 General Purpose Blades 1
TM
ALLSAW™ 160
1  4
2  4
3  2
4  1
5  1
6  2
7  2
8  2
9  1
10  1
11  1
12 Pas 1
13  4
14  1
15  1
16 Pokrywa - pas 1
17 Obudowa 1
18  1
19  1
20  1
21  1
22  1
24  1
