NOTE: Failure to use the dust extraction funnel
when cutting masonry materials will cause
excessive wear of electrical components. Damage
caused by dust will lead to premature failure of the
motor, which will affect the warranty.
CAUTION: Verify that the vacuum machine being
usedhasaltersystemappropriateforthe
materialbeingcut.Incorrectltrationcanresultin
inadequate dust control and also possible damage
to the vacuum machine.

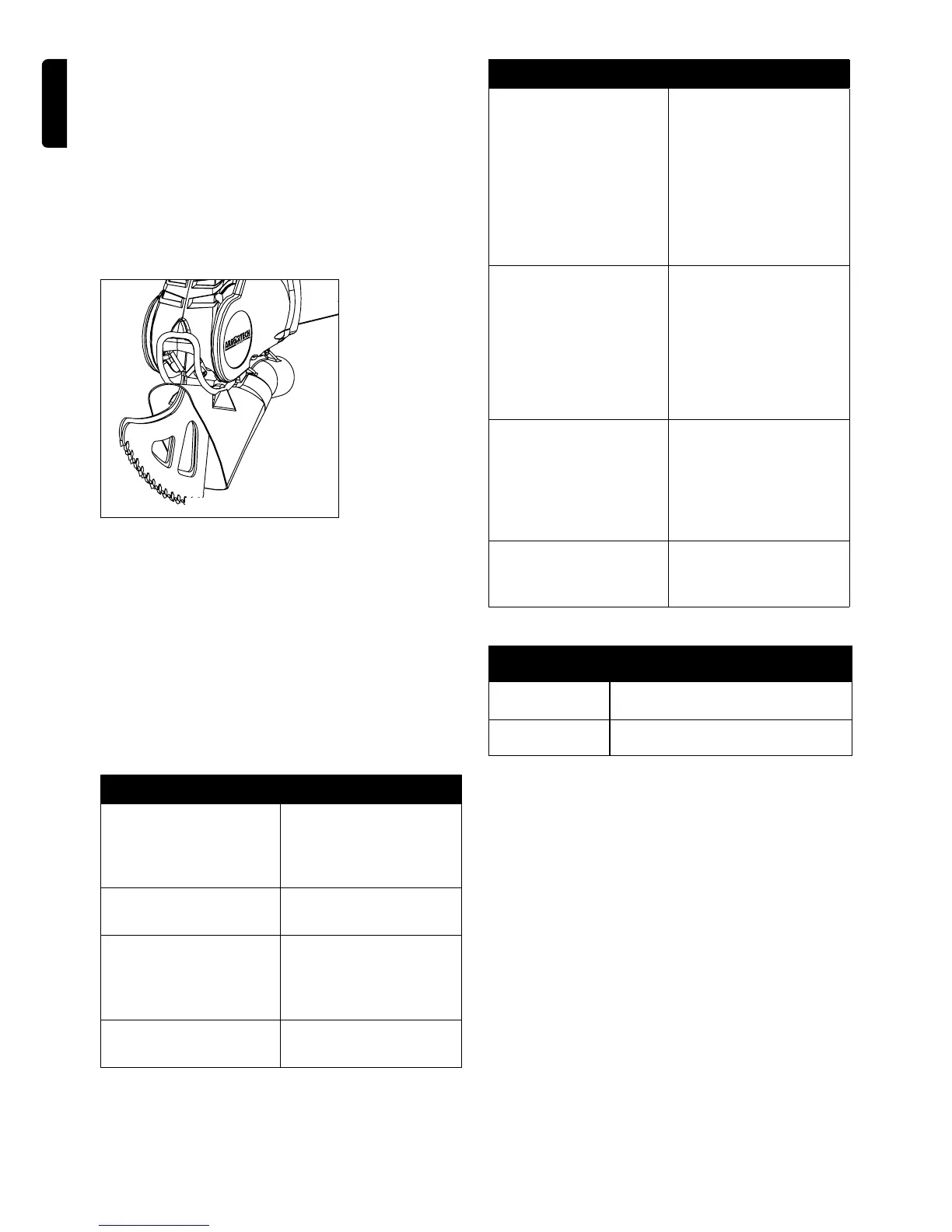

Dust extraction funnel
9. SPECIFICATIONS
ITEM SPECIFICATION
Cutting depth/width
120mm (4
3/4”)/6.5mm (1/4”),
depending on blade
Weight, with cutting
blades
4.3kg (9.5lb)
Dimensions without
blades
450 mm (17 7/8”) L
75 mm (3”) W
240 mm (9 1/2”) H
No load speed n
0
5100 rpm
ITEM SPECIFICATION
Electrical rating,
nominal
230-240 VAC, 50Hz,
1250W (Australia)
230 VAC, 50 Hz
1250W (Europe)
110 - 120 VAC,
50-60 Hz 13A
(USA/CANADA/UK
Industrial)
Dust extraction vacuum
hose interface
Suits vacuum hose
with inner diameter
of 25mm (1”) , 32mm
(1 1/4”), 37mm (1
3/8”) or outer hose
diameter 32mm
Belt tension
1 mm (1/16”)
maximum mid-span
deflection with
25 N (2.5 kg) (5lb)
deflection force
Blade mount bolt
torque
18 Nm (1.8 kg-m),
(13.2ft-lb),
TECHNICAL DATA
Vibration
7.7 m/s
2
Noise 92db max at 1.0m
The declared vibration emission level is based
no measurements representing the main
applications of the tool. However if the tool is
used for different applications, with different
accessories or poorly maintained, the vibration
emissionmaydiffer.Thismaysignicantly
increase the exposure level over the total
working period. An estimation of the level of
exposure to vibration should also take into
account the times when the tool is switched off or
whenitisrunningbutnotactuallydoingthejob.
Thismaysignicantlyreducetheexposurelevel
over the total working period. Identify additional
safety measures to protect the operator from
the effects of vibration such as: maintain the
tool and the accessories, keep the hands warm,
organisation of work patterns.
E
N
G
eNGLISH 11
