Arbortech AS170 - Page 55

F
R
A
FraNçaIS 6

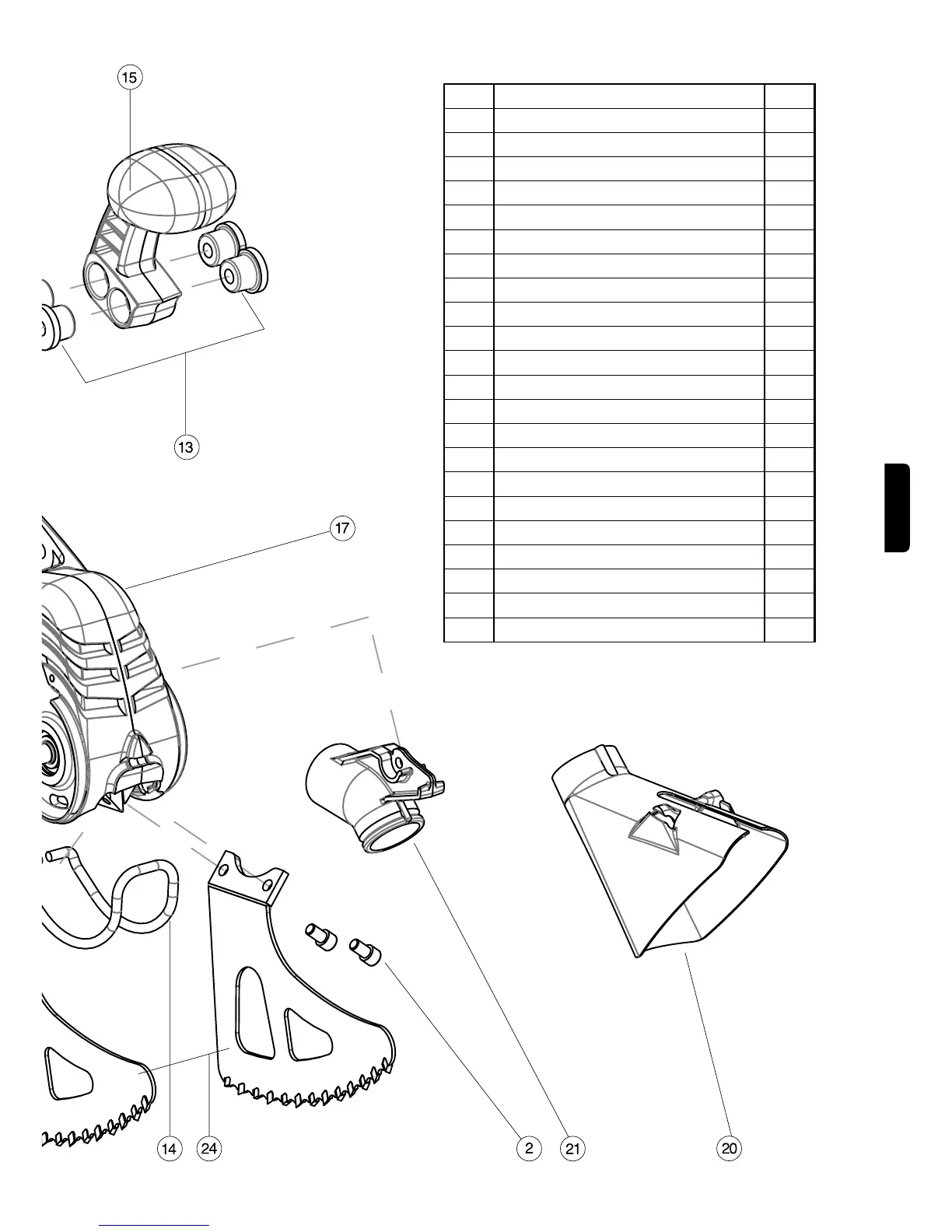

PARTS
KEY NO.
DESCRIPTION QUANTITY
1 Screw - Belt Cover , M4 X 12 4
2 Screw - Blade , M6 X 10 4
3 Brush - Cover 2
4 Washer - Step 1
5 Nut - Nyloc M6 1
6 Brush - Carbon 2
7 Clip - Internal 2
8 Pin 2
9 Pulley - Tension including Bearing - 696 1
10 Pulley - Power 1
11 Pulley - Drive 1
12 Belt 1
13 Bush 4
14 Guard 1
15 Handle - Top 1
16 Cover - Belt 1
17 Housing 1
18 Motor - (Regional) 1
29 ELECTRICAL PLUG (REGIONAL) 1
20 Boot - Dust Extraction Funnel 1
21 Bracket - Dust Extraction Fitting 1
22 Switch - (Regional) 1
23 Cover - Vent 1
24 General Purpose Blades 1
TM
ALLSAW™ 160
1 Vis-Protégé courroie,M4 X 12 4
2 Vis- Lame,M6 X 10 4
3 Couvre-Brosse 2
4 Rondelles 1
5 Ecrous-Nyloc M6 1
6 Brosse-Carbone 2
7 Clip-Interne 2
8 Pin 2
9 Poullie-Tension comprennant le roulement 1
10 Poullie-Tension 1
11 Poullie-Train 1
12 Courroie 1
13 Roulements 4
14 Garde 1
15 Manche-Haut 1
16 Couvre-Courroie 1
17 logement 1
18 Moteur-(Region) 1
19 PRISE ELECTRIQUE(REGION) 1
20 Base-Entonnoir D'extraction De Poussiere 1
21 Composant D'extraction De Poussiere 1
22 Commutateur (Regionale) 1
24 Lames a usage multiple 1
