Arcan ALJ2T - Replacement Parts

ALJ2T User Manual 6 rev. 102413

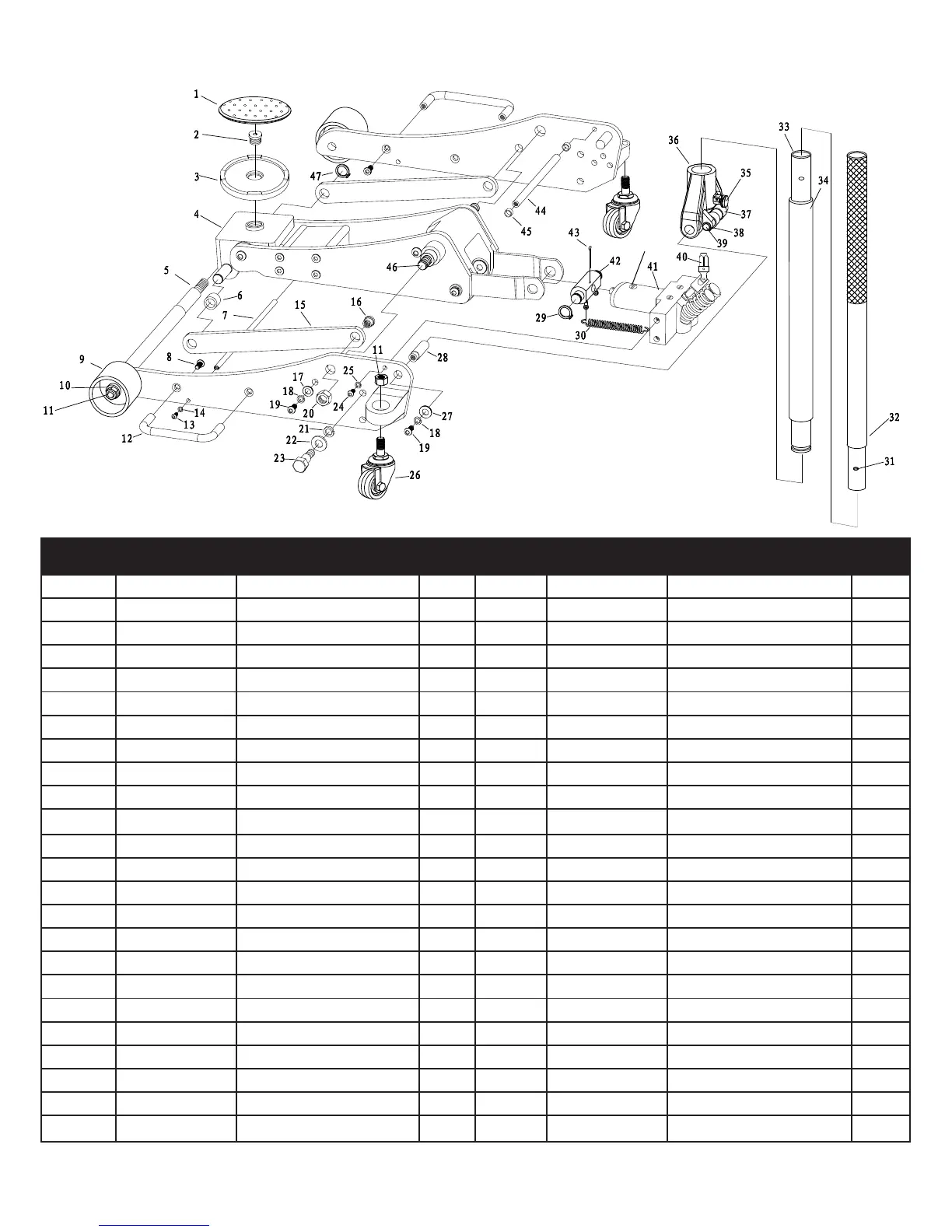

REPLACEMENT PARTS
OIL FILL
PLUG
ITEM NO MODEL NO DESCRIPTION QTY ITEM NO MODEL NO DESCRIPTION QTY
1 RS6602SP Rubber Saddle Pad 1 25 SpringWasher8 2
2 Saddle Bolt 1 26 RS660201 Rear Caster Assembly 2
3 RS660234 Saddle 1 27 Washer 10 2
4 Saddle Base 1 28 Yoke Axle 2
5 Front Wheel Axle 1 29 Retaining Ring 19 2
6 Link Rod Spacer 2 30 Lift arm return spring 2
7 Lever Bar 1 31 Detent 1
8 RS660221 BoltM8x25 4 32 RS660259 Upper Handle 1
9 RS660218 Front Wheel Assembly 2 33 RS660249 Lower Handle 1
10 Washer 2 34 RS6602HP Handle Bumper 1
11 RS660203 Locking nut M12 4 35 RS660250 Handle Set Screw 1
12 RS660216 Carrying handle 2 36 RS660253 Handle Yoke 1
13 Bolt M6 x 25 2 37 Pump Roller 1
14 Washer 6 2 38 Retaining Ring 12 1
15 Radius Linkage 2 39 Pump Roller Axle 1
16 Radius Linkage Axle Bolt 2 40 RS660261 Universal Joint Assembly 1
17 Washer 10 2 41 RS660258 Power Unit Assembly 1
18 Spring Washer 10 4 42 Linkage Block 1
19 Bolt M10 x 20 4 43 Cotter Pin 4 x 50 1
20 LockingNutM18 2 44 Rod 1
21 Spring Washer 12 4 45 Rubber Guard 2
22 Washer 12 4 46 Lift Arm Axle 1
23 Bolt 4 47 RetainingRing18 2
24 BoltM8x25 2
Not Shown
RS660258SK Seal Kit 1
