7/35EN
Refrigerator / User Manual
1.
Fridge - compartment door shelf
2.
Te m p e r a t u r e s e t t i n g b u t t o n
3.
Water dispenser filling tank
4.
Egg section
5.
Water dispenser reservoir
6.
Storage container under the door shelf
7.
Moving door shelf
8.
Adjustable feet
9.
Crisper
10.
Chiller compartment
11.
Lock and key
12.
Bottle shelf
13.
Fridge - compartment glass shelf
14.
Fan
15.
Freezer compartment shelf
16.
Icebox / Ice-making compartment
17.
Freezer compartment
18.
Fridge compartment

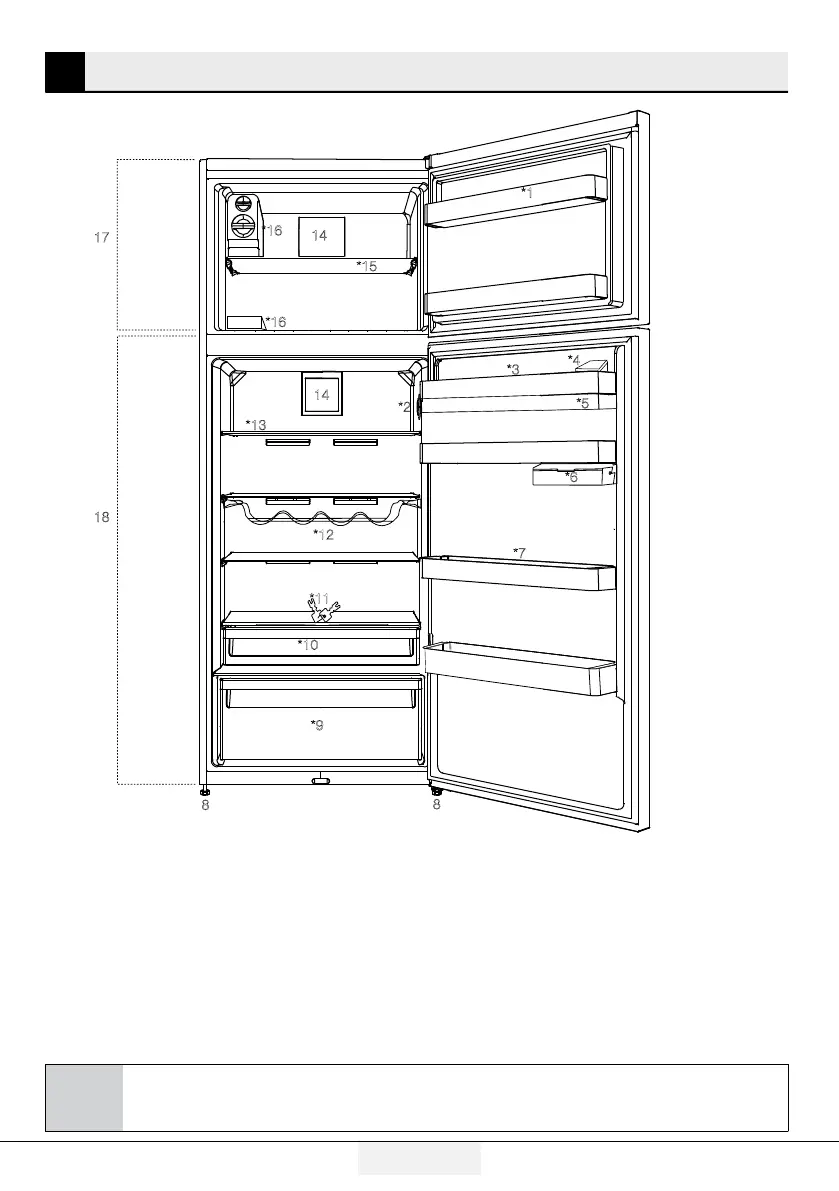

2 Your appliance
C
*optional:Figures in this user manual are given as an example and may not match the
product exactly. If the relevant parts are not available in the product you purchased, the
figure applies to other models.
*1
*3
*5
*4
*6
*2
*7
8
*9
*10
*11
*12
*13
14
14
17
18
*15
*16
*16
8
