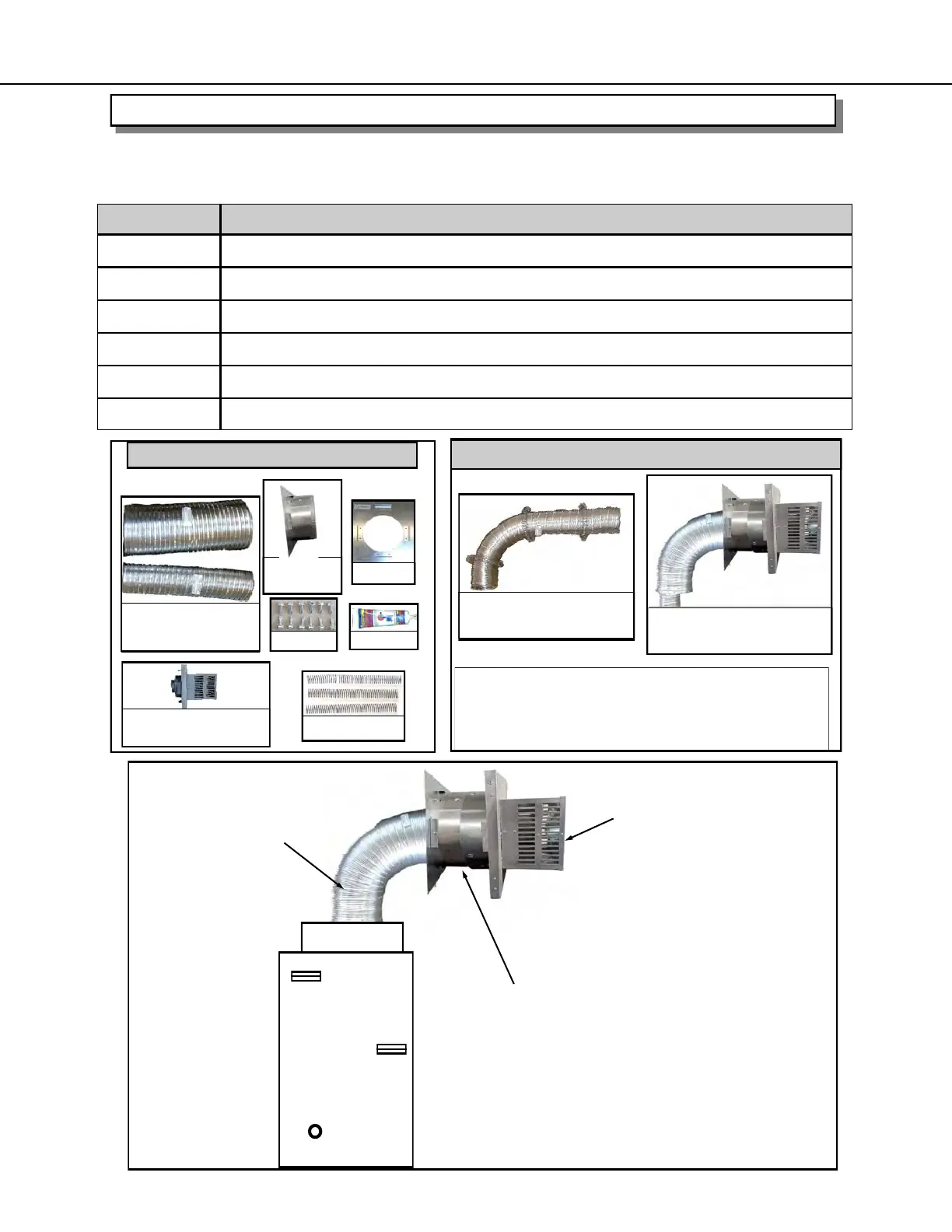

VENTING - HORIZONTALLY USING FLEXIBLE DIRECT VENT SYSTEMS
The 72-DVTE30-2 can be vented Horizontally by using the Archgard Direct Vent System of
flexible pipe.
PART # DESCRIPTION
999-DV-TVK3 Flex Vent Kit with 36” (914 mm) vent length (includes 999-DV-HTC)
999-DV-TVK5 Flex Vent Kit with 60” (1.52 M) vent length (includes 999-DV-HTC)
999-DV-TVK10 Flex Vent Kit with 120” (3.05 M) vent length (includes 999-DV-HTC)
999-DV-HTC Horizontal termination head only
999-DV-SC Safety Cage for Horizontal termination head (999-DV-HTC)
999-DV-VSD Vinyl siding deflector
4” and 7” flex pipe
(100 mm x 173 mm)
Telescoping Thimble
Archgard Horizontal
termination cap
NOTE: Pitch the flexible pipe up towards the
Horizontal Termination Cap
VENT ASSEMBLY
4” exhaust vent
with spring spacers
Fully Assembled Flexible
Direct Vent System
VENT KIT COMPONENTS (TVK)
Horizontal Termination
Cap
7” & 4” flexible liner
(compressed)
Telescoping
Thimble
Firestop
Sealant
Screws
Spring spacers
