Before servicing, read the terms and conditions of the Archgard warranty at the back of the
manual. Contact the Authorized Archgard dealer were you purchased the appliance from and
provide them with details of the problem together with the initial installation information (from
the back of this manual).
WARNING: Servicing of this appliance must be conducted by a qualified Archgard
service technician. Improper servicing, adjustment or alteration of this
appliance may cause property damage, personal injury or loss of life. All
servicing should be conducted with the appliance cold. All replacement parts
must be authorized by Archgard for suitability.
Caution: Wear gloves when adjusting the primary air with the appliance hot.
Note: the Shutter is set at the factory and normally only requires resetting at higher altitudes.

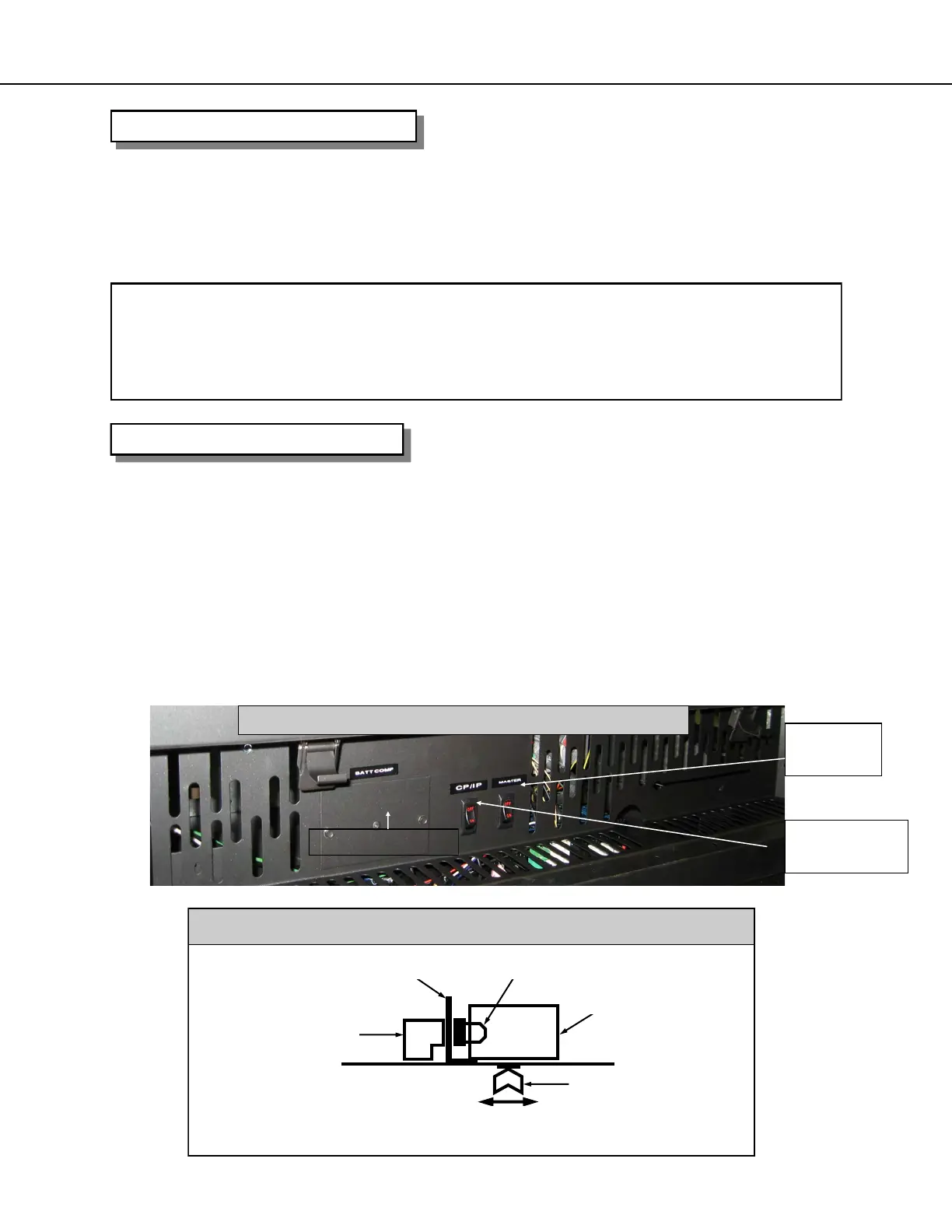

1. Open the lower louver.
2. Unscrew the 4 screws holding the control panel and remove the panel. (Fig. 1)
3. The primary air adjustment wing nut is located behind and to the left of the control valve.
4. Loosen the wing nut and slide the primary air shutter to the right to increase primary air
and to left to reduce primary air.
5. Tighten the wing nut after adjustment.
ADJUSTING PRIMARY AIR
SERVICING UNDER WARRANTY
INCREASE DECREASE
ADJUSTMENT WING NUT
ORIFICE CAP
PRIMARY AIR SHUTTER
Air Shutter (side view)
Control Panel
Battery Compartment
Spark/Standing
pilot Switch
Main Power
Switch
