ECLIPSE FRONT INSTALLATION & REMOVAL
The Archgard Optima 72 Eclipse (model #: 72-DVTE30N-2-ERG or 72-DVTE30P-2-ERG) comes
standard with the Eclipse front and Eternal Flame Reflective Ceramic Glass panel set. The following steps
show how to install the front. See Page 34 for information on how to install the panel set.
Note: These models do not include the barrier screen (72-BS). The Eclipse front is also compatible with the
72-DVTE30N-2 and 72-DVTE30P-2).
The mounting plate for the Eclipse front is installed at the factory using two tek screws on the top and two
on the bottom.

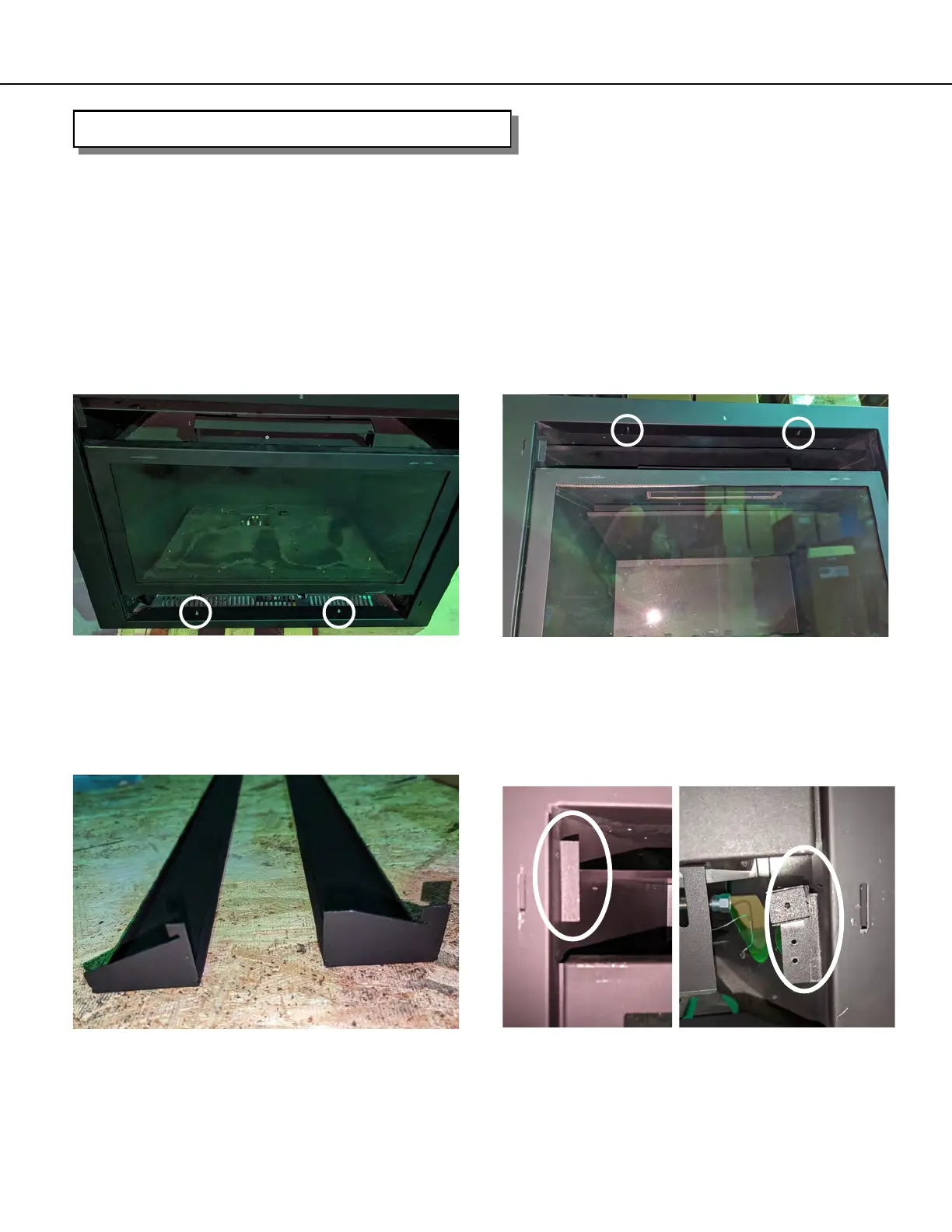

The upper and lower louvers are packed with the fireplace. The upper louver hooks over tabs located above
the door. The lower louver hooks over the magnet bracket under the door.
Upper louver
Lower louver
