Optima 70 - 2 10

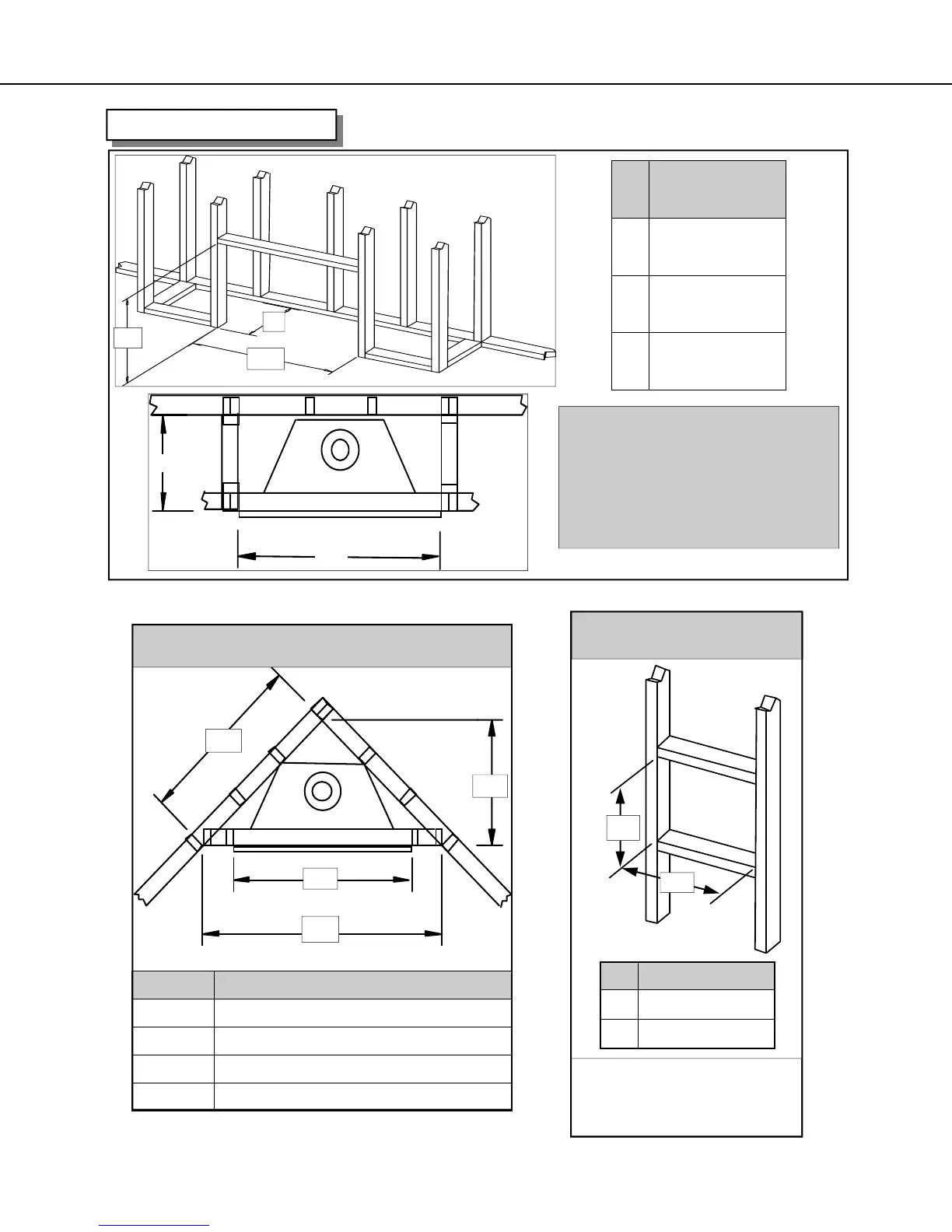

FRAMING DIMENSIONS
C
B
C
A
B
* This dimension allows the top of
the fireplace to slide under. If
more rigidity is required, a stud
may be added to the back of the
fireplace top nailing flange after
the fireplace is installed.
Dimensions
A * 38” (965 mm)
B 16-1/4” (412 mm)
C 38” (965 mm)
TERMINATION
FRAMING
H
I
NOTE: Be sure to include
1/4” (6 mm) rise per 12” (305
mm) of horizontal length
DIMENSIONS
H 11” (279 mm)
I 10” (254 mm)
D
E
F
G
DIMENSIONS
D 39-1/8”” (994 mm)
E 27-5/8”” (700 mm)
F 37-3/4” (959 mm)
G 55-1/4” (1403 mm)
CORNER FRAMING
