Archgard Optima 70-2 - Appliance Dimensions and Clearance to Combustibles

Optima 70 - 2 8

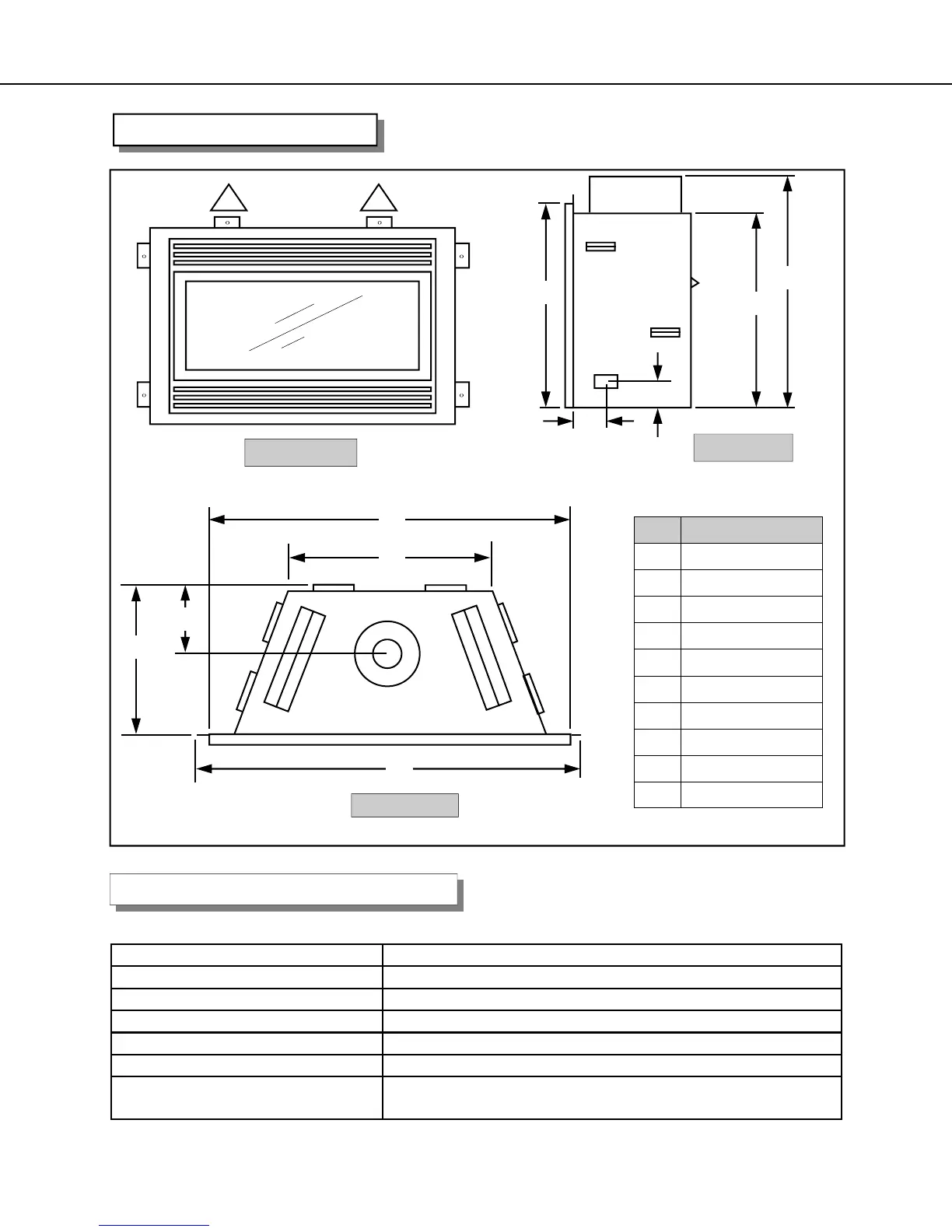

APPLIANCE DIMENSIONS
BACK
0” to stand-offs
SIDES
0” to stand-offs
TOP
0” to stand-offs
BOTTOM
0”
ADJACENT SIDE WALL
1” (25 mm) to side of faceplate
MANTLE
see diagram
VENT
1” (25 mm) to outside side and bottom surface,
2” (50 mm) to outside top surface.
CLEARANCES TO COMBUSTIBLES
DIMENSIONS
A 31” (787 mm)
B 6” (152 mm)
C 3” (76 mm)
D 29 ¾” (756 mm)
E 38” (965 mm)
F 38” (965 mm)
G 21 ½” (545 mm)
H 39 ¾” (1010 mm)
I 6 ½” (164 mm)
J 16 ¼” (412 mm)
SIDE VIEW
A
B
C
D
E
TOP VIEW
F
G
I
J
H
FRONT VIEW
