Optima 70 - 2 36
NOTE: Ensure that the fireplace is turned off and cool.
After opening the Bay Door package, inspect the bay door to ensure that no damage has oc-
curred inside the package. Please report any damage immediately to your Authorized Dealer.
Installing the Gold window trim:
1. Remove the protective wrapping from one trim.
2. Place the end tab of the trim in behind the top left vertical post above the door.
3. Move the tab at the other end of the trim in behind the top right vertical post above the
door.
4. Remove the protective wrapping from the other trim.
5. Similarly, place the tab of the trim in behind the bottom left vertical post below the door.
6. Move the tab at the other end of the trim in behind the bottom right vertical post below
the door.
7. Wipe any finger prints before turning on the appliance, so as not to etch the prints onto
the trims.

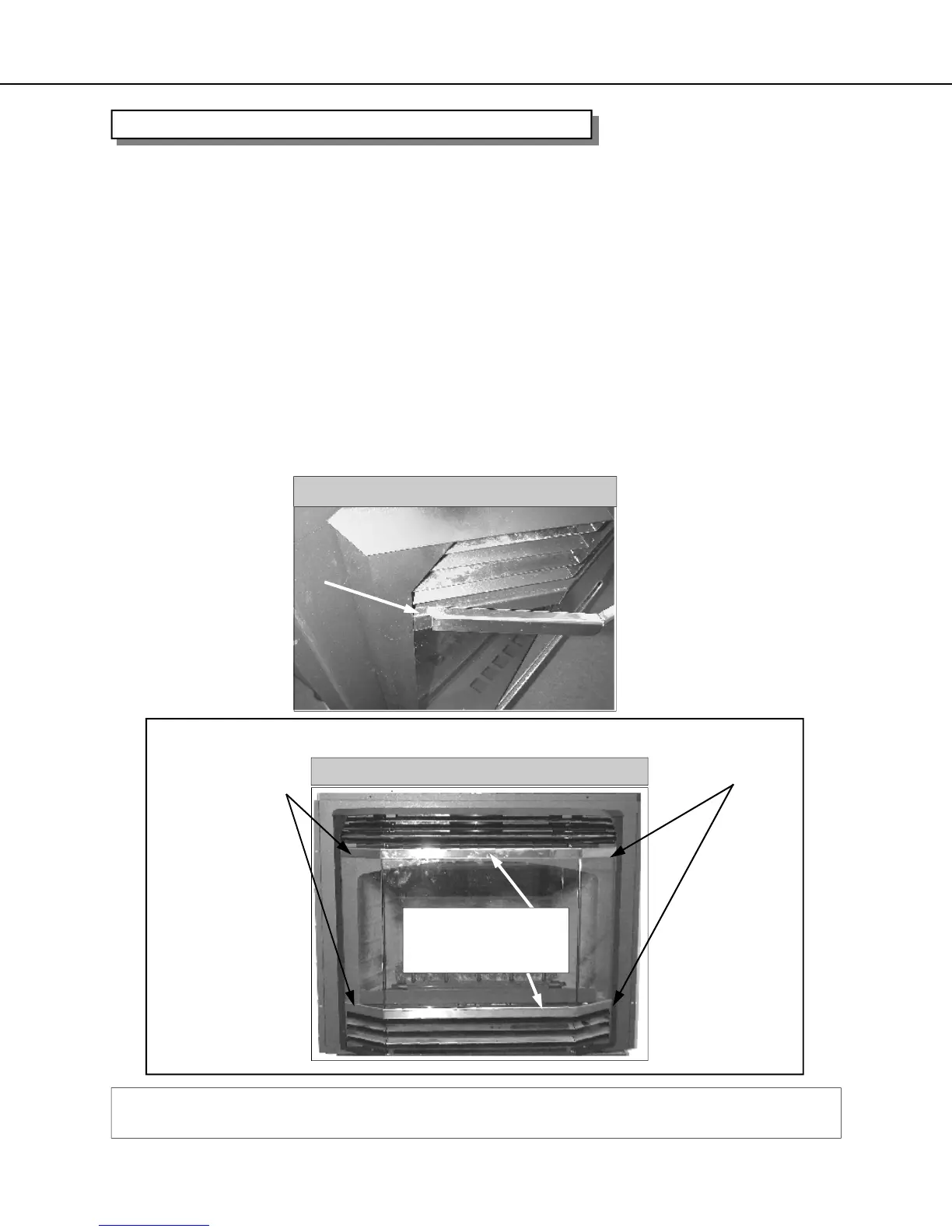

Bay trim tab placement
OPTIONAL BAY WINDOW TRIM INSTALLATION
Top & Bottom Bay door strips installed
Securing trim with
magnets
Place one mag-
net between
door and trim
CAUTION:
Only Trim kit(s) supplied by the manufacturer shall be used in the installation of this appliance.
Top Gold Bay trim
Bottom Gold Bay trim
To Next Page
