Optima 70 - 2 37

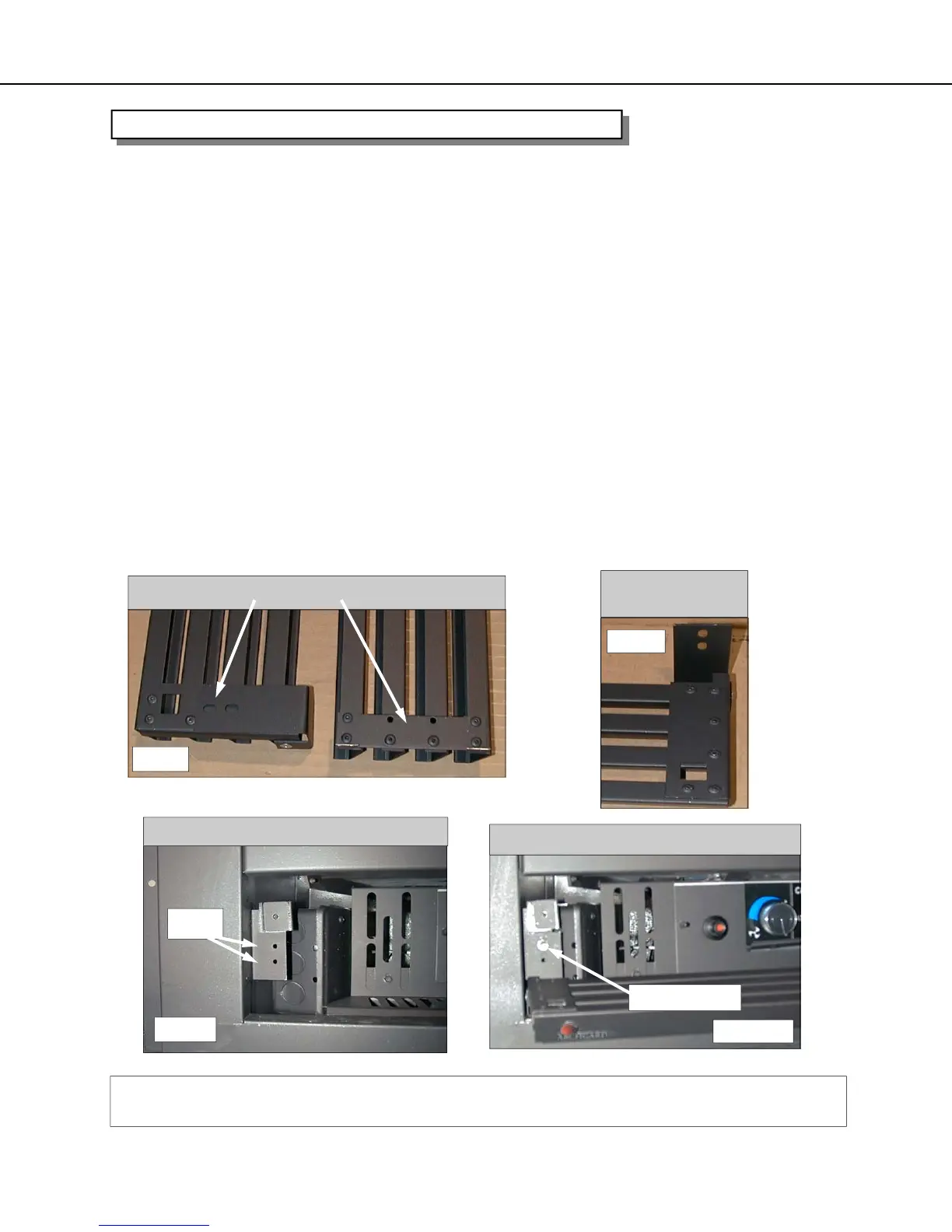

LOUVER (UPPER & LOWER GRILLS) INSTALLATION
The Optima 70 is packaged without the upper and lower louvers (grills). They must be ordered
separately. This is to allow you the option of black, black/gold, black/pewter louvers and all gold
louvers.
After opening the louver package, inspect the upper and lower louvers to ensure that no
damage has occurred inside the package. Please report any damage immediately to your
Authorized Dealer.
Upper Louver installation.
1. Locate the Upper Louver. (Fig. 1)
2. Ensure the glass door is on the appliance.
3. Place the louver in the two catches located at the side of the appliance.
Lower Louver installation.
1. Locate the Lower Louver. (Fig. 1)
2. Locate the Hinges on the Lower Louver. (Fig. 2)
3. Locate the pre-drilled holes on the appliance. (Fig. 3)
4. Line up the hinges (on the louvers) and on the appliance and fasten the louvers with the 4
screws provide in the louver package. (Fig. 4)
Lower & Upper Louvers
Fig. 1.
Lower Louver with
Hinge
Fig. 2.
CAUTION:
Only Trim kit (s) supplied by the manufacturer shall be used in the installation of this appliance.
Pre-Drilled Hinge Holes
Holes
Fig. 3.
Bottom Hinged Louver
Hex Screw
Fig. 4.
