Optima 70 - 2 9

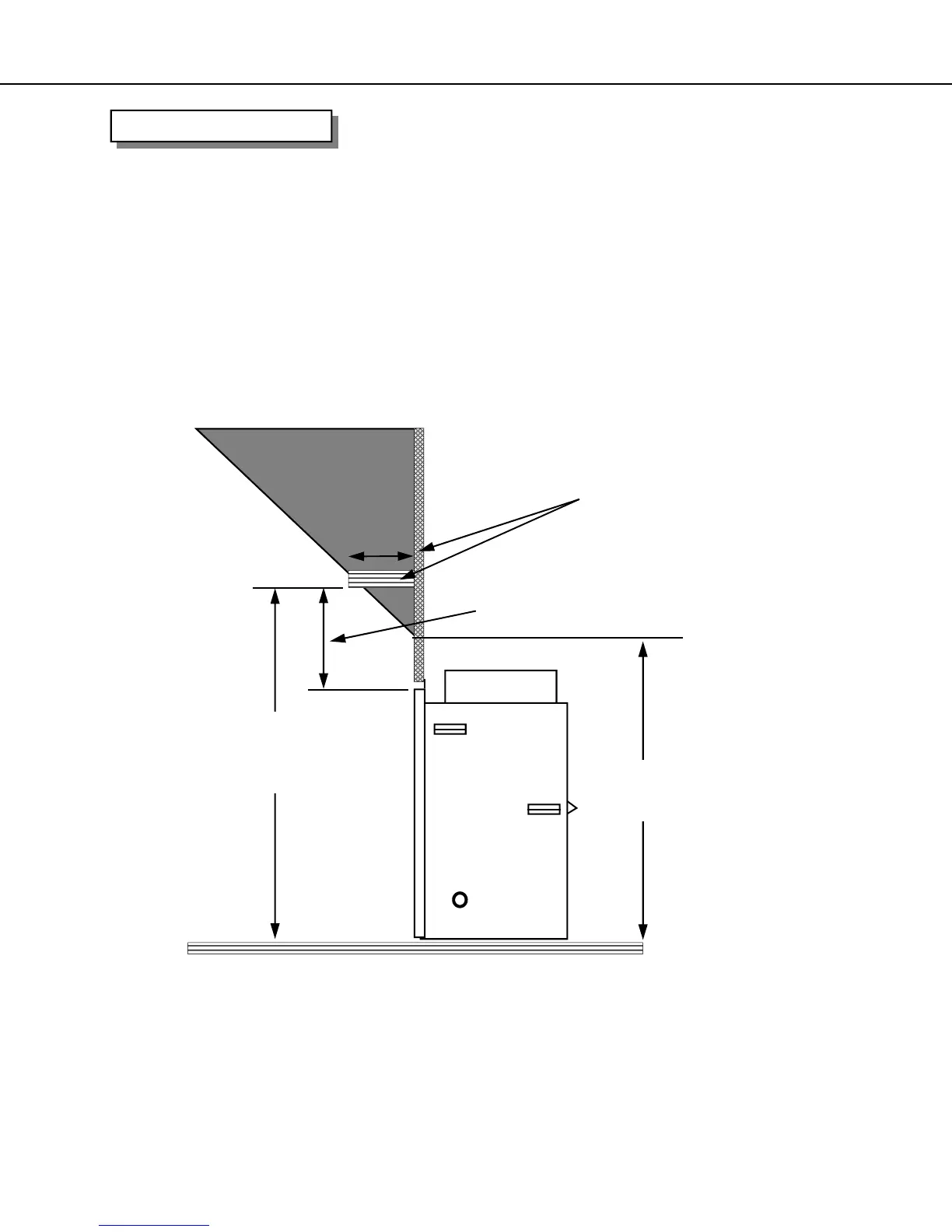

MANTLE CLEARANCE
NOTE:
Low profile wooden crowns and moldings above the unit are not considered as mantles.
I.E. 1” (25 mm) or less protrusions on the upper mantle facing are acceptable.
6” (152 mm) projection
Mantle may start 39” (990
mm) and above
Minimum Height from Top of Surround:
14” (356 mm) from front top of appliance to a
6” (152 mm) mantle
Minimum Height
From Bottom of Appliance:
45” (1143 mm
) with a
6” (152 mm) mantle
Combustible mantle allowed in shaded area. Mantle extension may be increased 1” (25 mm)
for each additional 1” (25 mm) increase in clearance height.
