VIPER Detailed hardware description

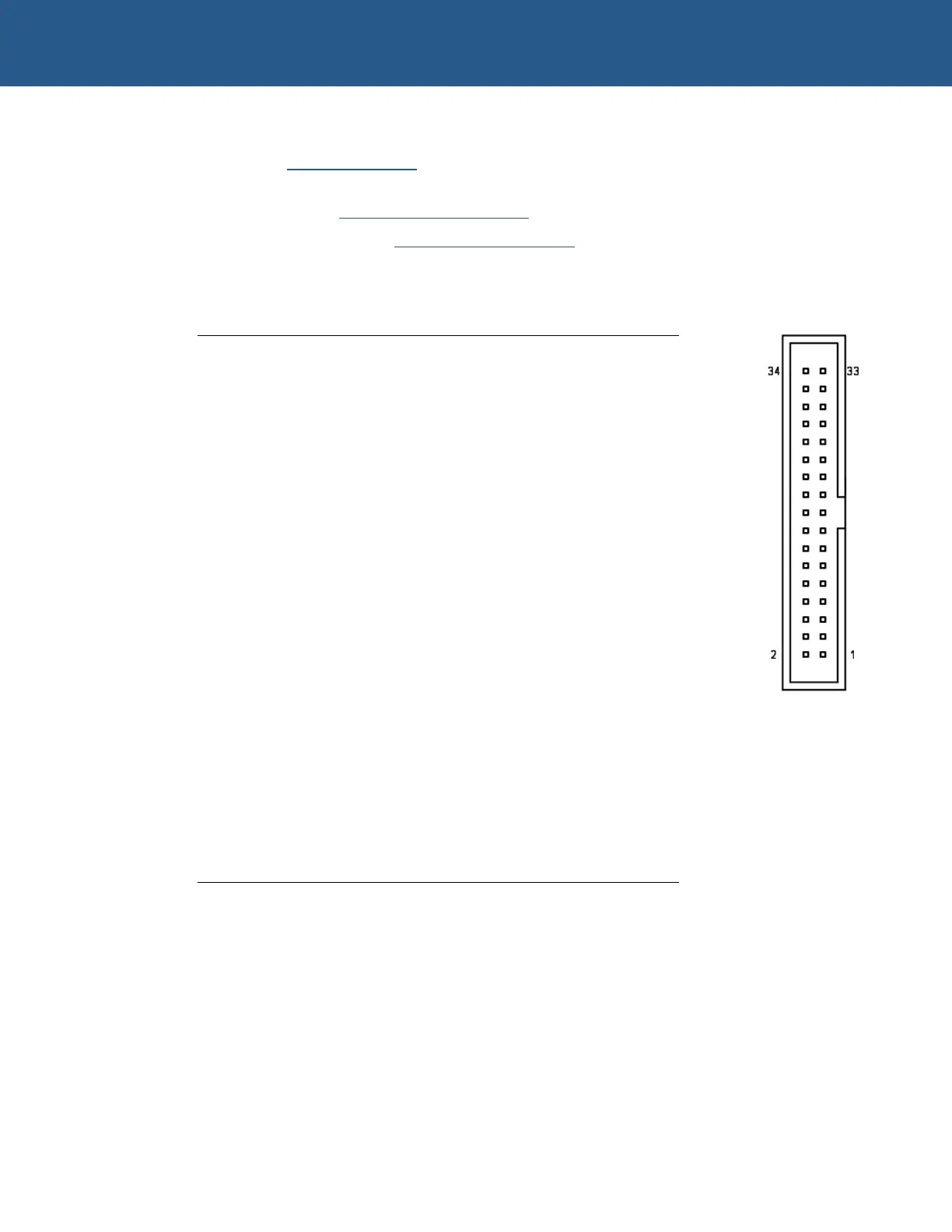

PL2 – Generic LCD connector
Connector: Taicom TI34BHS, 34-way, 2.54mm (0.1”) x 2.54mm (0.1”) straight-boxed
header.
Mating connector: Fujitsu FCN-723-B034/2.
Mating connector crimps: Fujitsu FCN-723J-AU/Q
. (As it is possible to connect a crimp
type connector to PL2, a wide range of LCD displays can be connected with a custom
cable.)
Pin Signal Name Pin Signal Name
1 GND 2 BLUE_DATA0
3 BLUE_DATA1 4 BLUE_DATA2
5 GND 6 BLUE_DATA3
7 BLUE_DATA4 8 GREEN_DATA0
9 GREEN_DATA1 10 GND
11 GREEN_DATA2 12 GREEN_DATA3
13 GREEN_DATA4 14 GREEN_DATA5
15 GND 16 GND
17 RED_DATA0 18 RED_DATA1
19 RED_DATA2 20 GND
21 RED_DATA3 22 RED_DATA4
23 GND 24 PCLK
25 GND 26 LCDSAFE
27 LCDSAFE 28 LCLK
29 FCLK 30 GND
31 BKLSAFE 32 LBIAS
33 NC 34 BKLEN#
