VIPER Detailed hardware description

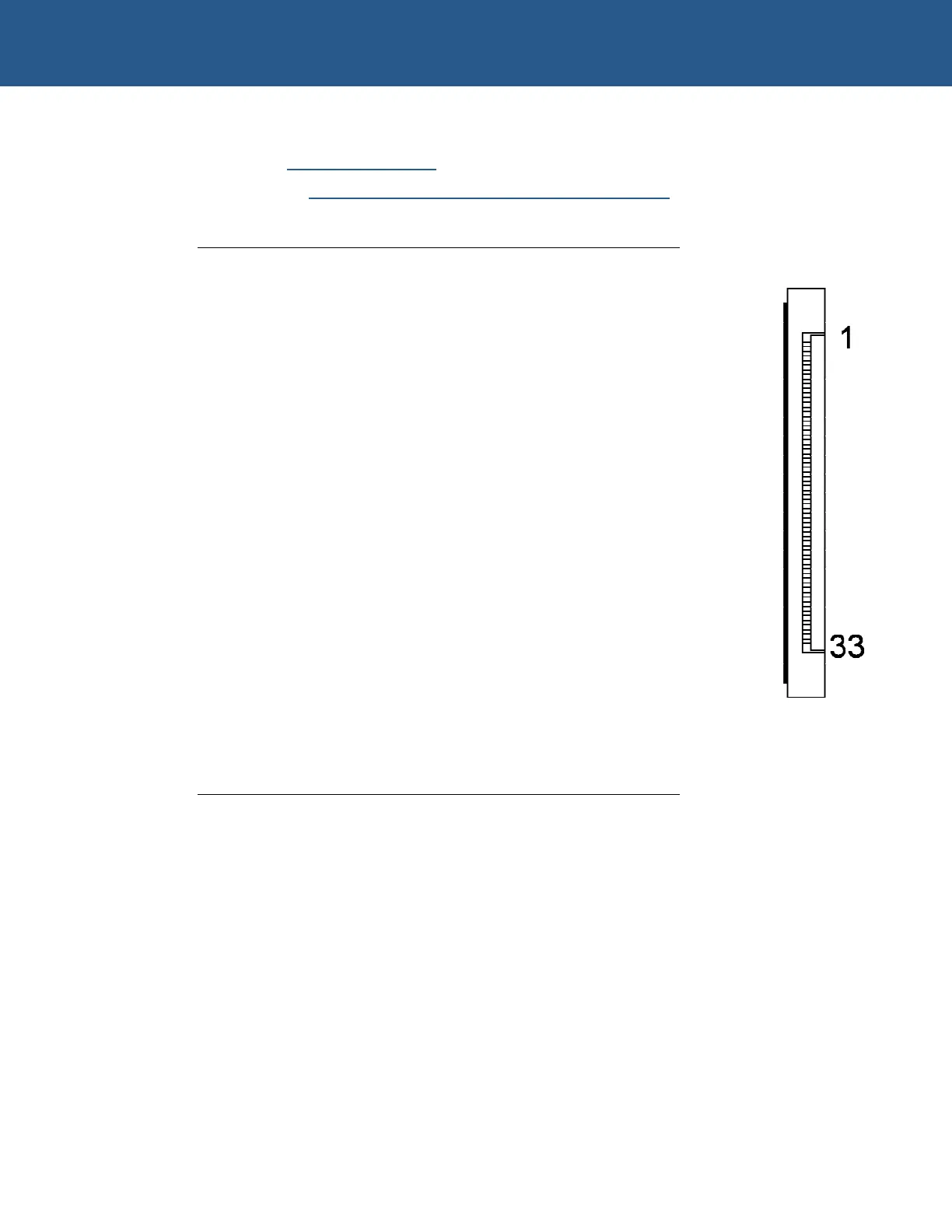

PL3 – Direct connection to a NEC NL3224BC35-20 5.5inch 320x240 TFT display
Connector: Oupiin 2345-33TD2.
Mating Cable: Eunsung 0.5x33x190xAx0.035x0.3x5x5x10x10.
Pin Signal Name Pin Signal Name
1 PCLK 18 GREEN_DATA5
2 LCLK 19 GND
3 FCLK 20 GND
4 FCLK 21 BLUE_DATA0
5 GND 22 BLUE_DATA1
6 GND 23 BLUE_DATA2
7 RED_DATA0 24 BLUE_DATA3
8 RED_DATA1 25 BLUE_DATA4
9 RED_DATA2 26 GND
10 RED_DATA3 27 LBIAS
11 RED_DATA4 28 LCDSAFE
12 GND 29 LCDSAFE
13 GREEN_DATA0 30 GND
14 GREEN_DATA1 31 GND
15 GREEN_DATA2 32 GND
16 GREEN_DATA3 33 GND
17 GREEN_DATA4
