VIPER Detailed hardware description

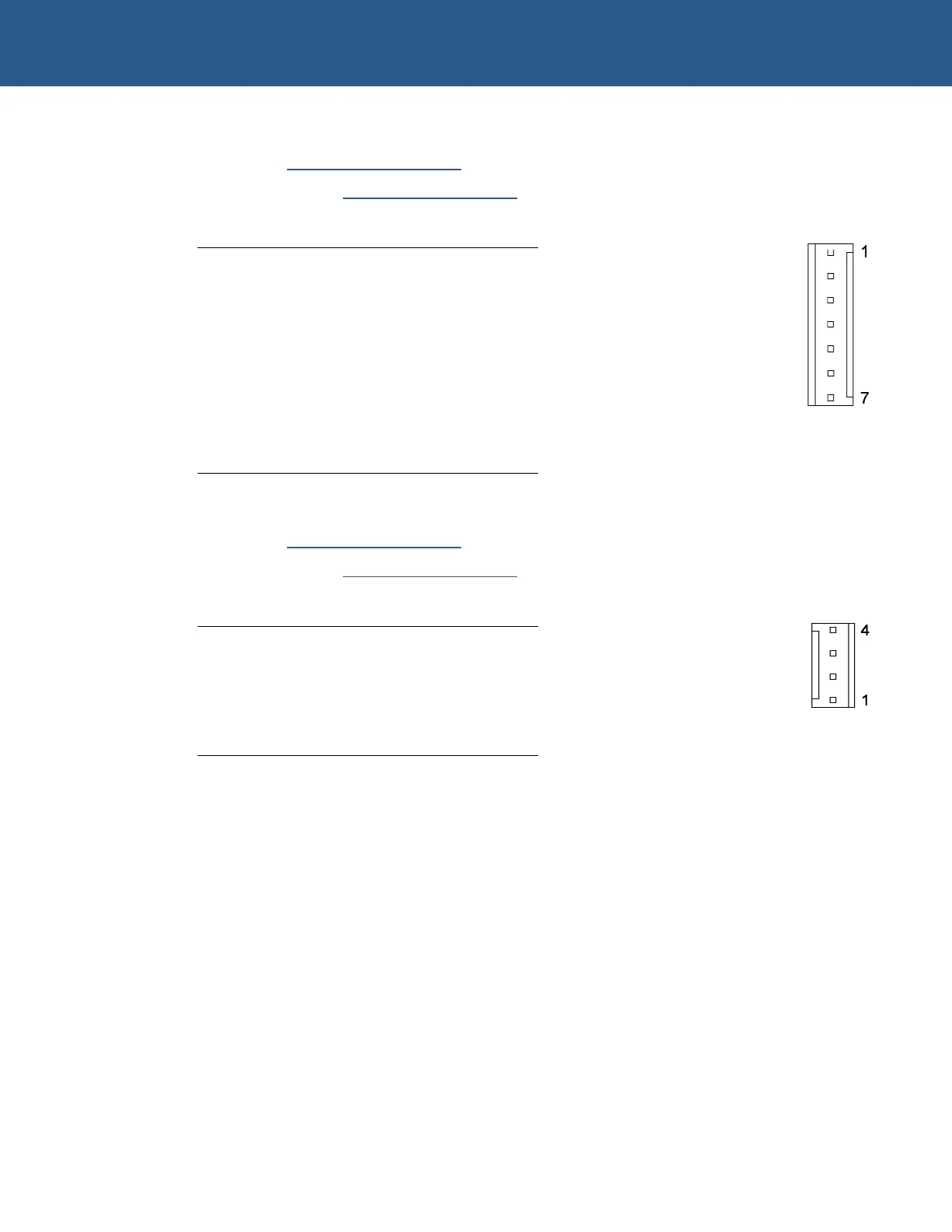

PL4 – Backlight inverter connector
Connector: Framatome 76384-407.
Mating Connector: Framatome 65240-007
.
Pin Signal Name
1 GND
2 PWM0
3 BKLEN#
GND
5 GND
4
6 BKLSAFE
7 BKLSAFE
PL5 – STN Bias connector
Connector: Framatome 76384-404.
Mating Connector: Framatome 65240-004
.
Pin Signal Name
1 NEGBIAS
2 GND
3 GND
4 POSBIAS
