VIPER Connectors, LEDs and jumpers

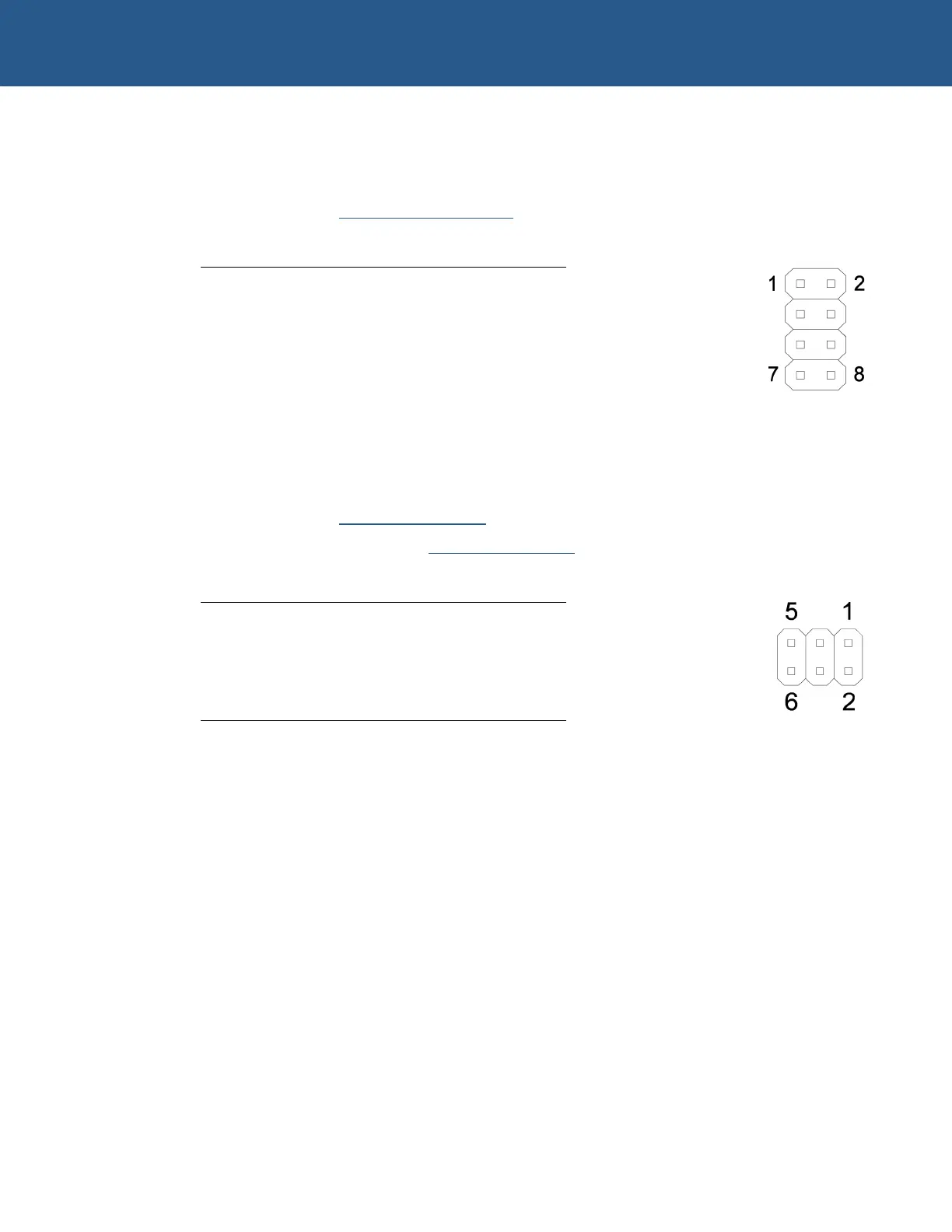

PL1 – 10/100BaseTX Ethernet connector
Connector: Oupiin 2015-2 X 4 G D, 8-way, 2.54mm (0.1”) x 2.54mm (0.1”) dual row
header.
Mating connector: Framatome 71600-008
.
Pin Signal Name Pin Signal Name
1 TX+ 2 TX-
3 RX+ 4 RJ-2
5 RJ-2 6 RX-
7 RJ-1 8 LANGND
PL2 – Ethernet status LED's connector
Connector: Molex 87089-0616, 6-way, 2mm (0.079”) x 2mm (0.079”) pin header.
Mating connector: Molex 51110-0650.
Mating connector crimps (x6): Molex 50394-8100.
Pin Signal Name Pin Signal Name
1 3.3V 2 Link
3 3.3V 4 Activity
5 NC 6 NC
© 2004 Arcom Issue H 61
