VIPER Connectors, LEDs and jumpers
PL3 – LCD connector
Connector: Oupiin 3214-40GRB, 40-way, 1.27mm (0.05”) x 2.54mm (0.1”) right angled
boxed header.
Mating connector: Oupiin 1203-40GB.
Pin Signal Name Pin Signal Name
1 BLKEN# 2 BLKSAFE
3 GND 4 GND
5 NEGBIAS 6 LCDSAFE
7 GPIO16/PWM0 8 POSBIAS
9 GND 10 GND
11 FPD0 12 FPD1
13 FPD2 14 FPD3
15 GND 16 GND
17 FPD4 18 FPD5
19 FPD6 20 FPD7
21 GND 22 GND
23 FPD8 24 FPD9
25 FPD10 26 FPD11
27 GND 28 GND
29 FPD12 30 FPD13
31 FPD14 32 FPD15
33 GND 34 GND
35 FCLK 36 BIAS / DE
37 GND 38 GND
39 PCLK 40 LCLK

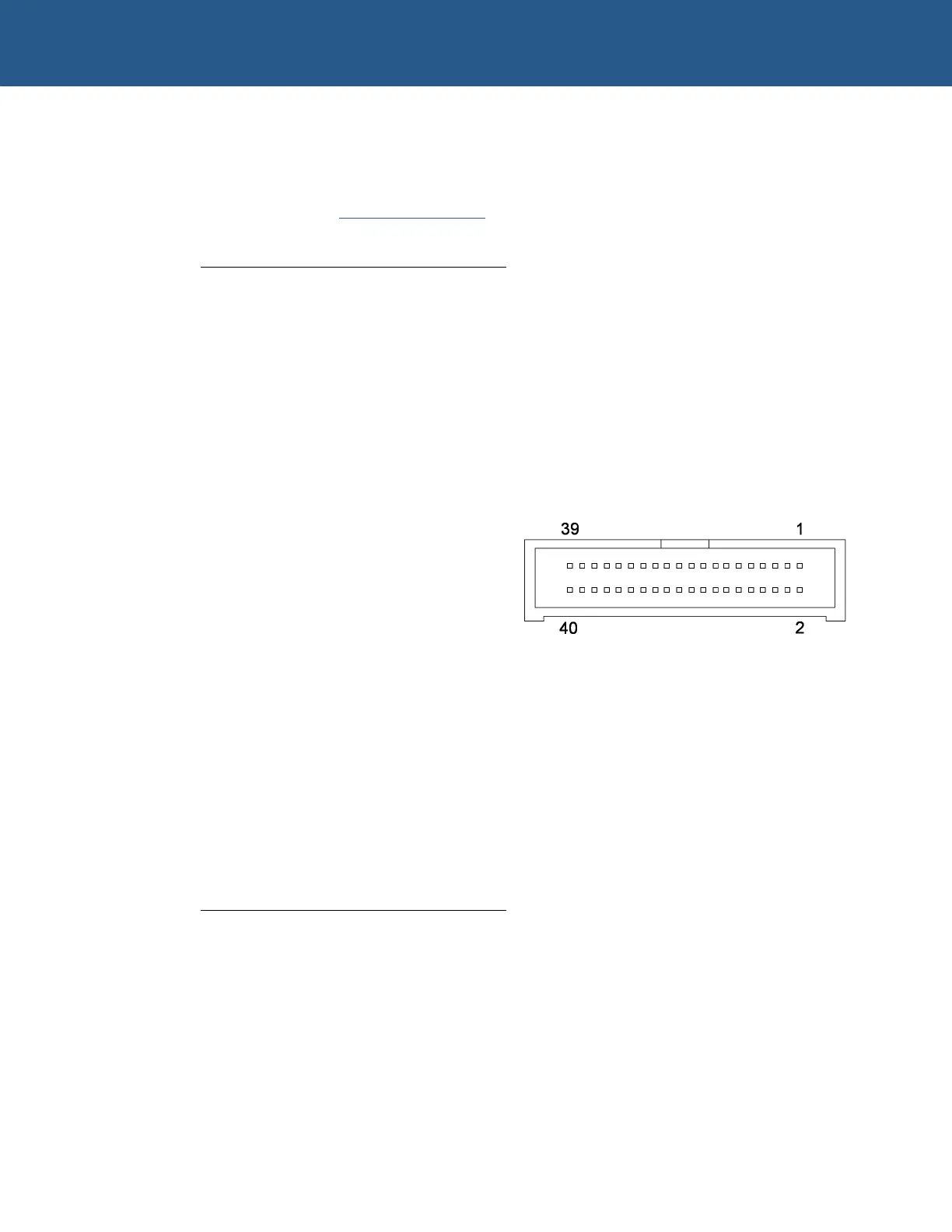

As viewed from the connector pins
