VIPER Connectors, LEDs and jumpers

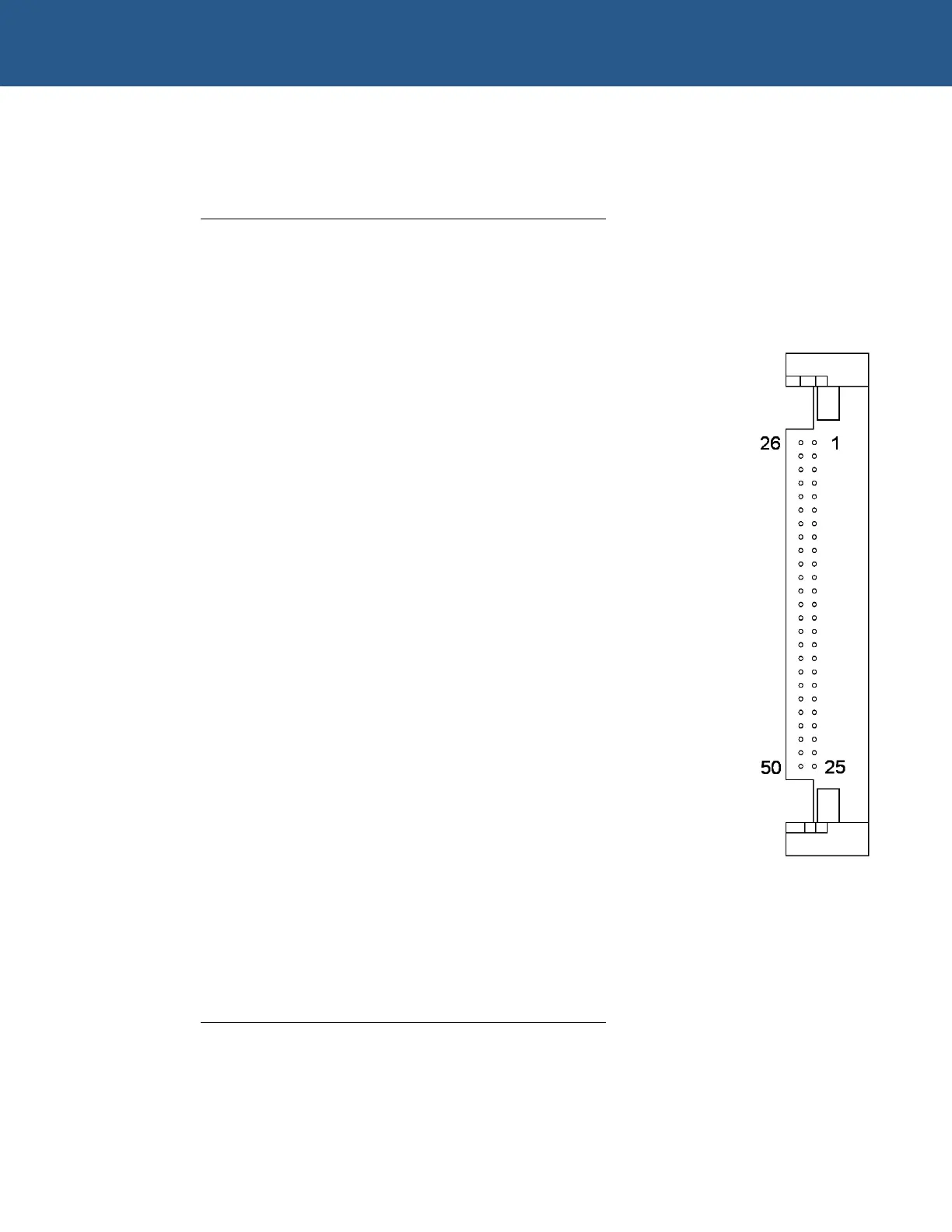

PL5 – CompactFLASH connector
Connector: 3M N7E50-A516HE-50, 50-way CompactFLASH Type II Connector.
Pin Signal Name Pin Signal Name
26 /CD1 1 GND
27 D11 2 D03
28 D12 3 D04
29 D13 4 D05
30 D14 5 D06
31 D15 6 D07
32 /CE2 7 /CE1
33 /VS1 (GND) 8 A10
34 /IORD 9 /OE
35 /IOWR 10 A09
36 /WE 11 A08
37 RDY/BSY 12 A07
38 +3.3V 13 +3.3V
39 GND 14 A06
40 N/C 15 A05
41 /RESET 16 A04
42 WAIT 17 A03
43 /INPACK (NU) 18 A02
44 /REG 19 A01
45 N/C 20 A00
46 N/C 21 D00
47 D08 22 D01
48 D09 23 D02
49 D10 24 /IOCS16
50 GND 25 /CD2
