VIPER Connectors, LEDs and jumpers

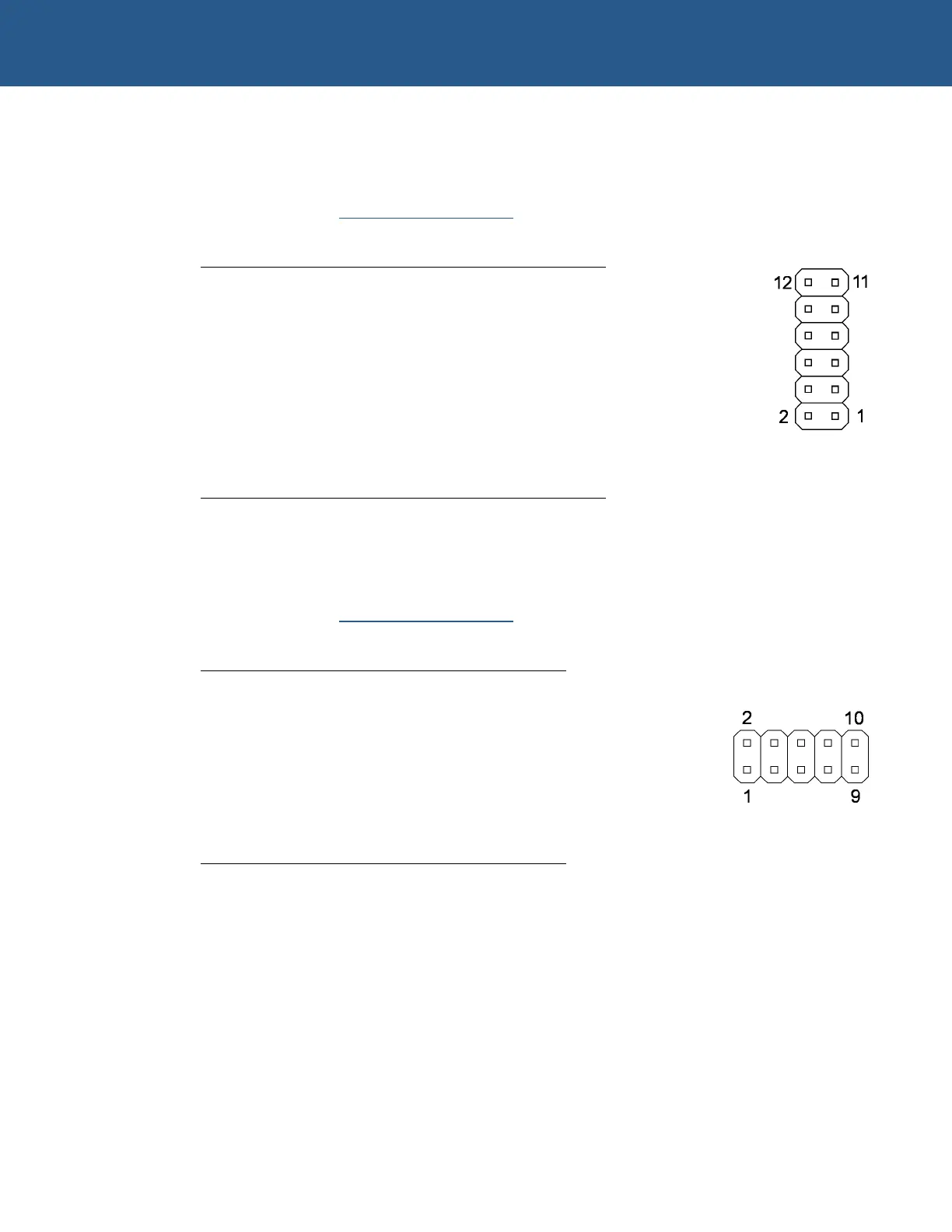

PL6 – Audio connector
Connector: Oupiin 2015-2 X 6 G D, 12-way, 2.54mm (0.1”) x 2.54mm (0.1”) dual row
header.
Mating connector: Framatome 71600-012
.
Pin Signal Name Pin Signal Name
1 LEFT IN 2 LEFT OUT
3 GND 4 GND
5 RIGHT IN 6 RIGHT OUT
7 GND 8 AMP LEFT OUT
9 GND 10 MIC IN
11 AMP RIGHT OUT 12 GND
PL7 – USB connector
Connector: Oupiin 2015-2 X 5 G D, 10-way, 2.54mm (0.1”) x 2.54mm (0.1”) dual row
header.
Mating connector: Framatome 71600-010
.
Pin Signal Name Pin Signal Name
1 VBUS-1 2 VBUS-2
3 DNEG-1 4 DNEG-2
5 DPOS-1 6 DPOS-2
7 GND 8 GND
9 SHIELD 10 SHIELD
© 2004 Arcom Issue H 65
