VIPER Connectors, LEDs and jumpers

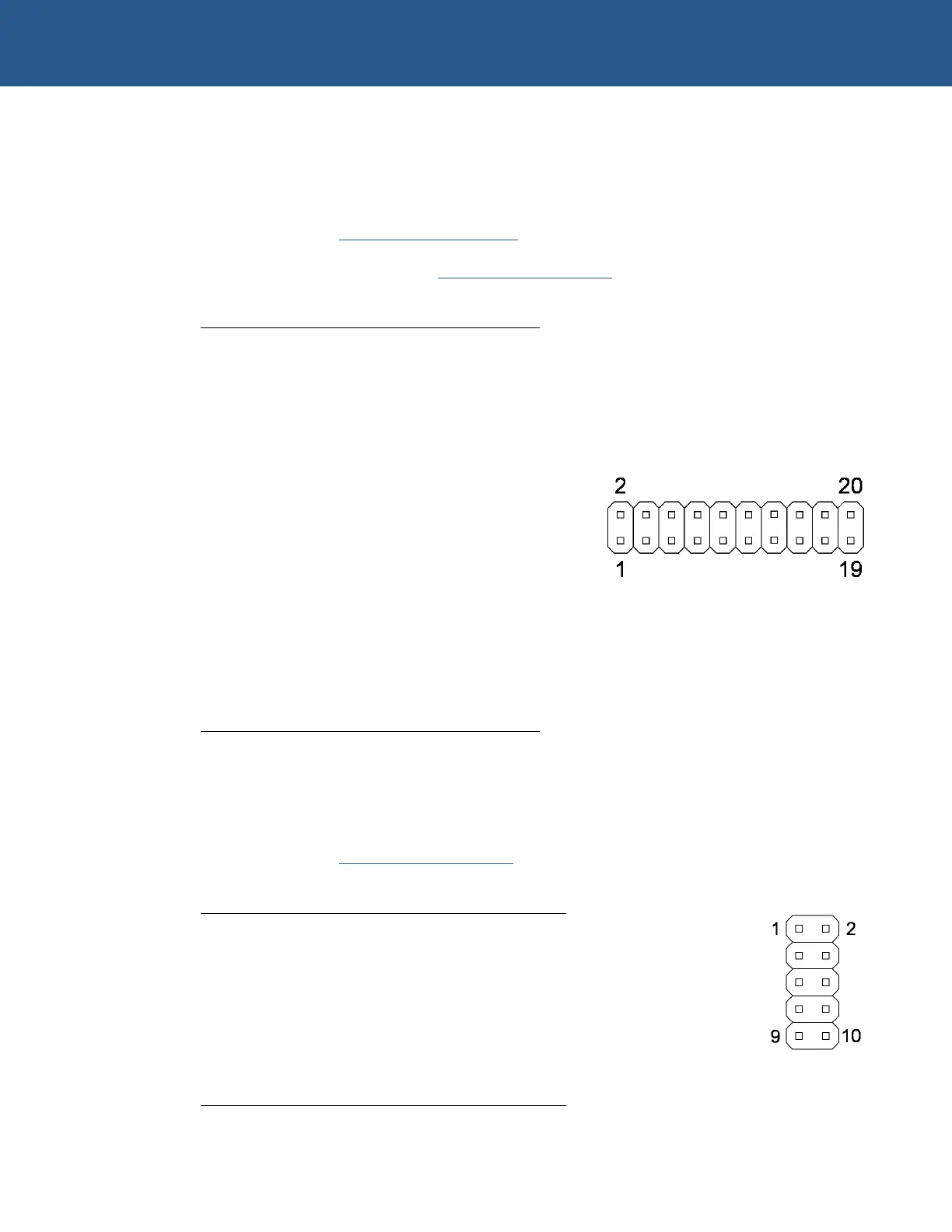

PL9 – GPIO connector
Connector: Oupiin 2115-2 X 10 G D N, 20-way, 2mm (0.079”) x 2mm (0.079”) dual row
header.
Mating connector: Framatome 69307-020.
Mating connector crimps (x20): Framatome 77138-001
.
Pin Signal Name Pin Signal Name
1 +5V 2 +5V
3 IN0 4 IN1
5 IN2 6 IN3
7 IN4 8 IN5
9 IN6 10 IN7
11 OUT0 12 GND
13 OUT0_
INVERTED
14 OUT1
15 OUT2 16 OUT3
17 OUT4 18 OUT5
19 OUT6 20 OUT7
PL10 – JTAG connector
Connector: Oupiin 2015-2 X 5 G D, 10-way, 2.54mm (0.1”) x 2.54mm (0.1”) dual row
header.
Mating connector: Framatome 71600-010
.
Pin Signal Name Pin Signal Name
1 VCC3 2 NC
3 GND 4 nTRST
5 NC 6 TDI
7 TDO 8 TMS
9 TCLK 10 NC
