D-4 TECHNICAL SPECIFICATION D-4

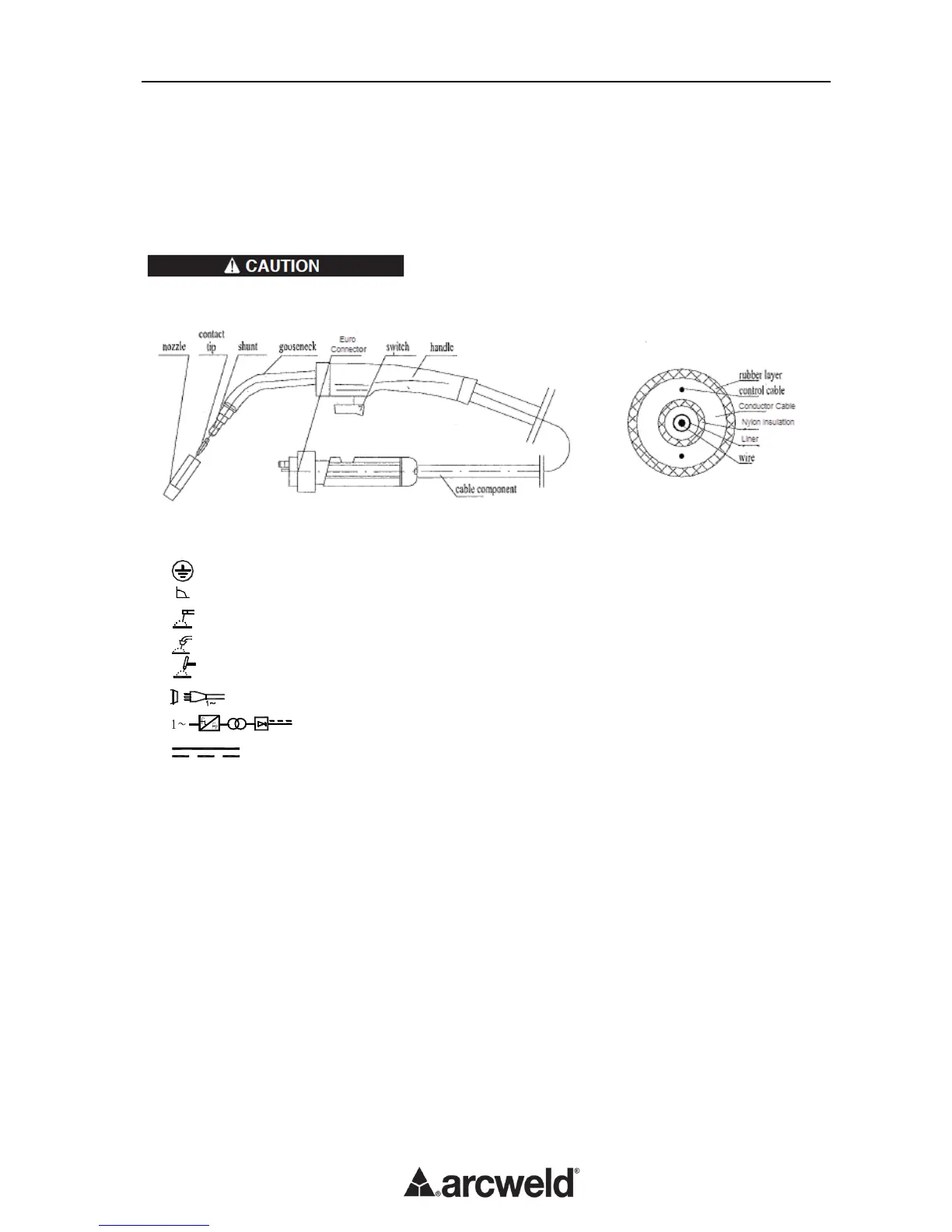

LG150C MIG Torch (Gun) Illustration
The LG150C MIG torch is composed of the Euro connector, connecting cable and handle.
There is a gooseneck installed in the handle of the torch. The gas diffuser distributes shielding gas
in the nozzle to provide even shield for the welding arc. A switch on the handle controls the welding
output.
* Turn off the power before assemble/disassemble or replacement of the torch components.
* The cable, nozzle and tip need to be replaced as required.
Graphics and their meanings
Earth / Ground
Descending
MMAW (Stick) welder
GMAW (MIG) welder
GTAW (TIG) welder
1 Single phase AC power source
Single phase inverter---transformer---rectifier
DC current
＋: “＋” Output connector
－: “－” Output connector
X: Duty Cycle
I1: Rated Input Current
I2: Rated Welding Current
P1: Rated Input Power
U0: Rated Open Circuit Voltage
U1: Rated Input Voltage
U2: Rated Load V
~50/60 Hz: AC, Rated frequency 50 Hz, workable frequency 60 Hz.
V: Voltage (V)
A: Current (A)
