Optional: Connecting Digital I/O

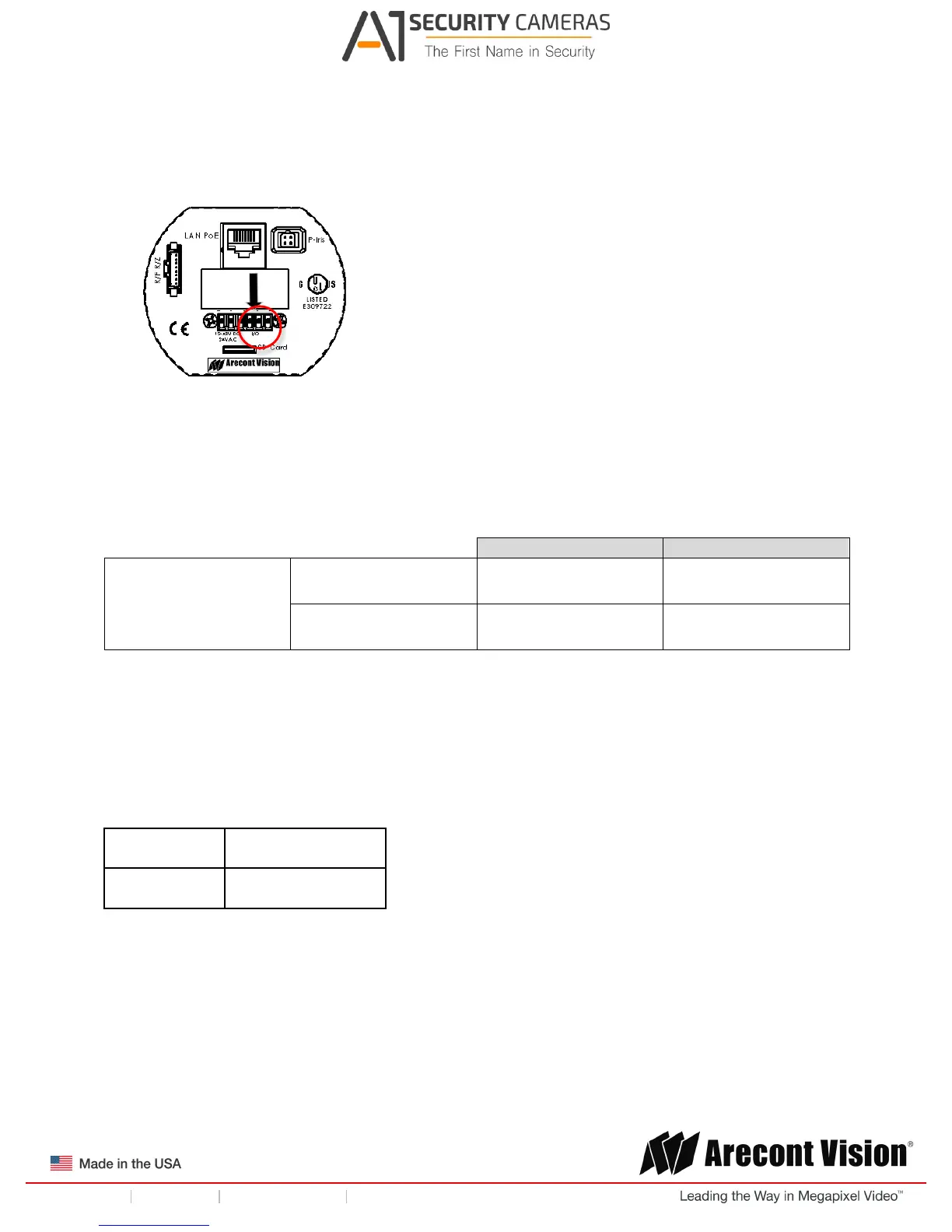

1. To use digital I/O, connect digital I/O with pigtail cable connector as shown in Image 3.
Image 3
NOTE: MegaVideo
®
G5 supports digital input but no digital output. See Table 1 for electrical
characteristics.
!
Electrical Characteristics
MIN
MAX
Input Voltage (V)
(Measured between +
and – terminals)
ON
2.9
6.3
OFF!
0!
1.3!
Table%1%
!
NOTE: The digital input is electrically isolated from the rest of the camera’s electrical circuitry via
general-purpose photo couplers. The input is additionally protected with a serial 250 Ohm resistor, and
a de-bouncing circuit. Duration of any input signal should be at least 5 ms to comply with the
requirements of the de-bouncing circuit.
NOTE: Table 2 shows the cable color for digital input.
Green
Digital IN +
Black
Digital IN -
Table 2
