Argo AT Series User Manual

18

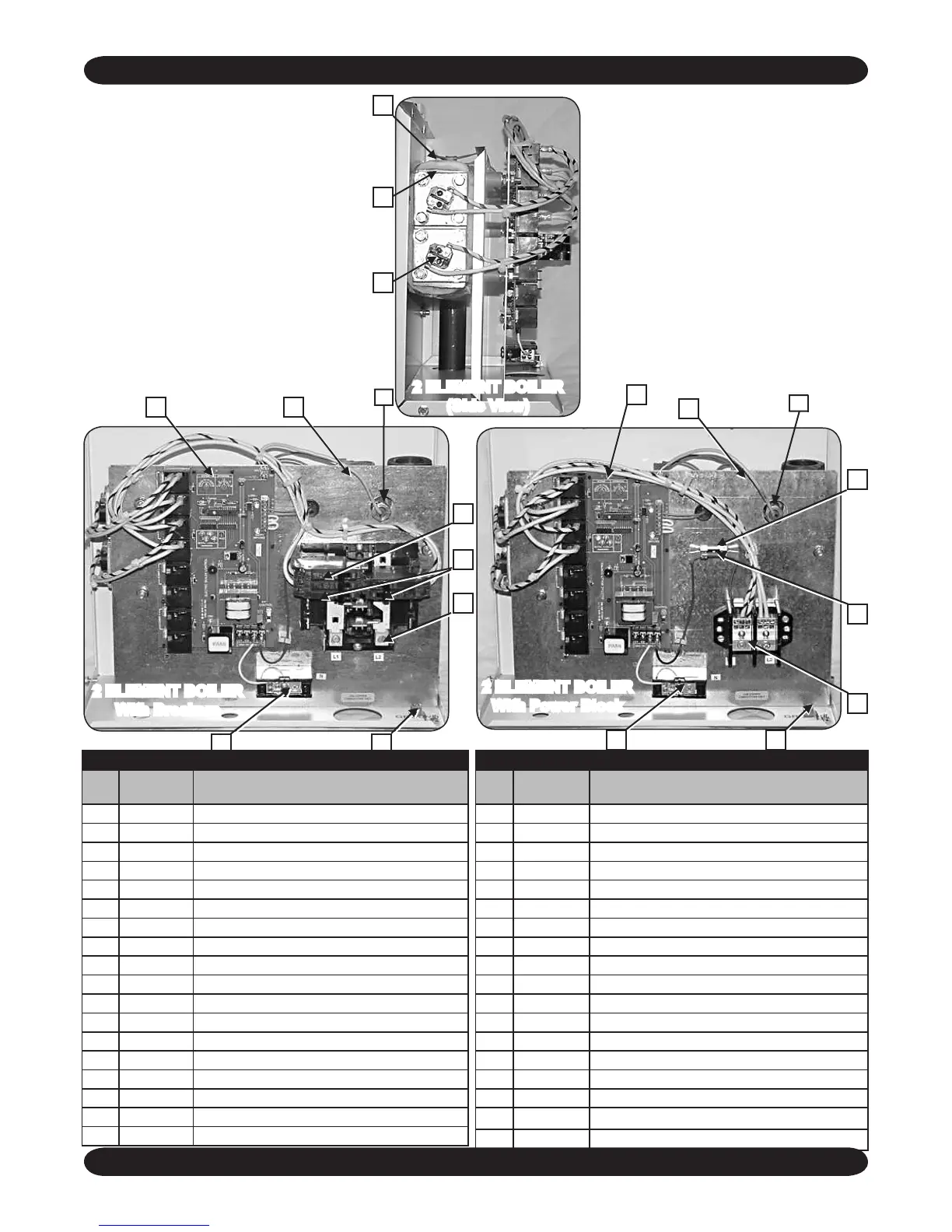

PARTS LIST - 2 ELEMENT ELECTRIC BOILERS
2 ELEMENT BOILER
(Side View)
3
2
1
6
7
4
5
10
9
8
6
7
4
5
10
9
8
2 ELEMENT BOILER
With Power Block
2 ELEMENT BOILER
With Breakers
4 5
6
7
10
9
8
4 5
6
7
10
9
8
2 Element Electric Boiler w/Breakers
Item
Part
Number
Description
1 S47 Safety Limit Control (High Limit - Fixed Temp)
2 G12 Gasket - Heating Element
3 E13 Heating Element - 3 KW/240 Volt
E14 Heating Element - 4 KW/240 Volt
E15 Heating Element - 5 KW/240 Volt
E16 Heating Element - 6 KW/240 Volt
4 Z3002 Control Board - 2 Element Boiler
5 240004757 RTD Sensor
6 B194 Neutral Terminal Block
7 L9 Ground Connection Lug
8 B28 Circuit Breaker 15 A - 1 Pole - G.E. THQP 115
9 B27 Circuit Breaker 40 A - 2 Pole - G.E. THQP 240
10 I25 Load Center Assembly - G.E. TLM812U2
11 240004756 Brass Well
- V1 Relief Valve - 30 PSI
- 1260006 Temperature/Pressure Gauge
- C57 Pressure Vessel - Cast Iron, 2 Element
- Z302A Control Panel Assembly, 2 Element (Complete)
2 Element Electric Boiler w/Power Block
Item
Part Num-
ber
Description
1 S47 Safety Limit Control (High Limit - Fixed Temp)
2 G12 Gasket - Heating Element
3 E13 Heating Element - 3 KW/240 Volt
E14 Heating Element - 4 KW/240 Volt
E15 Heating Element - 5 KW/240 Volt
E16 Heating Element - 6 KW/240 Volt
4 Z3002 Control Board - 2 Element Boiler
5 240004757 RTD Sensor
6 B194 Neutral Terminal Block
7 L9 Ground Connection Lug
8 F3 Fuse Block, 1/4” x 1-1/4” Fuse, 300V
9 F4 Fuse, 10amp, Ceramic, ABC-10
10 P8 Power Distribution Block
11 240004756 Brass Well
- V1 Relief Valve - 30 PSI
- 1260006 Temperature/Pressure Gauge
- C57 Pressure Vessel - Cast Iron, 2 Element
- Z313 Control Panel Assembly, 2 Element (Complete)
11
11

Argo AT Series Specifications

General

Brand	Argo
Model	AT Series
Category	Boiler
Language	English
