PARTS LIST - 4 ELEMENT ELECTRIC BOILERS
2
1
3

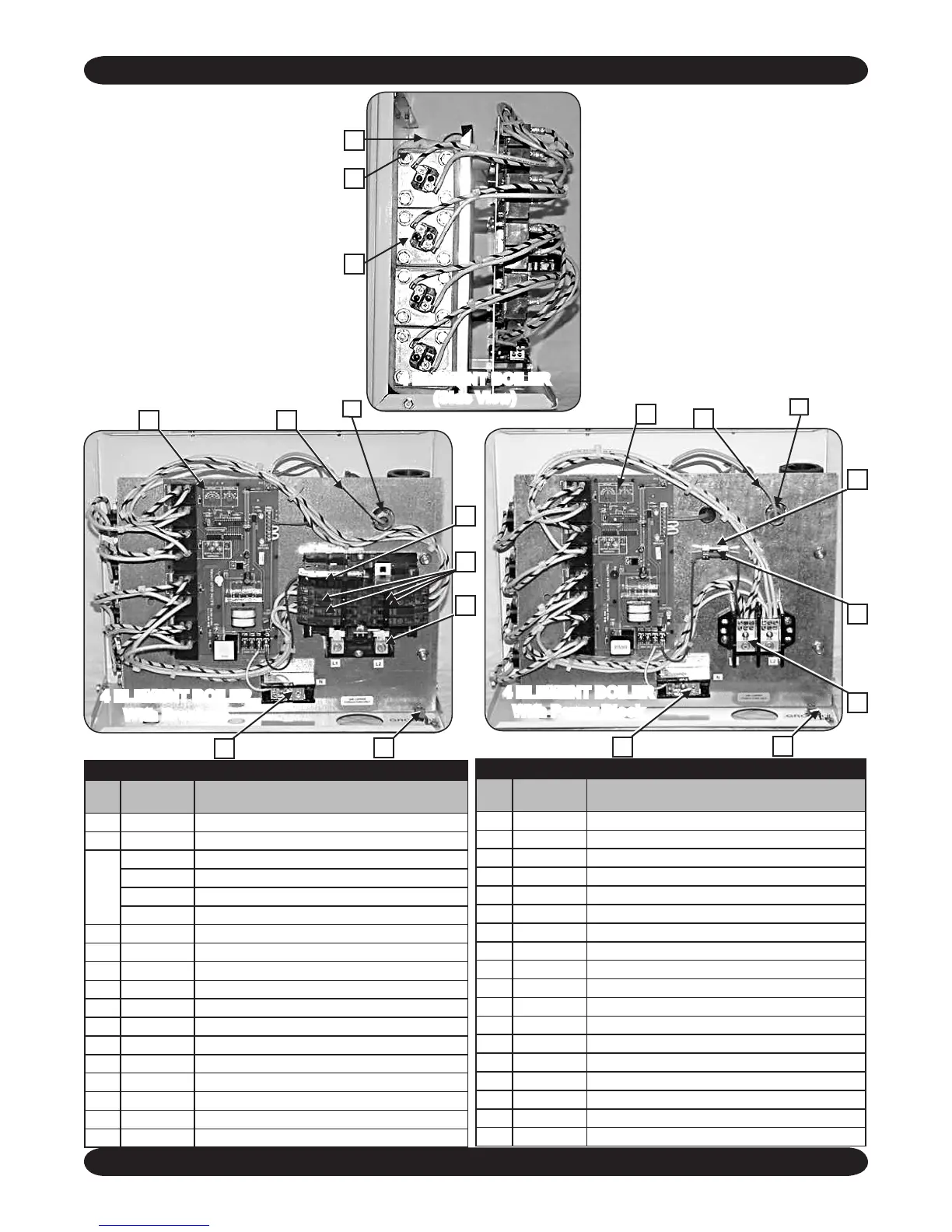

4 ELEMENT BOILER
(Side View)
4 Element Electric Boiler w/Breakers
Item
Part
Number
Description
1 S47 Safety Limit Control (High Limit - Fixed Temp)
2 G12 Gasket - Heating Element
3
E13 Heating Element - 3 KW/240 Volt
E14 Heating Element - 4 KW/240 Volt
E15 Heating Element - 5 KW/240 Volt
E16 Heating Element - 6 KW/240 Volt
4 Z300 Control Board - 4 Element Boiler
5 240004757 RTD Sensor
6 B194 Neutral Terminal Block
7 L9 Ground Connection Lug
8 B28 Circuit Breaker 15 A - 1 Pole - G.E. THQP 115
9 B27 Circuit Breaker 40 A - 2 Pole - G.E. THQP 240
10 I25 Load Center Assembly - G. E. TLM812U2
11 240004765 Brass Well
- V1 Relief Valve - 30 P.S.I.
- 1260006 Pressure/Temperature Gauge
- C32 Pressure Vessel - Cast Iron, 4 Element
- Z304A Control Panel Assembly, 4 Element (Complete)
4 Element Electric Boiler w/Power Block
Item
Part
Number
Description
1 S47 Safety Limit Control (High Limit - Fixed Temp)
2 G12 Gasket - Heating Element
3 E13 Heating Element - 3 KW/240 Volt
E14 Heating Element - 4 KW/240 Volt
E15 Heating Element - 5 KW/240 Volt
E16 Heating Element - 6 KW/240 Volt
4 Z300 Control Board - 4 Element Boiler
5 240004757 RTD Sensor
6 B194 Neutral Terminal Block
7 L9 Ground Connection Lug
8 F3 Fuse Block, 1/4” x 1-1/4” Fuse, 300V
9 F4 Fuse, 10amp, Ceramic, ABC-10
10 P8 Power Distribution Block
11 240004756 Brass Well
- V1 Relief Valve - 30 P.S.I.
- 1260006 Pressure/Temperature Gauge
- C32 Pressure Vessel - Cast Iron, 4 Element
- Z314 Control Panel Assembly, 4 Element (Complete)
4 ELEMENT BOILER
With Breakers
4 5
6
7
10
9
8
4 5
6
7
10
9
8
4 ELEMENT BOILER
With Power Block
4
5
6
7
10
9
8
4
5
6
7
10
9
8
11
11
