LOCATING THE BOILER
1.
Boiler is intended for indoor installation only and not
subject to water spray or leakage.
2.
Electric Hydronic Block units are intended to be wall
mounted and provided with mounting brackets for wall
mounting. Use of lag screws or anchor bolts through
holes provided, or on 3/4" plywood panel. On uneven
walls, suggest mounting surface be provided such as
two 2 x 4’s.
3.
Mount surface of Electric Hydronic Block, no closer
than 20 inches to wall surface on left and 20 inches
minimum to wall surface on right or more, depending
on plumbing. Minimum top clearance 16 inches, bottom
10 inches. Allow sufcient room from front of unit
to door or wall to remove cover - at least 12 inches
minimum.
4.
Install unit with minimum clearance from top of unit
to ceiling of 16 inches. If minimum requirements of
space are used, suggested enclosure be exposed to
means of ventilation. Electric Hydronic Block unit must
be mounted level, using top of back plate as leveling
point.
5.
When installed in utility room, door should be wide
enough to allow largest boiler part to enter, or to
permit replacement of another appliance such as water
heater.
6.
Boiler room should be well vented and temperature
maintained between 45-80°F (7-26.5°C).
20”
MIN
20”
MIN
10”
MIN
5’-3”
SUGGESTED
HEIGHT FOR
EASE OF
INSTALLATION

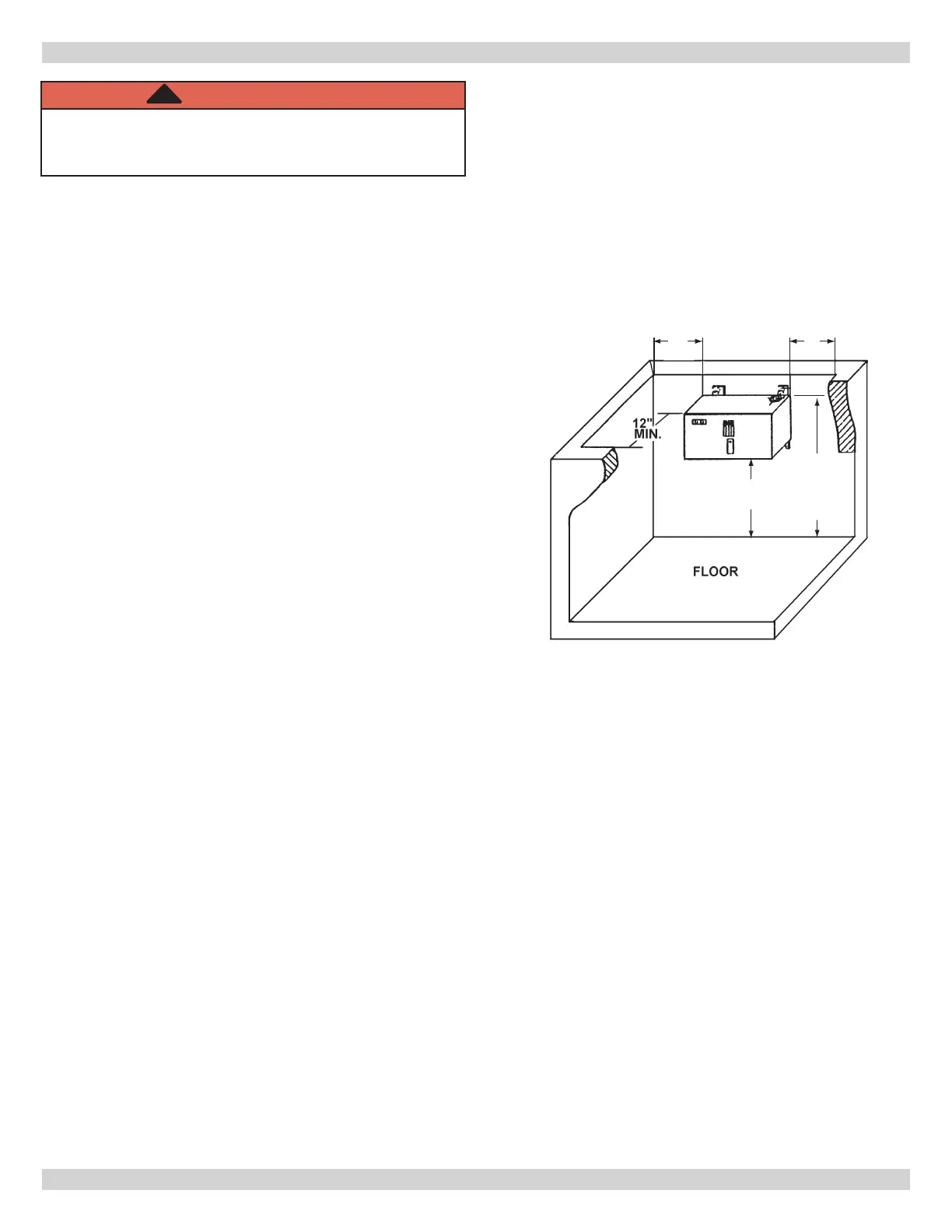

BOILER LOCATION & CLEARANCE DIMENSIONS
NOTE: Greater clearances for access should supercede
re protection clearance.
Minimum clearances to combustible constructions
are:
TOP ........................................................... 16 IN.
FRONT ...................................................... 12 IN.
LEFT SIDE................................................. 20 IN.
RIGHT SIDE .............................................. 20 IN.
REAR ........................................................... 0 IN.
BOTTOM....................................................10 IN.
WARNING
Electrical shock hazard. Do not install boiler under
water source. Failure to do so could result in death
or serious injury.
!
