Step
Procedure

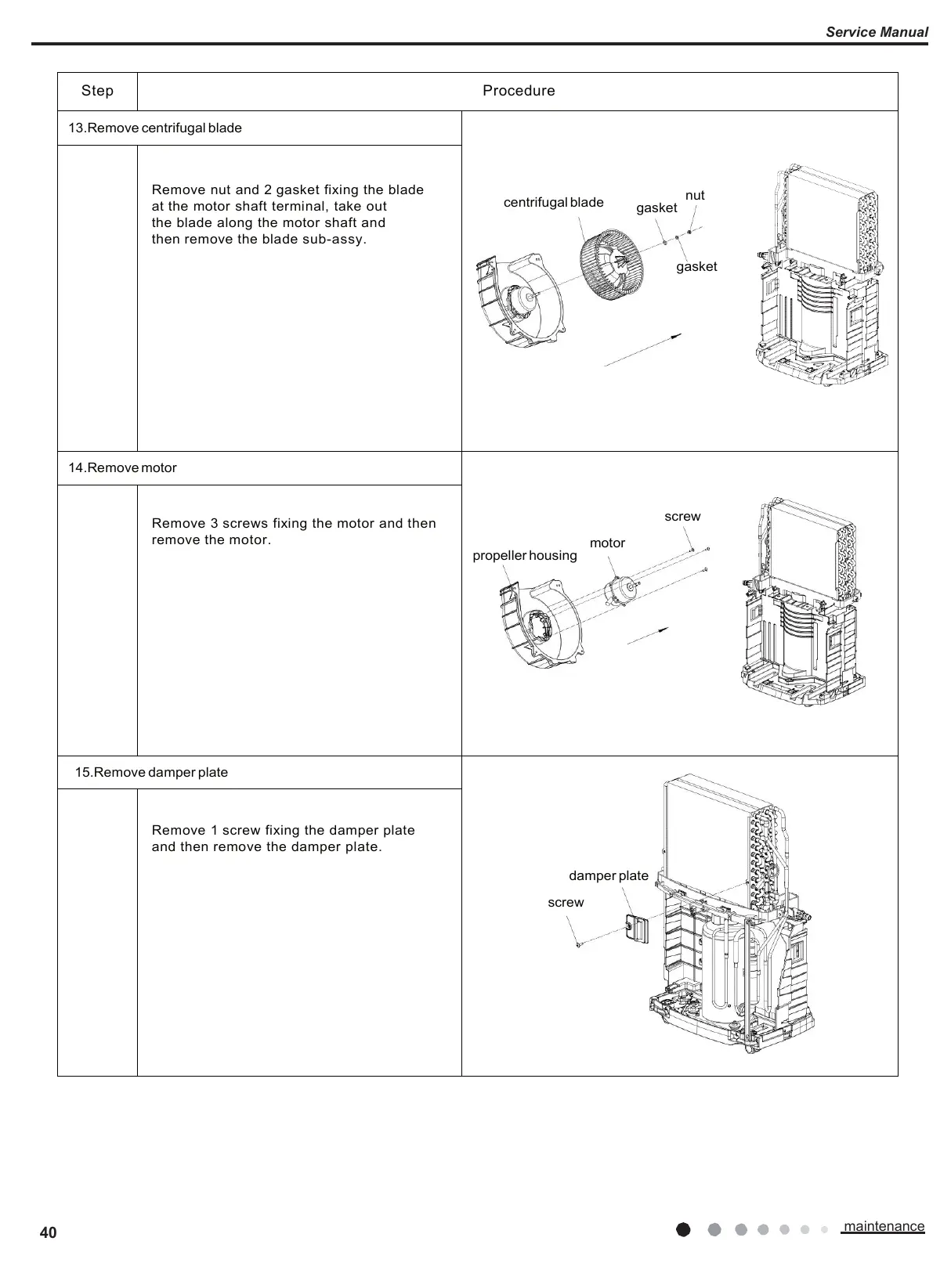

13.Remove centrifugal blade
centrifugal blade
gasket
nut
gasket
Remove nut and 2 gasket fixing the blade
at the motor shaft terminal, take out
the blade along the motor shaft and
then remove the blade sub-assy.
14.Remove motor
screw
motor
propeller housing
Remove 3 screws fixing the motor and then
remove the motor.
15.Remove damper plate
damper plate
screw
Remove 1 screw fixing the damper plate
and then remove the damper plate.
