Step
Procedure

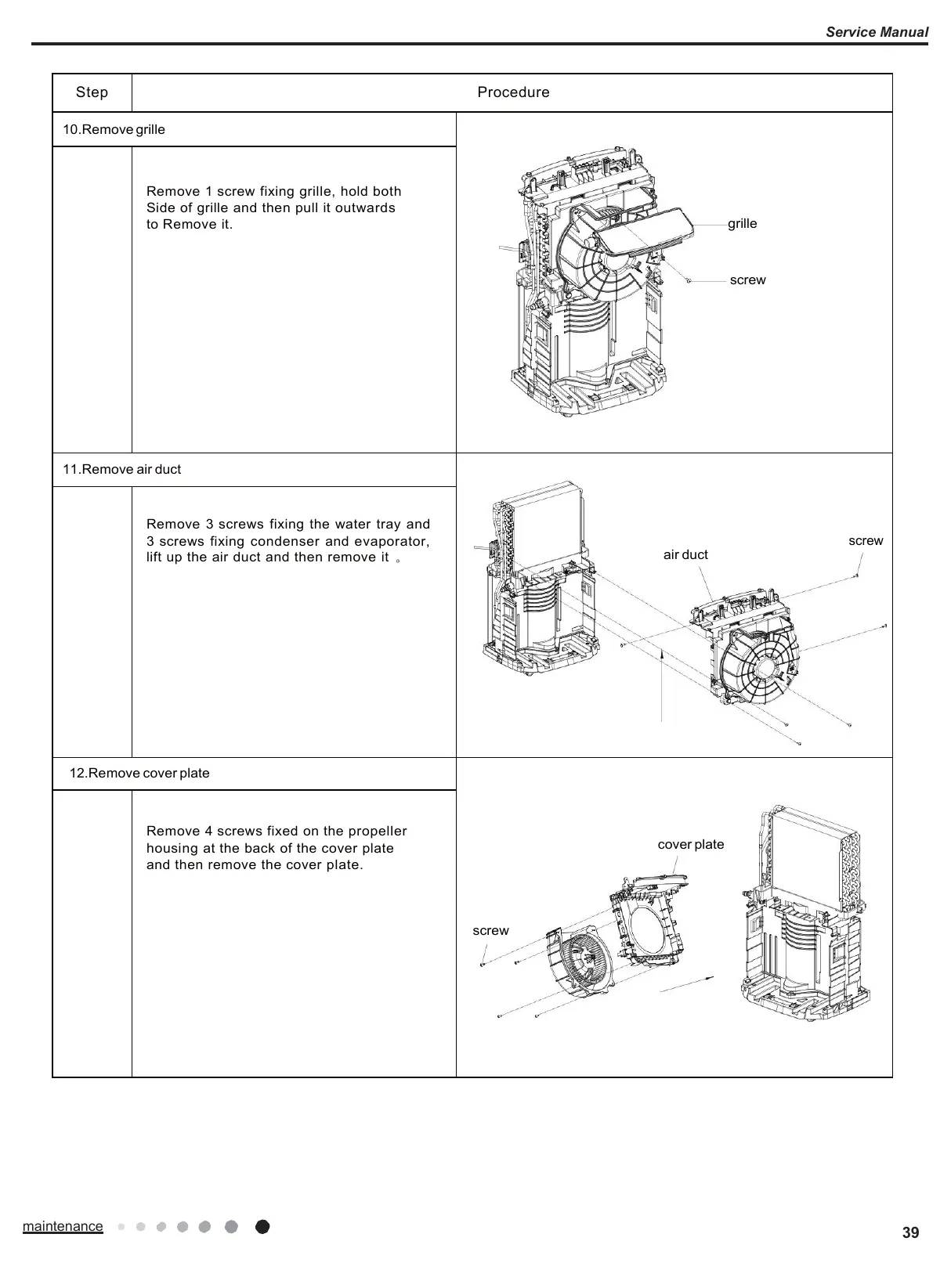

10.Remove grille
grille
screw
Remove 1 screw fixing grille, hold both
Side of grille and then pull it outwards
to Remove it.
11.Remove air duct
screw
air duct
Remove 3 screws fixing the water tray and
3 screws fixing condenser and evaporator,
lift up the air duct and then remove it
12.Remove cover plate
cover plate
screw
Remove 4 screws fixed on the propeller
housing at the back of the cover plate
and then remove the cover plate.
