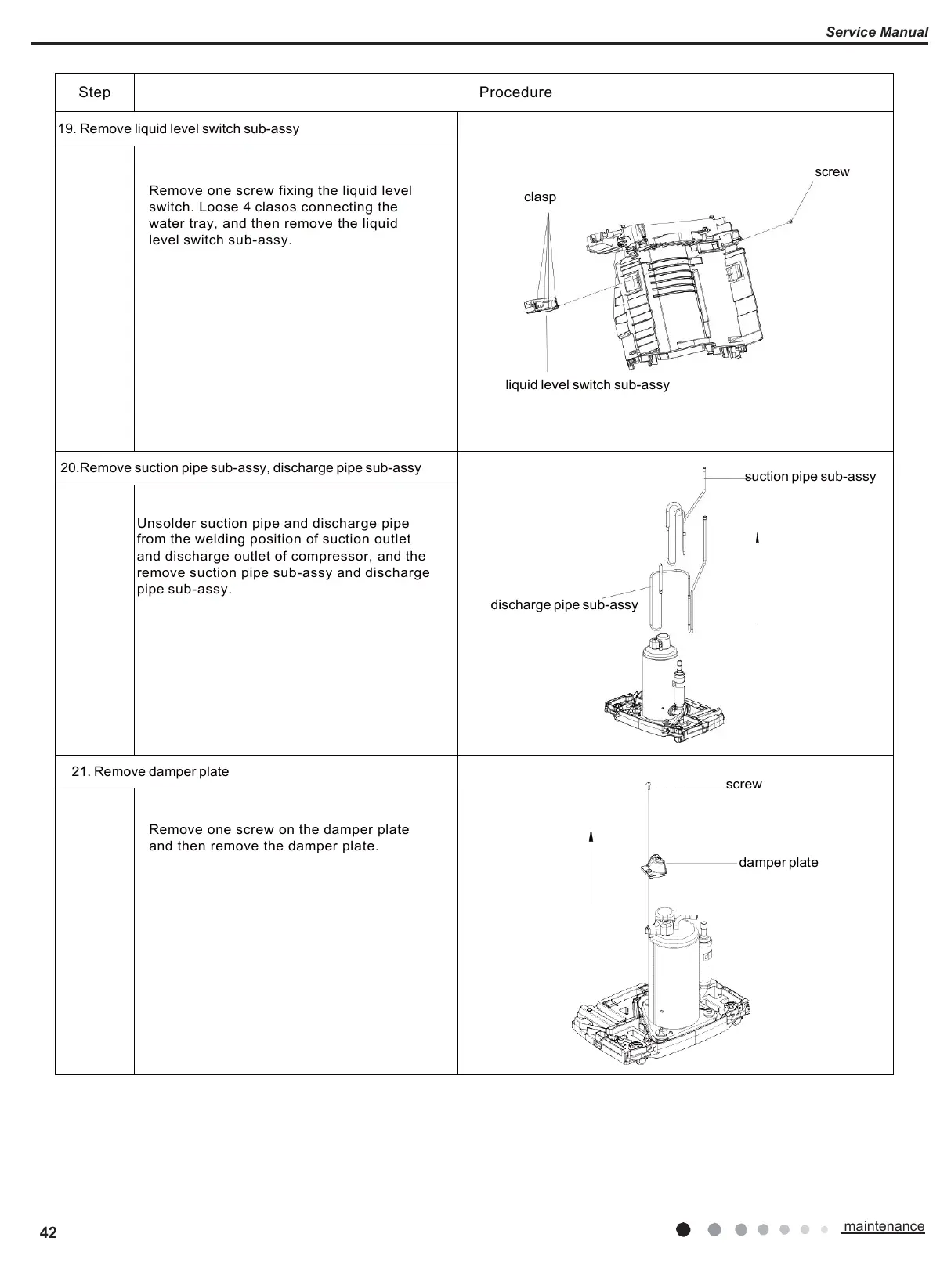

19. Remove liquid level switch sub-assy
screw
clasp
liquid level switch sub-assy
Remove one screw fixing the liquid level
switch. Loose 4 clasos connecting the
water tray, and then remove the liquid
level switch sub-assy.
20.Remove suction pipe sub-assy, discharge pipe sub-assy
suction pipe sub-assy
discharge pipe sub-assy
Unsolder suction pipe and discharge pipe
from the welding position of suction outlet
and discharge outlet of compressor, and the
remove suction pipe sub-assy and discharge
pipe sub-assy.
Remove one screw on the damper plate
and then remove the damper plate.
