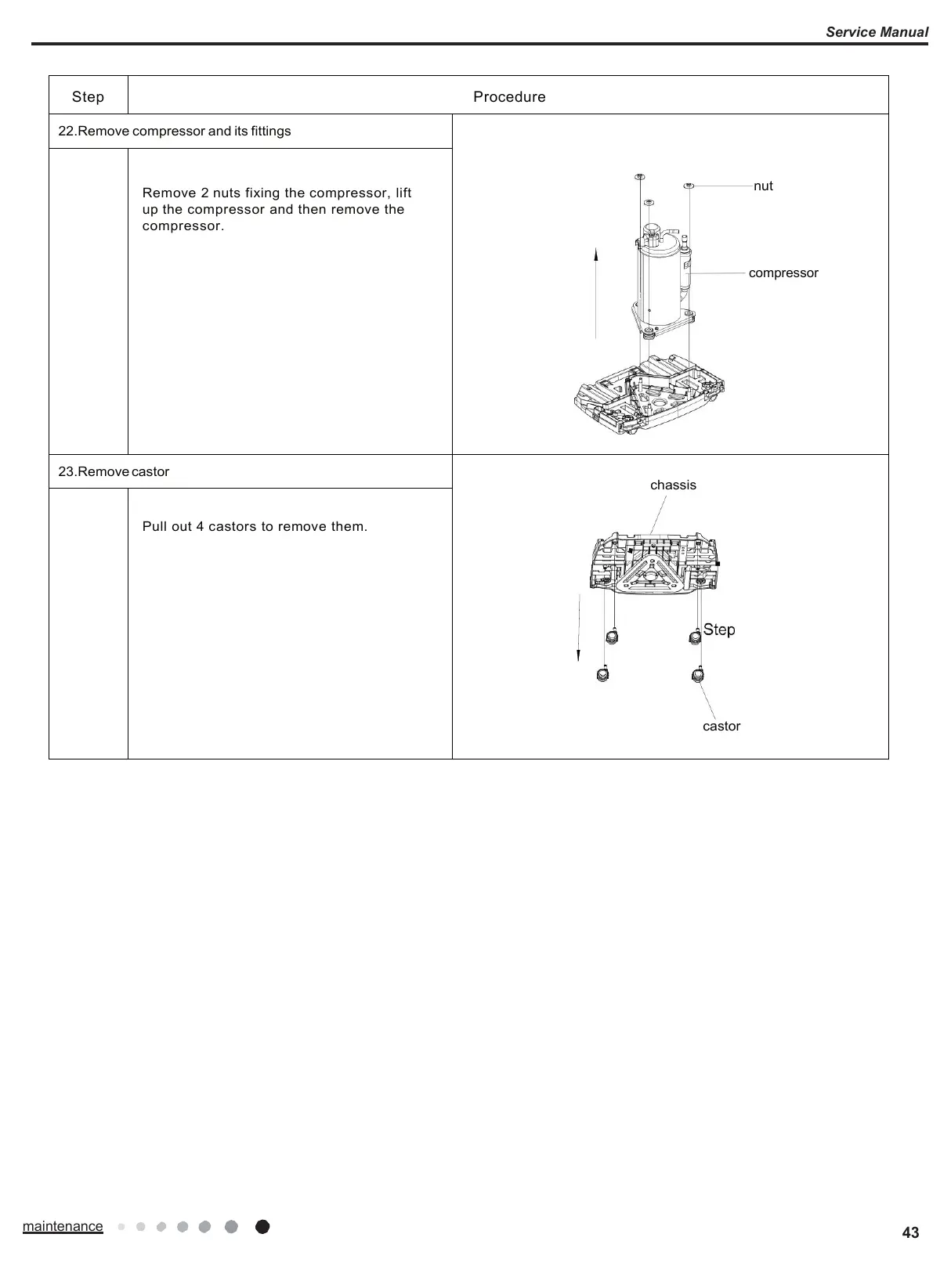

Service Manual
maintenance
43
Step
Procedure
22.Remove compressor and its fittings
nut
compressor
Remove 2 nuts fixing the compressor, lift
up the compressor and then remove the
compressor.
23.Remove castor
chassis
castor
Pull out 4 castors to remove them.
