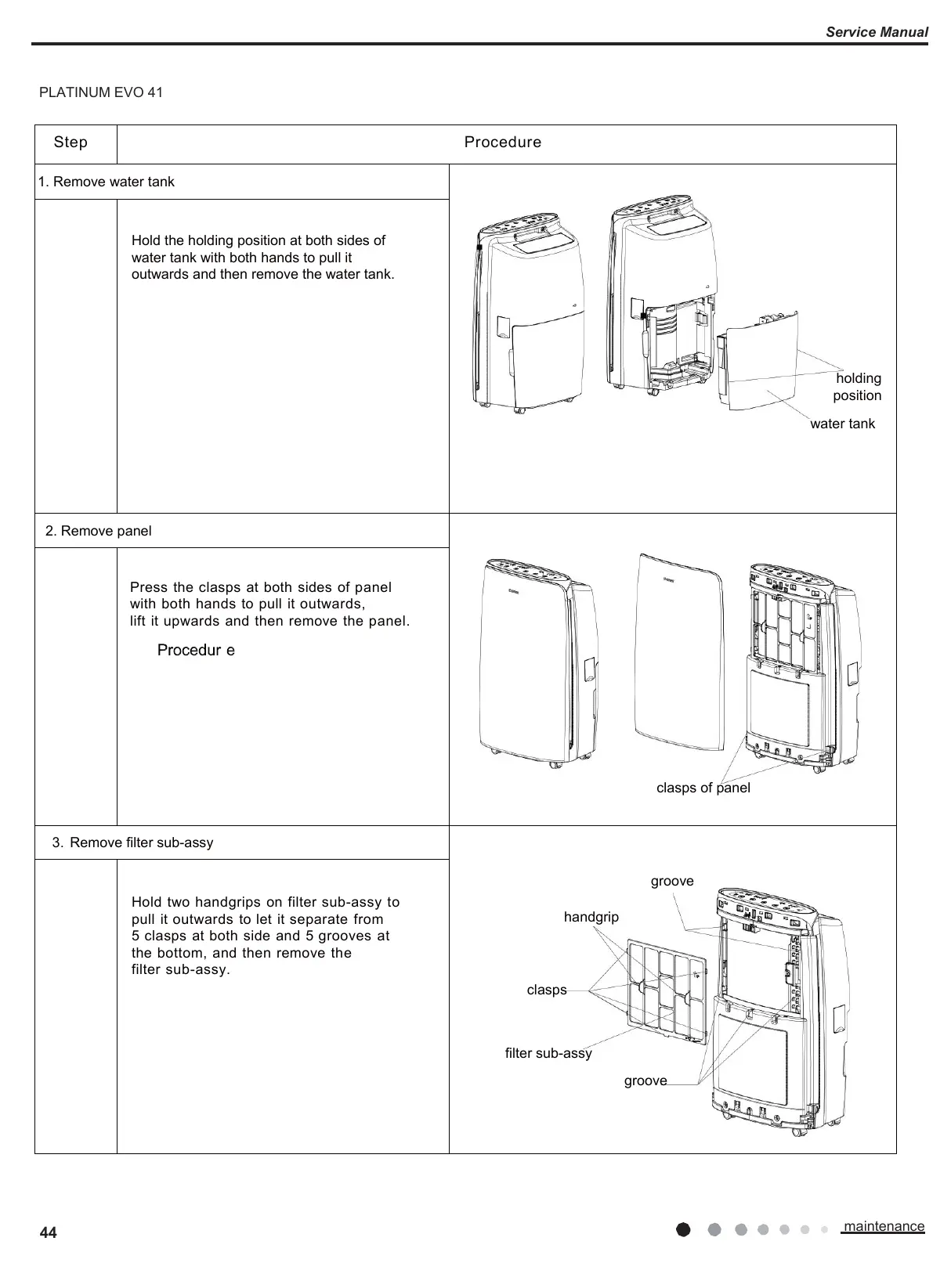

PLATINUM EVO 41
Step
Procedure
1. Remove water tank
holding
position
water tank
Hold the holding position at both sides of
water tank with both hands to pull it
outwards and then remove the water tank.
2. Remove panel
clasps of panel
Press the clasps at both sides of panel
with both hands to pull it outwards,
lift it upwards and then remove the panel.
3. Remove filter sub-assy
groove
handgrip
clasps
filter sub-assy
groove
Hold two handgrips on filter sub-assy to
pull it outwards to let it separate from
5 clasps at both side and 5 grooves at
the bottom, and then remove the
filter sub-assy.
