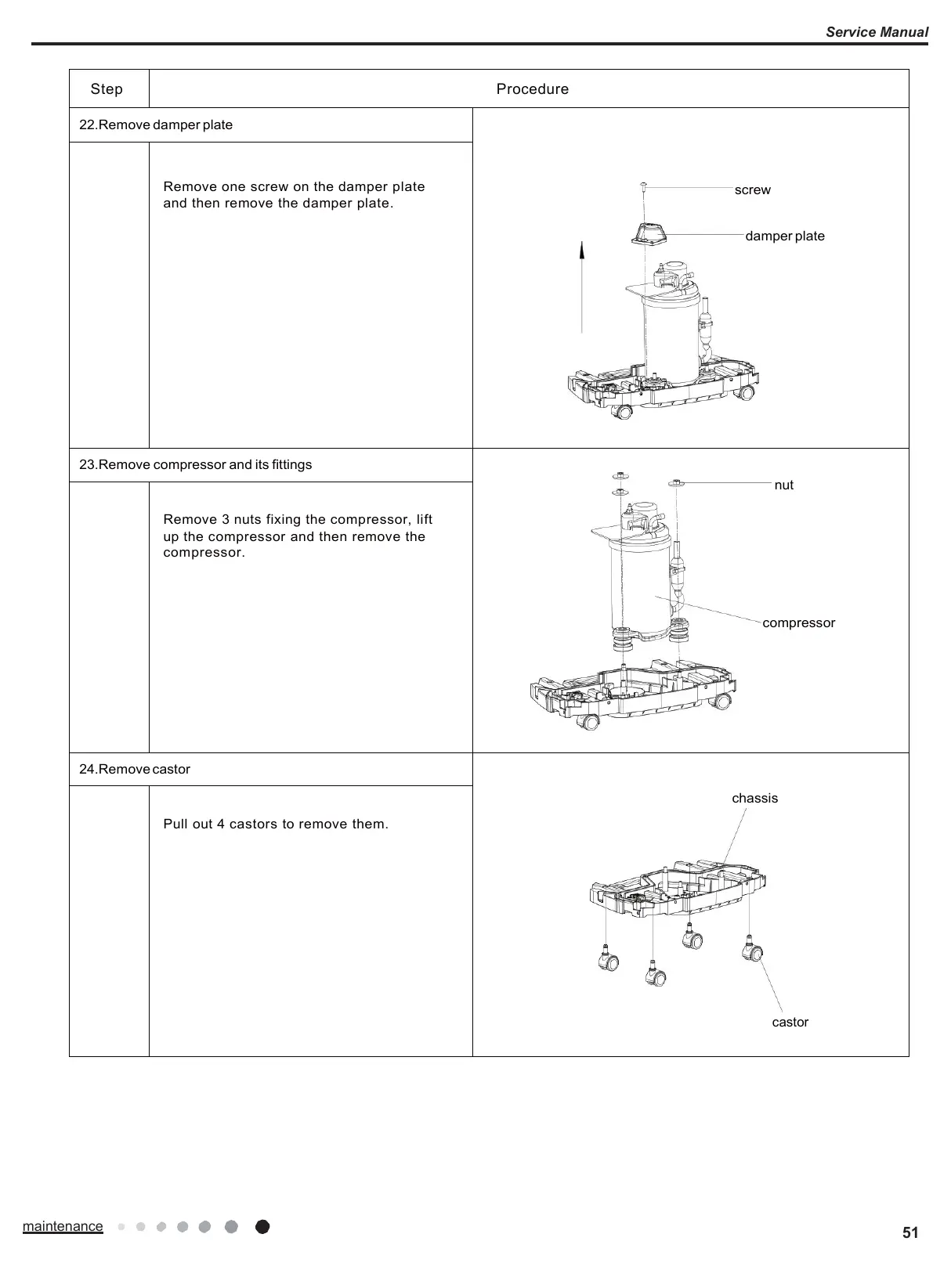

Service Manual
maintenance
51
Step
Procedure
22.Remove damper plate
screw
damper plate
Remove one screw on the damper plate
and then remove the damper plate.
23.Remove compressor and its fittings
nut
compressor
Remove 3 nuts fixing the compressor, lift
up the compressor and then remove the
compressor.
24.Remove castor
chassis
castor
Pull out 4 castors to remove them.
