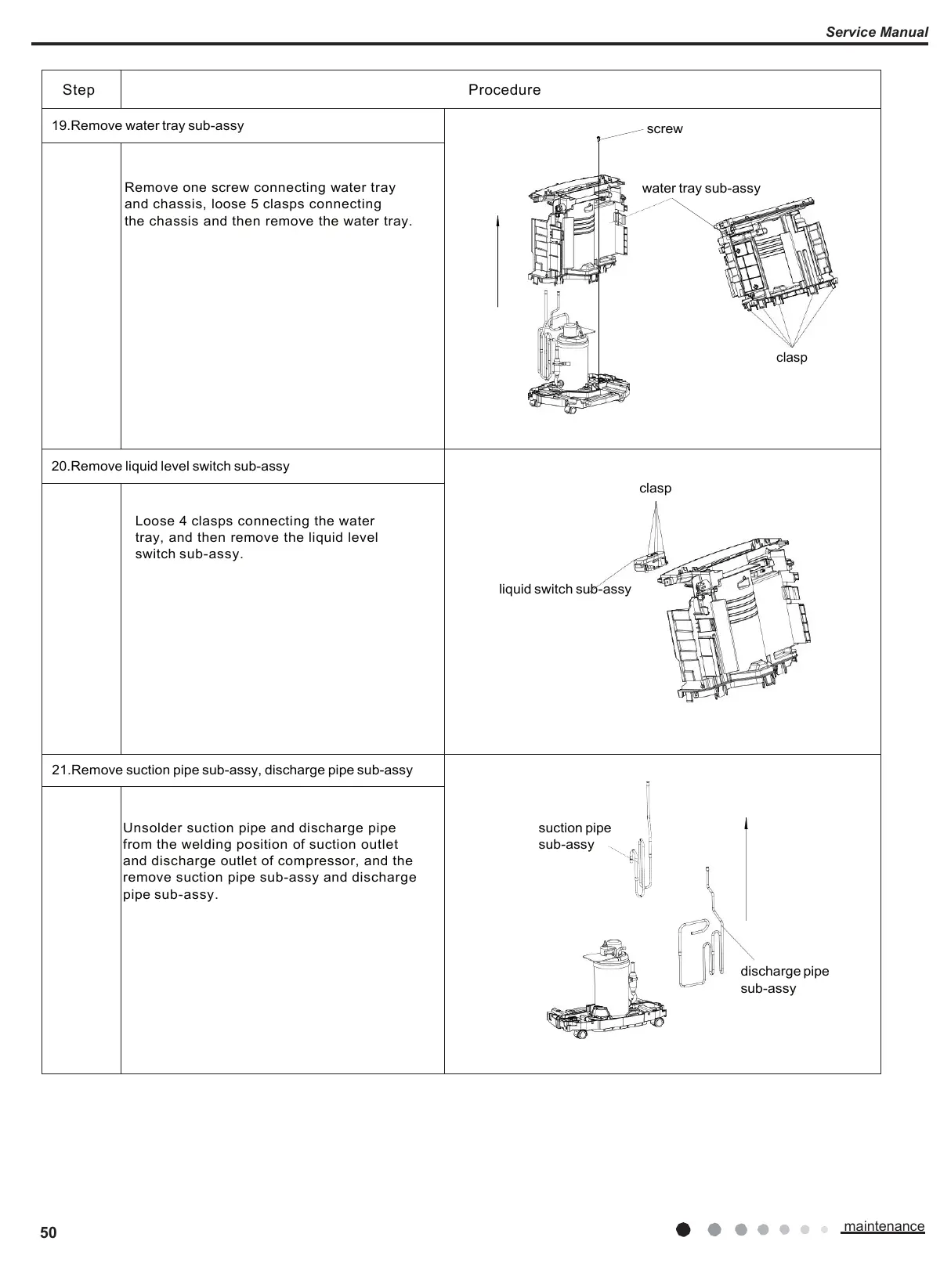

19.Remove water tray sub-assy
screw
water tray sub-assy
clasp
Remove one screw connecting water tray
and chassis, loose 5 clasps connecting
the chassis and then remove the water tray.
20.Remove liquid level switch sub-assy
clasp
liquid switch sub-assy
Loose 4 clasps connecting the water
tray, and then remove the liquid level
switch sub-assy.
21.Remove suction pipe sub-assy, discharge pipe sub-assy
suction pipe
sub-assy
discharge pipe
sub-assy
Unsolder suction pipe and discharge pipe
from the welding position of suction outlet
and discharge outlet of compressor, and the
remove suction pipe sub-assy and discharge
pipe sub-assy.
