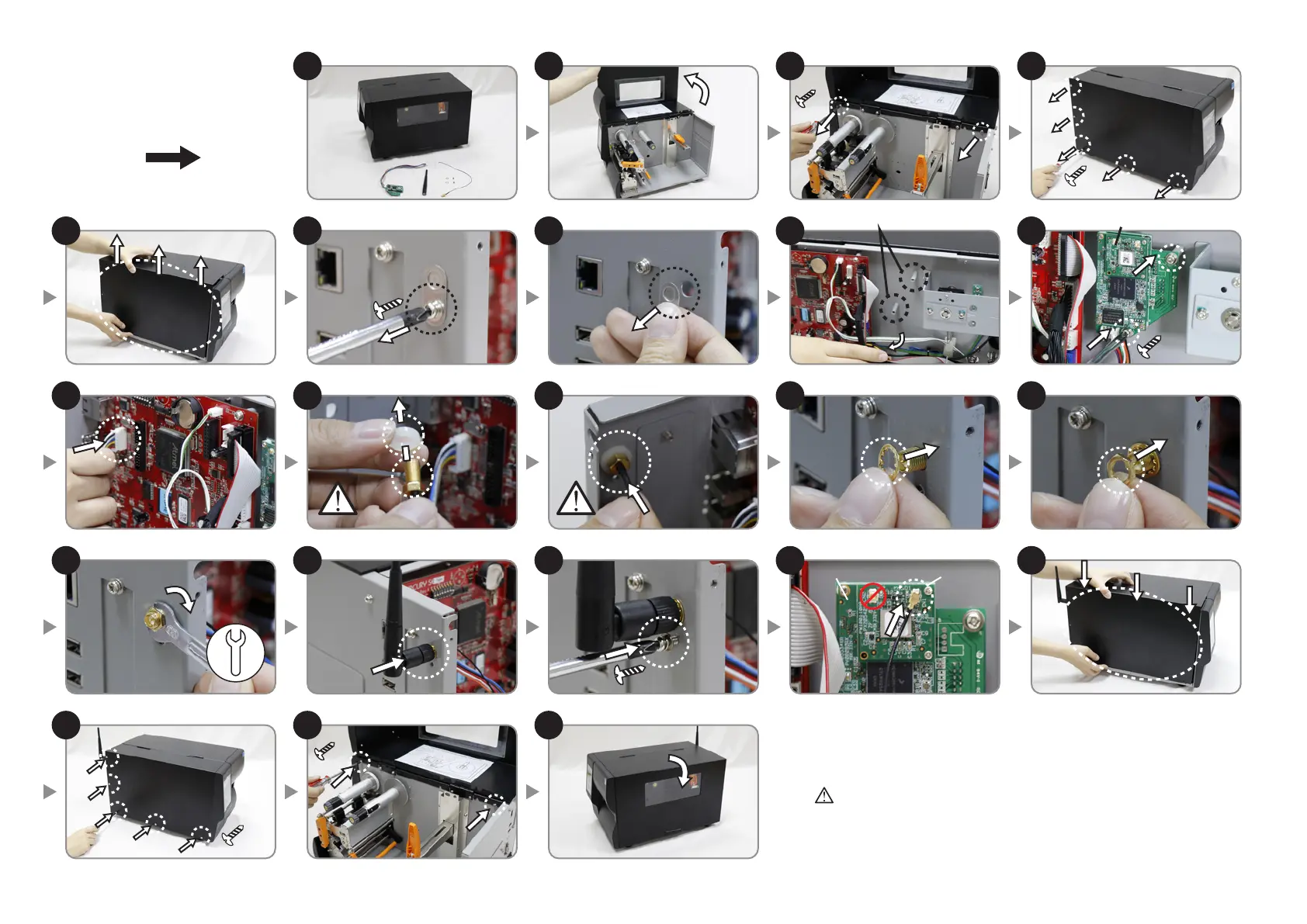

Argox iX4 Series - Wi-Fi Module Installation Steps; Preparation and Initial Assembly; Connecting Wi-Fi Components; Securing and Finalizing Installation

START
1
Wi-Fi Board
2 3 4
5 6 7 8 9
10
11
12 13 14
20
15
21 22
16 17 18 19
x5
x2
Wi-Fi Board Antenna Cable
x5
x2
Bolt
Antenna must be fixed tightly
Wi-Fi Connector
Caution:
Be careful with the steps because the antenna mount is quite fragile.
The antenna may break if you use excessive force when pushing or
pulling it.
x2
Hex Wrench (Spec : 8mm)
