See Figure 5 for all controls and features
locations.
ENGINE / THROTTLE CONTROL
LEVER
See Figure 6.
Controls engine speed and stops engine.
RECOIL STARTER HANDLE
When pulled, manually turns engine
crankshaft and starts engine. See Start The
Engine on page 13.
DEBRIS SCREEN
Collects grass and debris to help keep engine
cooling fins clean.
CUTTER DISC
Holds trimmer line. See Replace Trimmer
Line on page 16.
HEIGHT GUIDE
Adjustable to change trimming height. See
Set Trimming Height on page 11.
HANDLEBAR WING KNOB
Secures upper handlebar to lower handlebar.

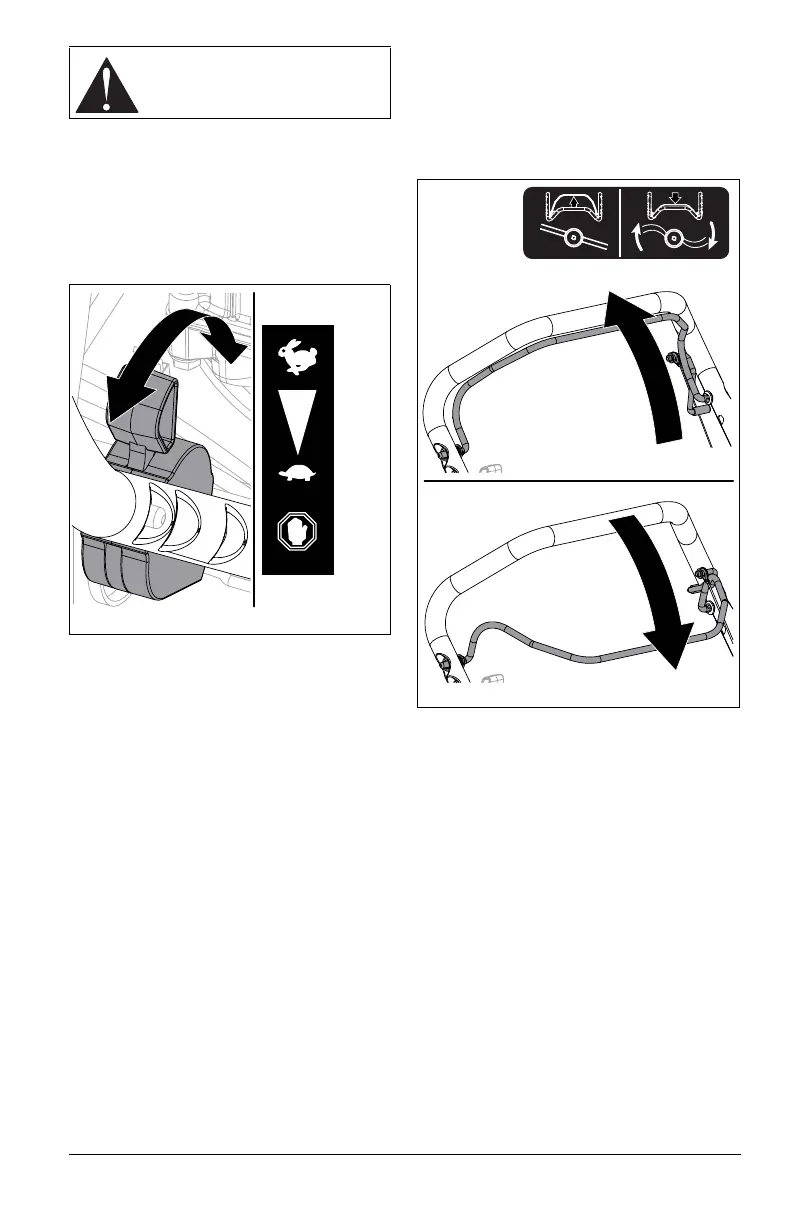

OPERATOR PRESENCE
CONTROL (OPC) LEVER
See Figure 7.
When pulled against handlebar, engages
trimmer head rotation.
When released, trimmer head rotation stops.
WARNING: AVOID INJURY.
Read and understand the Safety
section before proceeding.
Figure 7
Trimmer Head Engaged
Trimmer Head Disengaged
