CUTTING HEIGHT ADJUSTMENT
Standard Models
To change cutting height, move cutting height
levers one notch at a time on each wheel to
set desired height (Figure 6).
NOTE: Each wheel on mower must be set at
the same height for a level cut.
Swivel Wheel Models
To change front wheel cutting height, insert
height adjuster pin into the holes that match
the desired cutting height and fasten with key
ring (Figure 7).
To change rear wheel cutting height, move
cutting height levers one notch at a time to set
the desired cutting height.
DANGER: Avoid injury from rotating
blade.
ALWAYS shut off engine before
adjusting cutting height.
CAUTION: On self-propelled
models, both rear wheels must be
set at same height or traction drive
may not work properly.
Cutting Height Settings Chart
Notch Cut grass length
LOW 1" (25 mm)
2 1-3/8" (35 mm)
3 1-3/4" (45 mm)
4 2-1/4" (57 mm)
5 2-3/4" (70 mm)
HIGH 3-1/4" (83 mm)

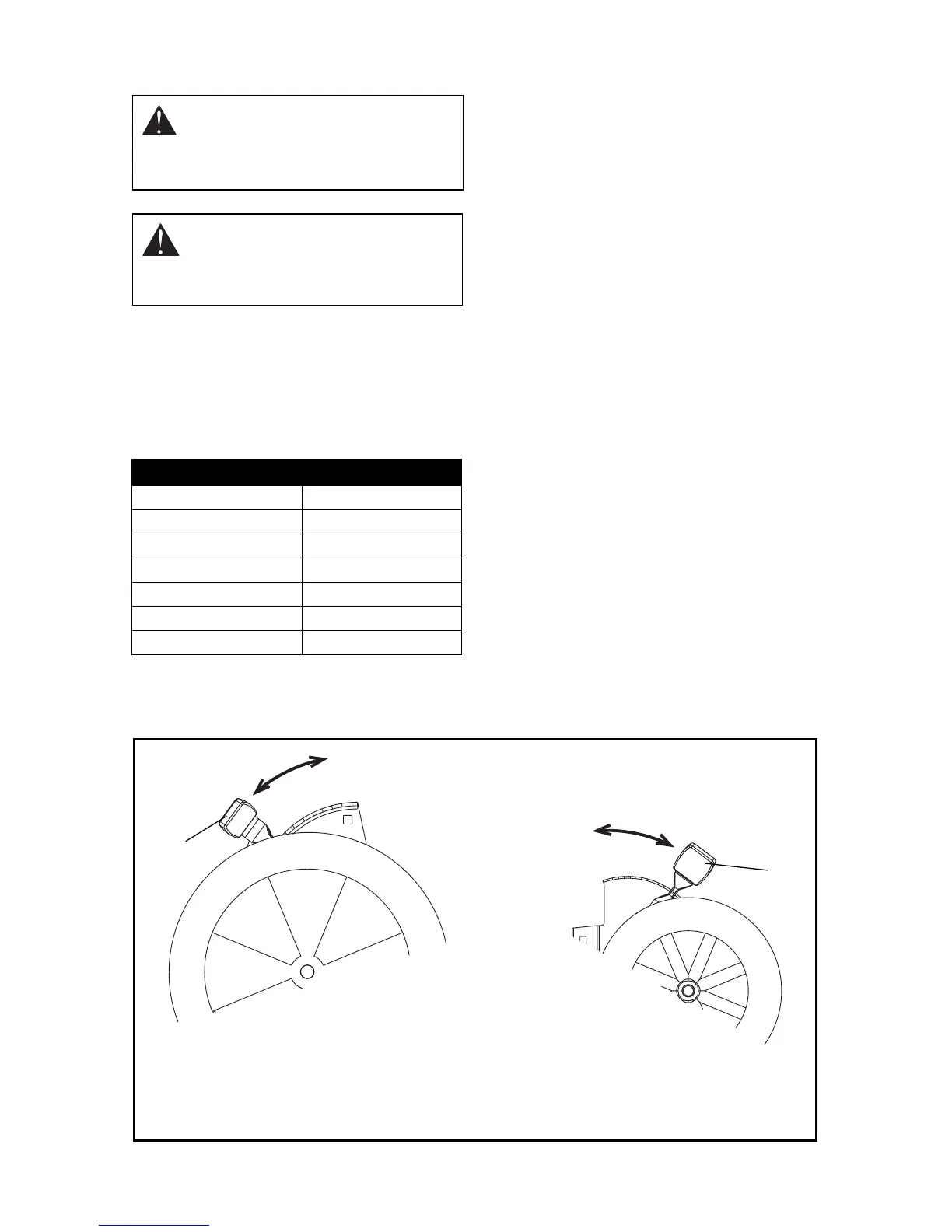

1. Cutting Height Lever
Rear Front
HighLow
LowHigh
Figure 6
1
1
OM0165
