GB - 9

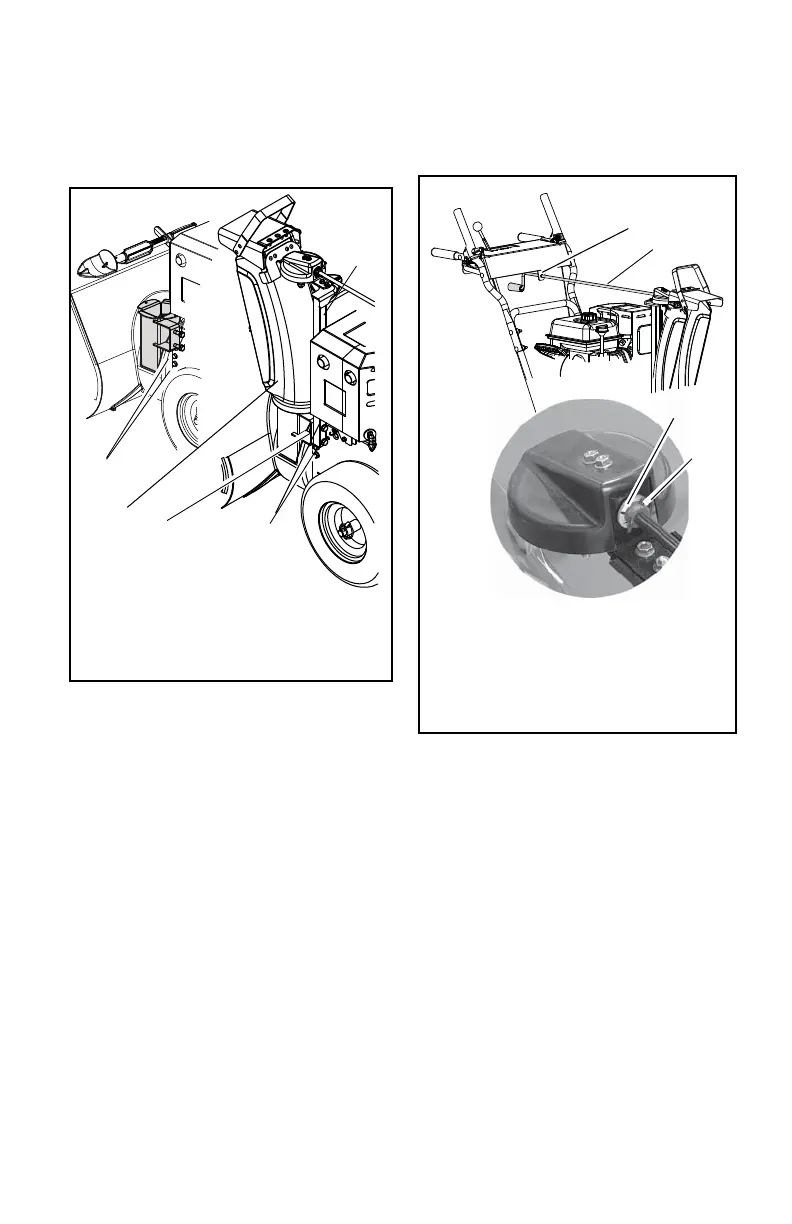

Install Discharge Chute (Figure 5)
1. Remove mounting hardware from the
bottom of the chute pedestal.
2. Install discharge chute over opening in
the auger housing and secure pedestal
to auger housing with hardware
removed in step 1.
Install Discharge Chute Crank
(Figure 6)
1. Slide chute crank through the support
bracket.
2. Connect the chute crank to the pinion
gear on chute with spring clip pin.
Figure 5
3
1
3
2
OS8030
1. Mounting Hardware
2. Discharge Chute
3. Chute Pedestal
1
Figure 6
1. Chute Crank
2. Support Bracket
3. Pinion Gear
4. Spring Clip Pin
1
2
3
4
OS8025

Ariens Sno-tek 24 Specifications

General

Clearing Width	24 inches
Engine Displacement	208 cc
Stage Type	Two-stage
Fuel Type	Gasoline
Intake Height	20 inches
Number of Speeds	6 forward, 2 reverse
Chute Material	Polymer
Impeller Diameter	12 inches
Transmission	Disc-O-Matic
Fuel Tank Capacity	2.9 quarts
Chute Control	Manual
Skid Shoes	Adjustable
Start Type	Recoil
Tire Size	13 x 4 inches
Throw Distance	40 feet
