P1055-INS-RA
•
PAGE 2

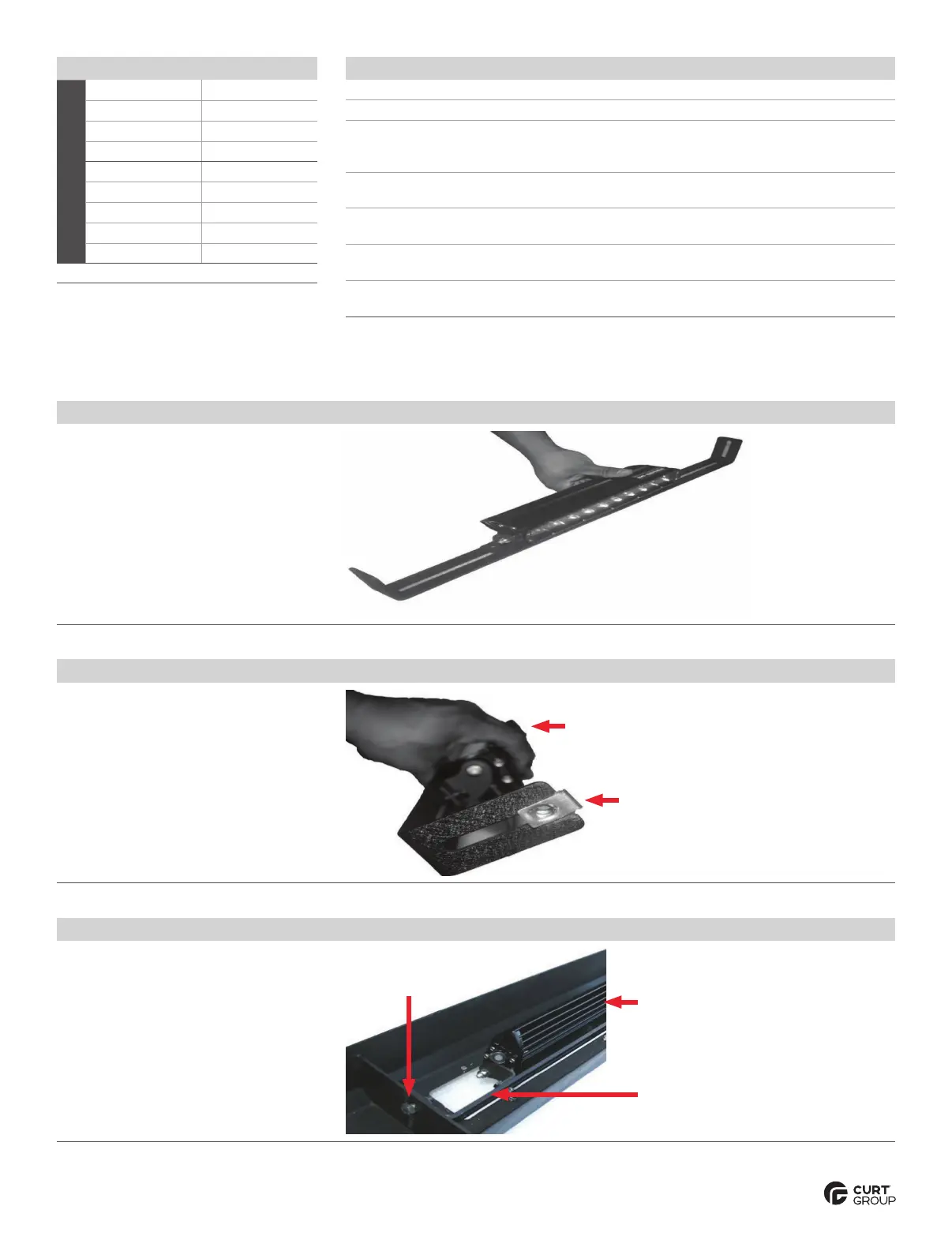

Step 3 - Light Bar Installation
Place the grille guard face down and
set the support flange into the center
flange of the grille guard.
Attach each side of the support flange to the
inner brackets on the center flange with two
M8 hex bolts, flat washers and lock washers.
Snug the hardware,
but do not fully tighten.
Step 1 - Light Bar Installation
Select an LED light (sold separately), mounting
hardware and brackets. Attach the hardware to
the support flange.
Note: LED manufactures may have different
mounting styles or brackets. Once the
mounting options are determined, attach it to
the support flange.
Step 2 - Light Bar Installation
With the LED light attached to
the support flange, place the two
M8 nut clips into the slotted holes
on either side of the support flange.
Torque Specifications
Metric
M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
SAE
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the last page of this manual for
warranty and product registration information.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
If you are not installing a light bar, proceed to page 3
M8 clip-nut attached,
one per side
LED light
M8 fastener
Support flange
