Ariston ALTEAS ONE Net Series

/ 23
INSTALLATION

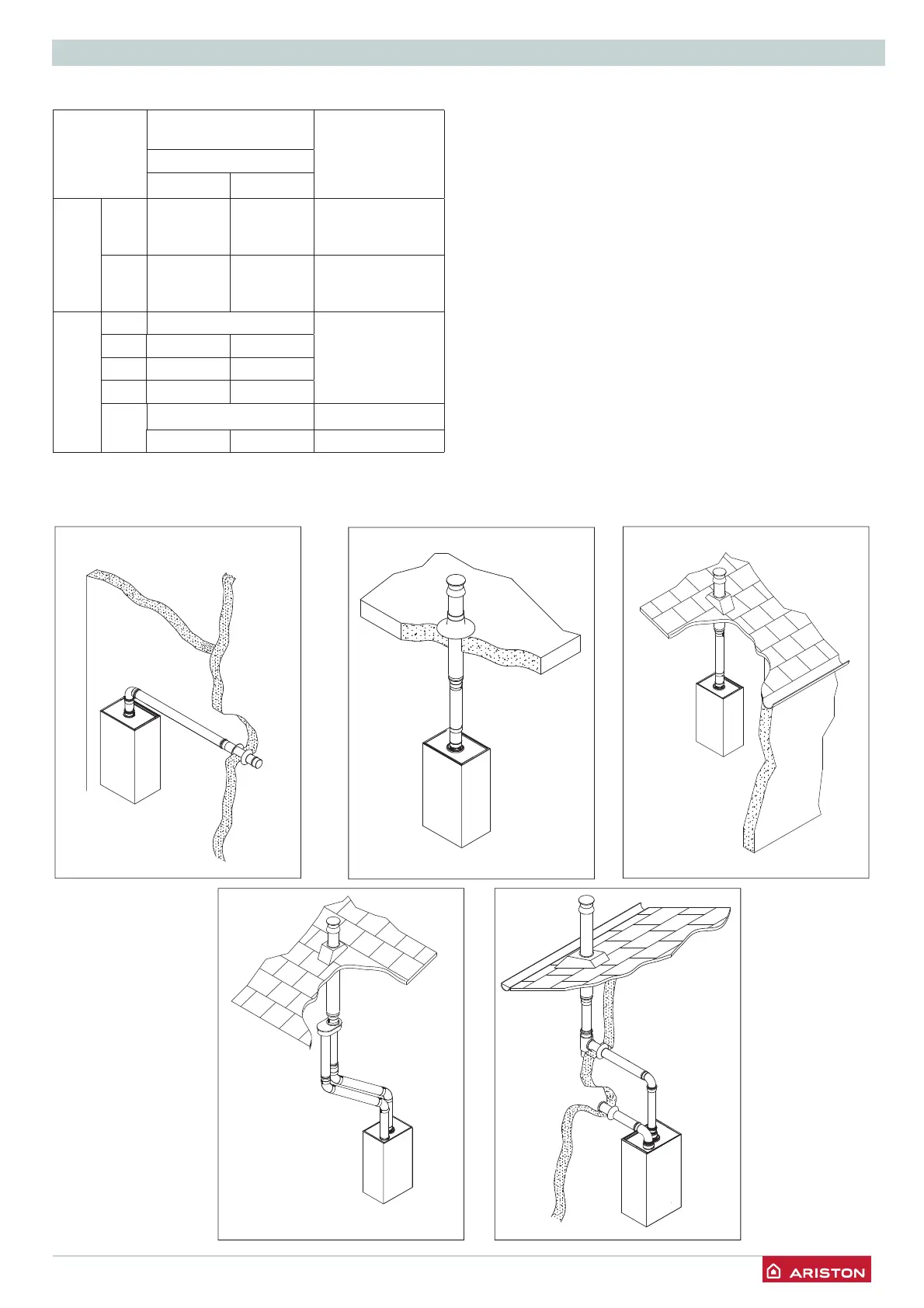

Table of fl ue gas exhaust duct lengths
S1 = Air intake S2 = Flue gas exhaust
S1 = S2 - Air intake and fl ue gas exhaust equal lengths
S1 + S2 - Air intake and fl ue gas exhaust unequal lengths
TYPE C13
TYPE C33 TYPE C53
TYPE C33 TYPE C33
FLUE TYPE
Maximum Extension
Exhaust-air (m)
Diameter of pipe
(mm)
ALTEAS ONE NET
30 35
Coaxial System
C13
C33
C43
7 6 ø 60/100
C13
C33
C43
20 24 ø 80/125
Twin-pipe System
S1 = S2
ø 80/80
C13
30 = 30 23 = 23
C33
40 = 40 30 = 30
C43
30=30 23 = 23
C53
S1 + S2
60 45
ø 80/80
