PRODUCT DESCRIPTION

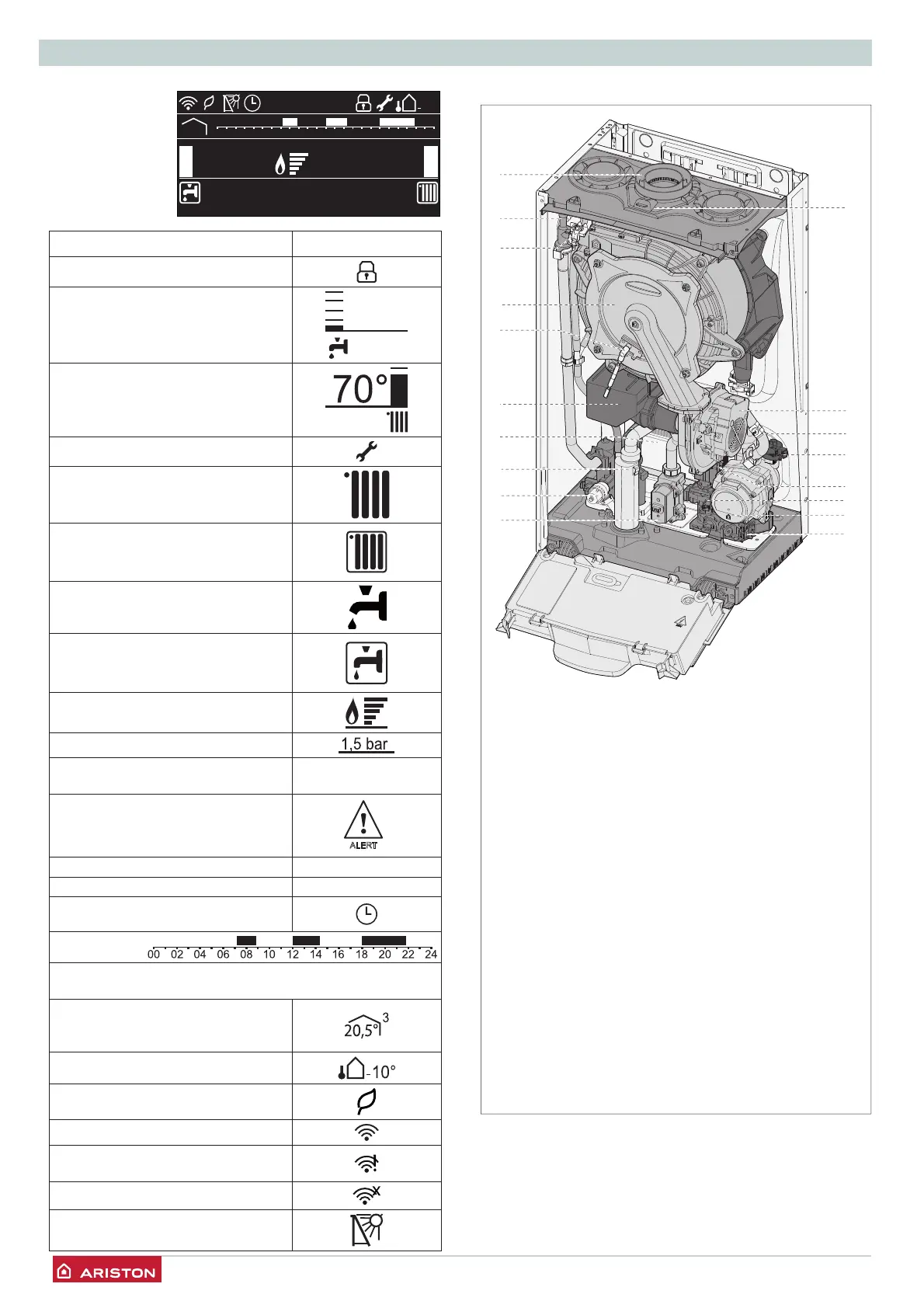

Overall view
DISPLAY
Date and time
26/10/15 12:30
Keylock active
D.H.W. set temperature and indication of
the set temperature level
42°
C.H. set temperature and indication of the
set temperature level
Warning scheduled maintenance
Heating operation set
Heating operation active
D.H.W. operation set
D.H.W. operation active
Flame detected with indication of power
used
Digital pressure gauge (bar)
Scrolling text displaying operation as
information
Central heating
Error wsignals
The display show the code and
description
ALERT
AUTO function activated AUTO
Hot Water Comfort activated COMFORT
CH Schedule programming
(set display: boiler base - see user’s menù)
CH Schedule programming
(set display: boiler complete - see user’s menù)
Internal temperature displayed for
set zone. (with bus device connected
- optional)
External temperature displayed
ECO mode
WIFI active
WIFI connected to the local network,
but without access to the server
WIFI not confi gured
Solar temperature probe connected -
option
26/10/15
1,5 bar
AUTO
Riscaldamento attivo
COMFORT
12:30
60° 82°
10°
20,5°
3
00 02 04 06 08 10 12 14 16 18 20 22 24
1. Flue connector
2. Air relief valve
3. C.H. Flow temperature probe
4. Main heat exchanger
5. Detection Electrode
6. Silencer
7. Secondary heat exchanger
8 Condensate trap
9. C.H. pressure relief valve
10. Gas valve
12. C.H. circuit fi lter
13. Modulating circulation Pump with air release
valve
14. D.H.W. Flow switch
15. Diverter valve
16. Water pressure sensor
17. C.H. Return temperature probe
18. Modulating Fan
20. Combustion Analysis Test Point
1
2
5
6
8
9
10
12
13
14
15
16
17
20
18
4
7
3

Ariston ALTEAS ONE Net Series Specifications

General

Brand	Ariston
Model	ALTEAS ONE Net Series
Category	Boiler
Language	English
