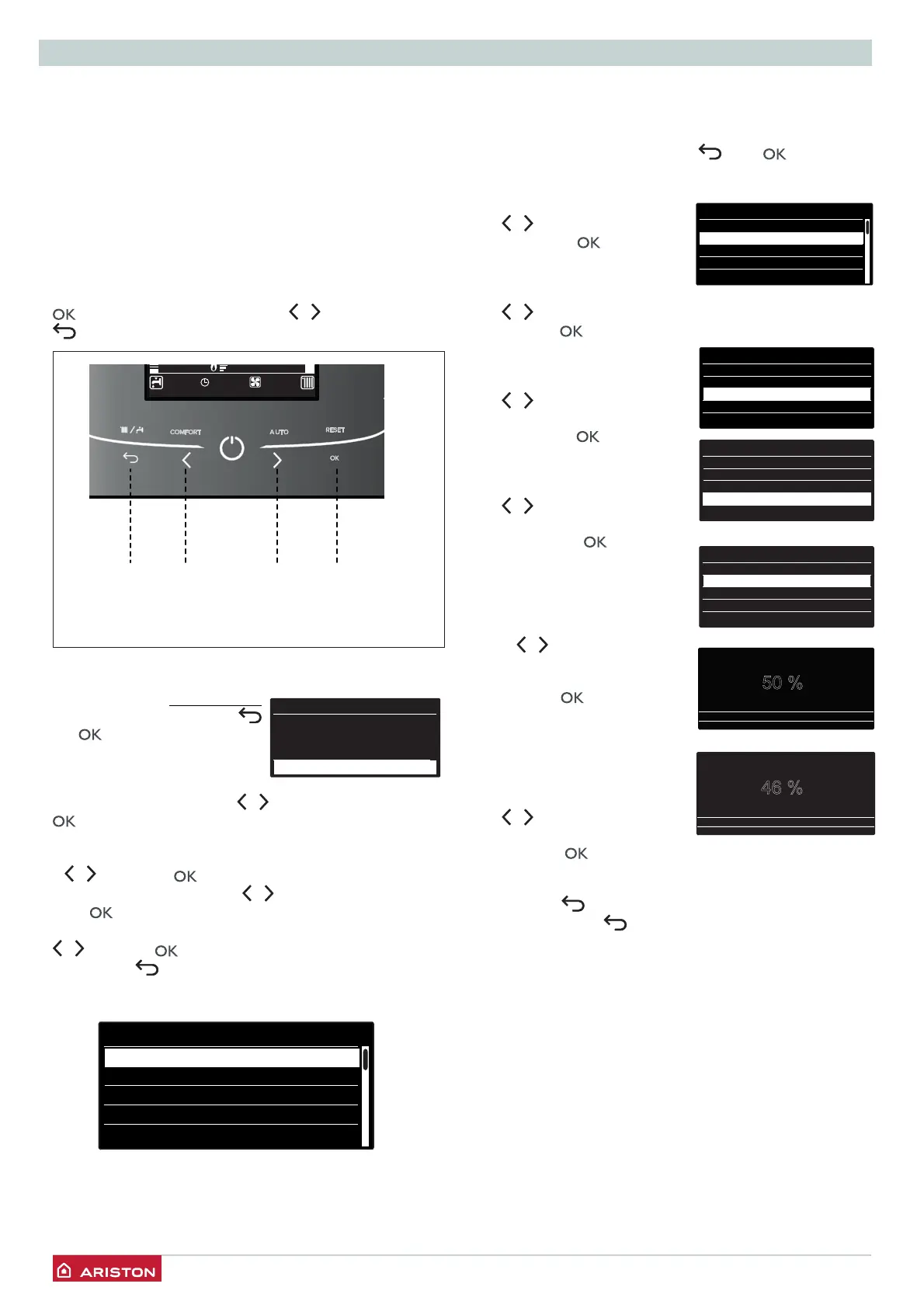

TECHNICAL AREA
For accessing the Technical Area
simultaneously press the ESC
and buttons for 5 seconds; the
display will visualise the request
for entering the technical code.
Press the programming key b to select 234 and press the
button .
To move within the Technical Area,
press the programming key
b
and press button to access the selected window.
Press the programming key b to select a parameter and
press button to access it.
To modify the value of a parameter,
press the programming key b
and press button to store the value.
Use the ESC
button to exit a parameter without storing the
modifi cation and for returning to the normal viewing mode.
TECHNICAL AREA - reserved for qualifi ed technician
Accessing the Technical Area allows for setting/confi guring the
device according to the specifi c requirements of every installation
procedure.
It also provides important information relating to the effi cient
operation of the boiler.
The Technical Area comprises various display windows that allow
for directly accessing the parameters Intervening in each single
product installation/confi guration phase.
The parameters relating to each single menu are listed in the
following pages.
The various parameters can be accessed and modifi ed using the
button , the programming Keys b and the ESC button
(see picture below).
a. ESC button (Back)
b. Programming keys
c. OK button
1,5 bar
CASCADE AUTO
Central Heating
COMFORT
40 70
ab b c
Insert technical code
222
Insert code
Save
Complete Menu
Configuration Wizard
Service
Faults
Technical area
Language, date and time
Example:
Modifi cation of parameter
2.3.1 Max. Adjustable Central Heating Power
Proceed as follows:
1. Simultaneously press the ESC
and buttons for 5
seconds; the display will visualise the request for entering the
technical code.
2.
Press the programming key b
and select code 234.
3. Press the button; the
display will visualise the
available windows.
4.
Press the programming key b
to select the Complete Menu.
5. Press the button to access;
the display will visualise the
available menus.
6.
Press the programming key b
to select Menu 2 - Boiler
parameters.
7. Press the button. The
display will visualise the
available sub-menus.
8.
Press the programming key b
to select 2.3 - Central
heating 1.
9. Press the button to
access.
The display will visualise the
parameters relative to sub-
menu 2.3.
10.
Press the programming key
b
to select parameter
2.3.1 - Max. C.H. Adjustable.
11. Press the button to access
the parameter.
The display will visualise the
value of the parameter (50%)
in addition to the minimum
and maximum values allowed.
12.
Press the programming key b
to select the new value,
e.g. 46%.
13. Press the button to store
the modifi cation.
(To exit the parameter without storing the modifi cation, press
the ESC
button).
14. Press the ESC
button to return to the normal viewing
mode.
1 <Not Available>
2 Boiler Parameters
3 <Not Available>
4 Zone1 Parameters
Menu
0 Network
2.1 Free parameters
2.2 Settings
2.4 Central Heating-2
2 Boiler Parameters
2.0 General
2.3 Central Heating-1
2.3.1 Max CH Adjustable 50
2.3.2 <Not Available>
2.3.4 <Not Available>
2.3 Central Heating-1
2.3.0 Max CH Absolute 62
2.3.3 <Not Available>
50 %
Maximum value 100%
Minimum value 0%
2.3.1 Max CH Adjustable
46 %
100%
0%
2.3.1 Max CH Adjustable
Maximum value
Minimum value
Configuration Wizard
Service
Faults
Technical area
Language, date and time
Complete Menu
