- If a remote time clock is to be fitted, using a volt-free switching time clock, remove the link wire and connect the
switching wires from the time clock following points above (see also Diagram B Fig. 32).
- If using an external time clock and room thermostat, remove the link wire and connect in series as above (see also
Diagram C Fig. 32).
Live and Neutral connections to operate the clock motor must be taken from a suitable source.
Connector 11 (Fig. 31), is provided for connecting an optional integral time clock or programmer, for fitting instructions, please
refer to those provided with the clock or page 8 of this manual.
13. Electrical connections (continued)

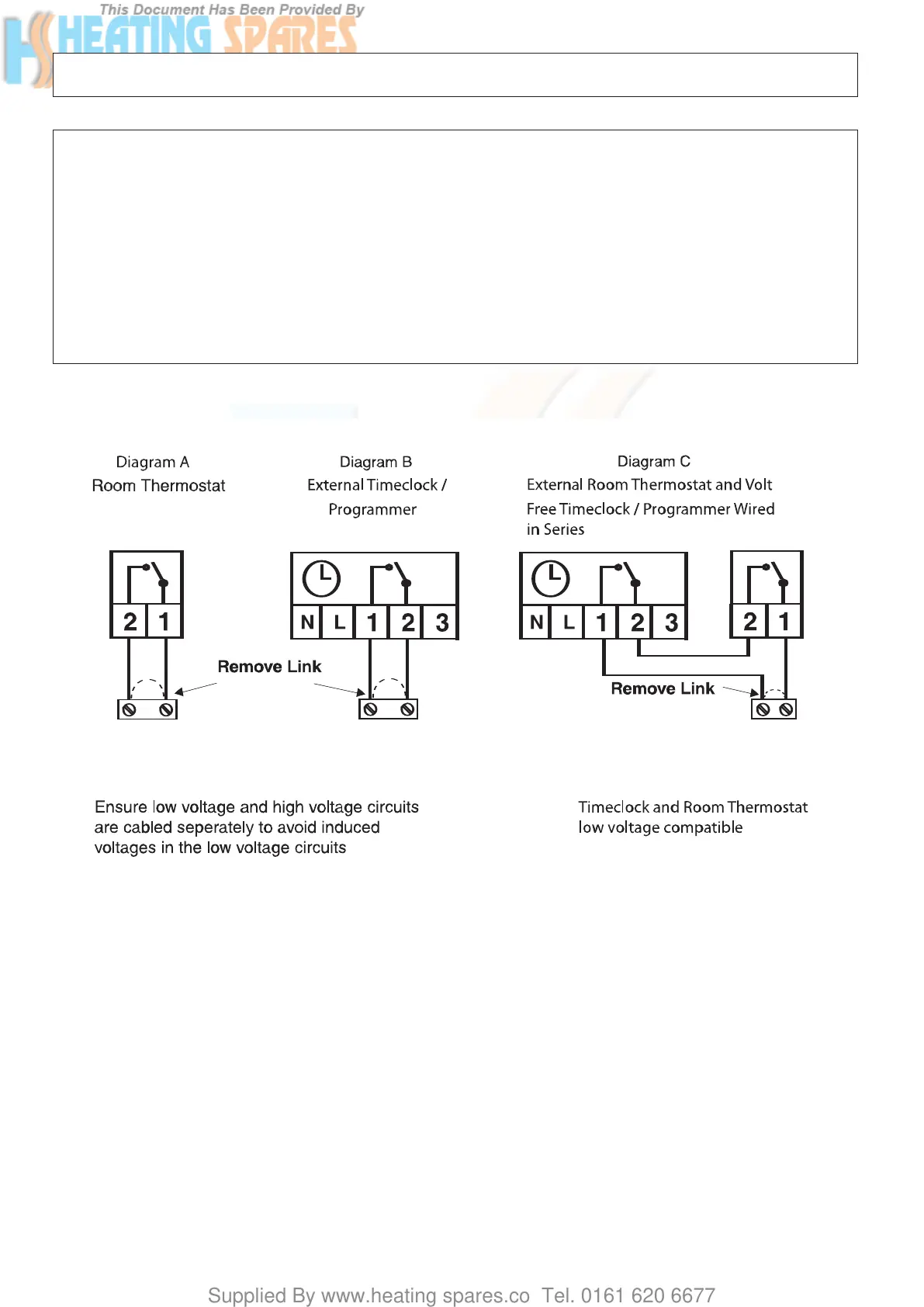

Fig. 32
CONNECTOR 12 ON
PCB, SEE FIG. 31
CONNECTOR 12 ON
PCB, SEE FIG. 31
CONNECTOR 12 ON
PCB, SEE FIG. 31
